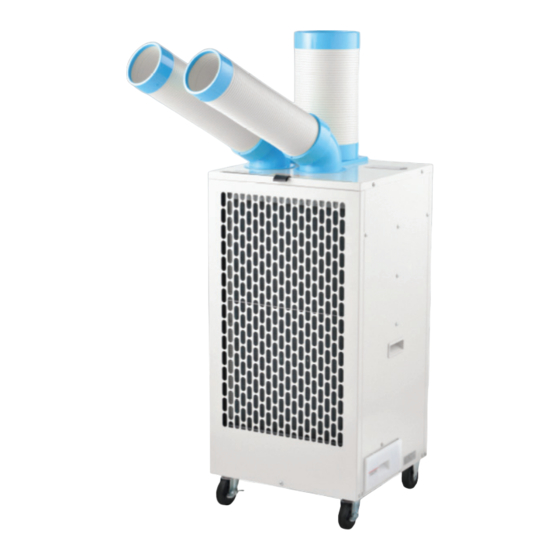

- Page 1 USER MANUAL SAC-3000AS FOR MORE INFO...
- Page 2 THANK YOU FOR PURCHASING THE KOOLZONE MOBILE SPOT COOLER. PLEASE READ THE INSTRUCTIONS BEFORE USING. KEEP THESE INSTRUCTIONS FOR REFERENCE. KOOLZONE...
- Page 3 TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ································ PAGE 4,5 2. SPECIFICATIONS ············································ PAGE 6 3. ACCESSORIES ················································ PAGE 6 4. PARTS OF THE MACHINE ································ PAGE 7 5. INSTALLATION ··············································· PAGE 7 6. OPERATING INSTRUCTION ····························· PAGE 9 7. MAINTENANCE AND INSPECTION ··············· PAGE 13 8.
-
Page 4: Safety Precautions
1. SAFETY PRECAUTIONS Please read “Safety Precautions” carefully before operating the unit to reduce the risk of injury or damage. It may cause personal injury, fire, or other property damage STOP STOP if you neglect this mark and operate in the wrong way. This mark stands for under any circumstances this unit should FORBIDDEN not be used. - Page 5 Do not change or modify the unit. It could cause damage to the unit or property and will void STOP warranty. Keep unit away from excessive heat or fire. It may cause damage to the unit. Use only grounded outlet. The unit operates in the temperature range from 64°F to 104°F, otherwise it may cause the unit to slow the air flow or shutdown.
-
Page 6: Specifications
2. SPECIFICATIONS POWER / FREQUENCY Single phase 115 V / 60 Hz High LOAD CURRENT 10.8 A 10.4 A CONSUMPTION POWER 1210 W 1170 W COOLING CAPACITY 10,236 BTU COMPRESSOR Fully Closed Type Rotary REFRIGERANT R410 A REFRIGERANT (RATED CHARGE) 800 g SIZE 18.5”... -
Page 7: Parts Of The Machine
4. PARTS OF THE MACHINE Cooling Duct Heat Exust Duct Curved Duct Control Panel Service Cover Caster Wheel Drain Tank (5L) 5. INSTALLATION • INSTALLING THE CURVED DUCT Make sure the notch part (molded arrow on duct) lines up with the slotted black line in the cold air exit. - Page 8 • INSTALLING THE HEAT EXHAUST DUCT AND SOCKET The heat exhaust duct socket uses 4 ST4×12 bolts to fix the heat vent. Heat Exhaust Duct Heat Exhaust Duct Socket • POWER SUPPLY CONNECTION Please use a dedicated power outlet. Please use a grounded circuit breaker with a 15A capacity. NOTIFICATION •...
- Page 9 OPERATING INSTRUCTION OPERATION SWITCH INFORMATION SWING SWITCH HIGH POWER • To power on, turn on the switch at the top of the unit to low or high cooling for operation. There are 2 options: 1. Low Cooling - Sends a flow of cold air at low fan speed. 2.
- Page 10 • ADJUSTING THE AIR FLOW DIRECTION. Please adjust the duct to get the desired cooling and heating direction. The cooling duct adjustment range is 200° horizontal and 50° vertical. The heat exhaust duct adjustment range is 40°. NOTIFICATION Please adjust the angle of the cooling duct and heating exhaust duct before using the unit. Hold the curved duct and bend the cooling duct for angle adjustment.
- Page 11 • CONDENSATION TANK. The dehumidified water will flow into condensation tank. The capacity of the tank is 5L. The condensation tank can be taken out manually from the unit. NOTIFICATION Please check the amount of the water periodically. Drain the water before moving the unit. Empty the water immediately when the water gets to the red line.
-
Page 12: Maintenance And Inspection
7. MAINTENANCE AND INSPECTION NOTIFICATION Please clean the filter regularly. • When cleaning filter with heavy use, consider vacumming filter before rinsing. Rinse with water and dry thoroughly before reuse. • When cleaning the surface of the unit, do not use abrasive materials or chemicals which could damage the unit surface. -
Page 13: Troubleshooting
8. TROUBLESHOOTING PROBLEM CAUSE SOLUTION • Insert the plug into the wall outlet. • The power plug is loose or • Check breaker on main panel and reset. NOT RUNNING disconnected. • Ask the technical service department • The breaker switch has turned off. for assistance. - Page 14 KOOLZONE MANUFACTURER’S RECOMMENDATIONS 1. USE A DEDICATED OUTLET. DO NOT SHARE AN OUTLET WITH OTHER DEVICES. SHARING AN OUTLET MAY CAUSE A POWER OUTAGE. 2. IF USING AN EXTENSION CORD, A 12 AWG IS RECOMMENDED. 3. DO NOT BLOCK THE HEAT EXHAUST DUCT. BLOCKING THE HEAT EXHAUST COULD CAUSE THE UNIT TO OVERHEAT AND STOP WORKING PROPERLY.
- Page 15 PLEASE NOTE OPTIMUM OPERATING TEMPERATURE RANGE FOR KOOLZONE MOBILE SPOT A/C COOLER IS FROM 77° - 113° FAHRENHEIT. WHEN USING THIS UNIT ON COOLING MODE, THE AMBIENT TEMPERATURE WILL BE REDUCED BETWEEN 10° - 15° FAHRENHEIT. KOOLZONE...
- Page 16 MAKE LIFE SIMPLE AND MORE CONVENIENT WITH UNINEX SCAN ME CONTACT US FOR PURCHASE OR RENTAL EXCLUSIVELY DISTRIBUTED BY: UNINEX INTERNATIONAL 5780 SMITHWAY STREET COMMERCE, CA 90040 T. 800-864-3288 / 323-890-9246 / F. 323-890-9249 MANUFACTURE: NAKATOMI CO.,LTD. 6445-2, TAKAI, TAKAYAMA, KAMITAKAI, NAGANO, JAPAN...
