4057050/4
Automatic or Manually Actuated
PN/M
automatically
actuated
M
manually
actuated

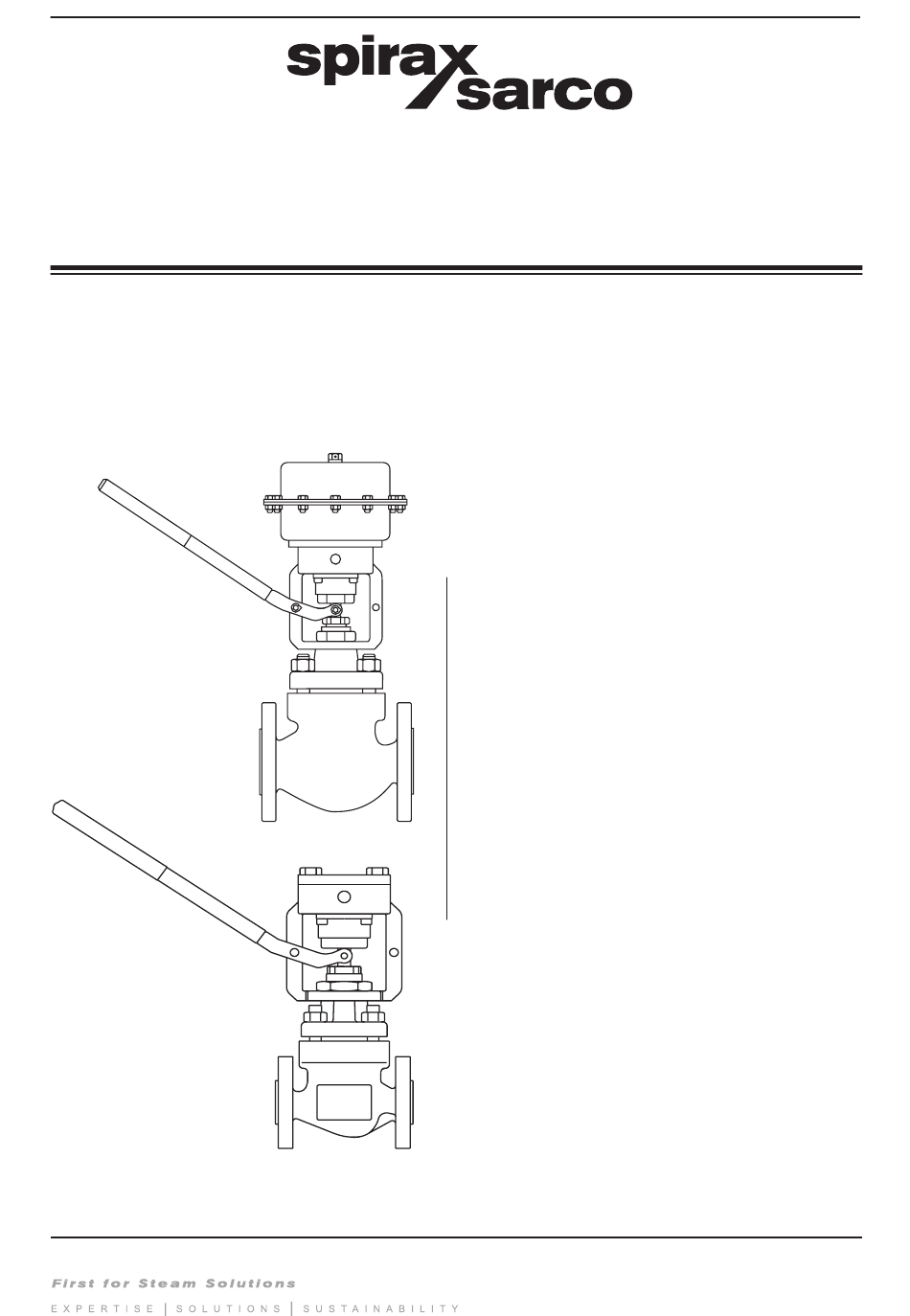

BBV Automatic or Manually Actuated Boiler Blowdown Valves
IM-P405-54 EMM Issue 4
Boiler Blowdown Valves
Installation and Maintenance Instructions
DN15 - DN50
BBV
1. Safety information
2. General product information
3. Installation & commissioning
4. Maintenance of the actuator
5. Maintenance of the valve
6. Spare parts
IM-P405-54
EMM Issue 4
© Copyright 2021
1
Printed in France
