Aero EVO-R Manual page 93

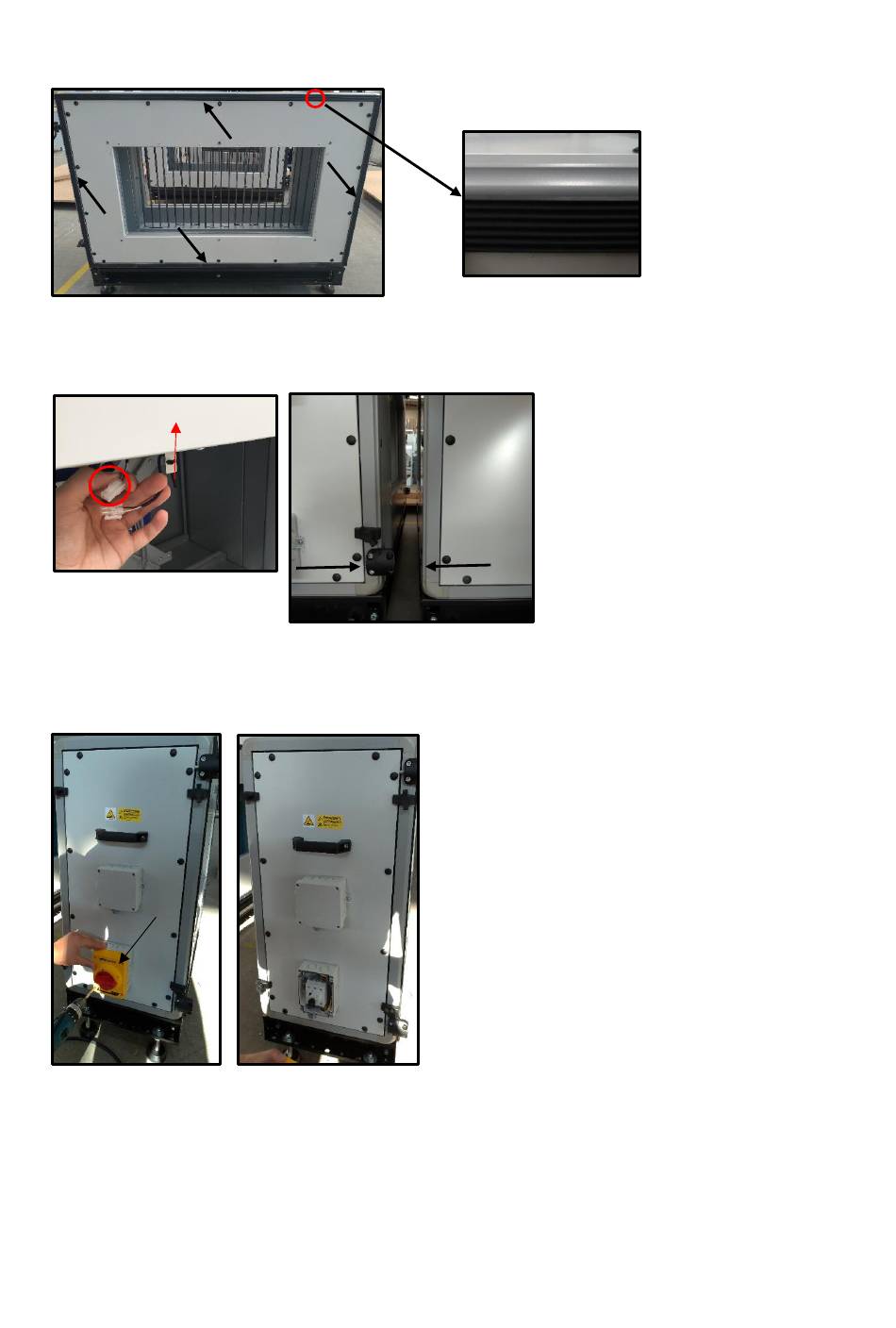

1. Apply sealing strip to the surface where the module will be connected with the device (Fig. 71)
Fig. 71
2. Remove the temperature sensor from the unit outdoor line. Bring the module and device closer together and tighten the bolt.
(Fig. 72)
Unit outdoor line temperature sensor
Fig. 72
3. Open the main switch cover. Check the thickness of the cable that you will use for power connection. (refer to chapter 8 for
cable thickness and connections) (Fig. 73)
Fig. 73
93
