Assembly area

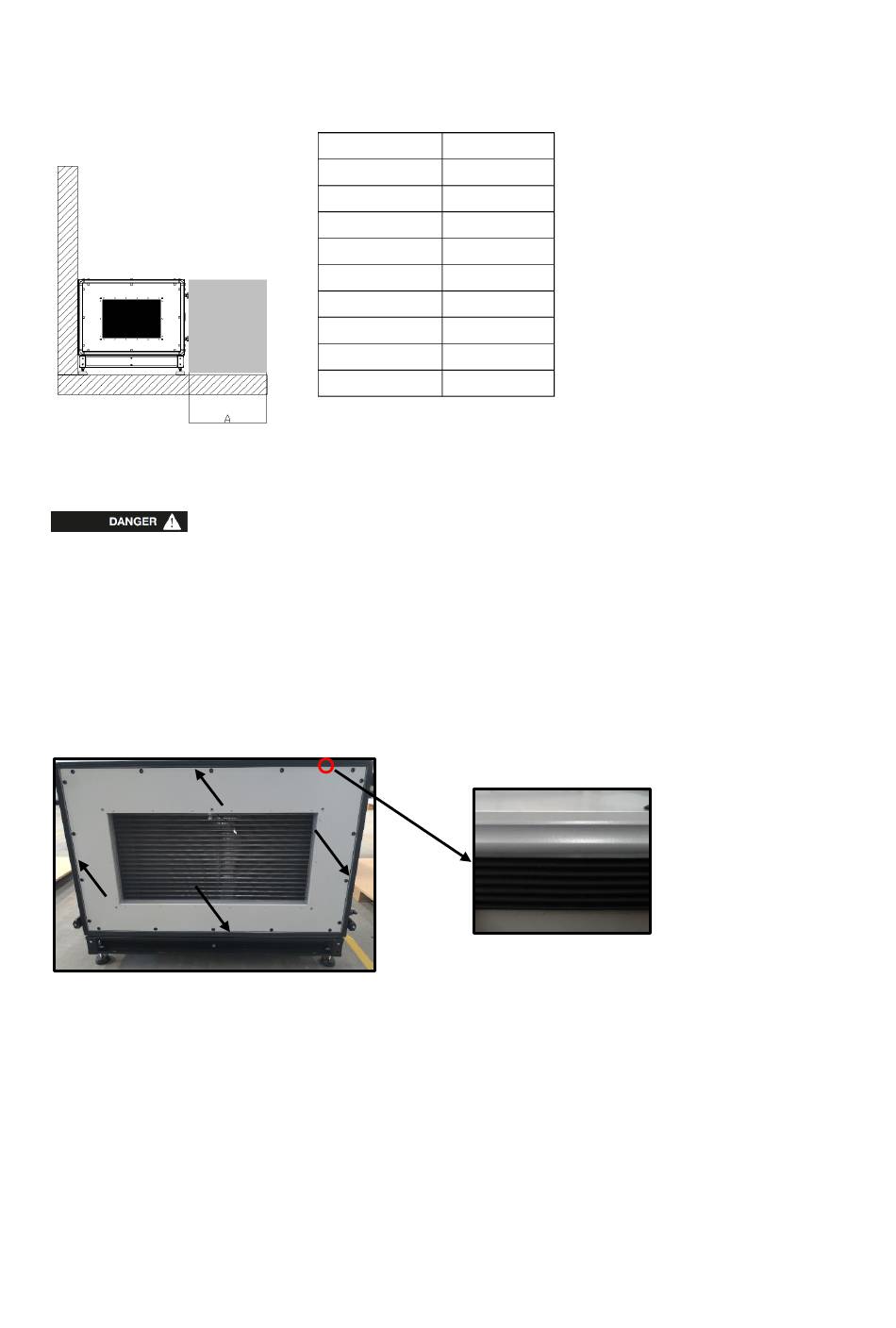

Observe the following criteria during installation to ensure that the module service is comfortable. (Fig.107)
A is the minimum distance for servicing the cooling coil.
7.8.2 Installation of cooling coil water
RISK OF INJURY! Make sure that the power connection is disconnected, and fan is not moving
before doing any work on the device
- Cooling coil inlet - outlet pipes should be insulated.
- Refer to the electrical diagrams for cooling coil signal connections.
- Danger of electric shock; moving parts (fan) and hot surfaces.
After install the accessory, refer to chapter 4.1 for the commissioning.
1. Apply sealing strip to the surface where the module will be connected with the device (Fig. 108)
MODEL
EVO-15R
EVO-20R
EVO-30R
EVO-50R
EVO-60R
EVO-80R
EVO-95R
EVO-120R
EVO-150R
Fig. 107
Fig. 108
A (mm)
960
1060
1170
1440
1560
1810
1910
2060
2310
108
