Installation Of Outdoor Damper - Aero EVO-R Manual

A (mm)
EVO-15R 410
EVO-20R 530
EVO-30R 640
EVO-50R 915
EVO-60R 915
EVO-80R 1115
EVO-95R 1260
EVO-120R 1535
EVO-150R 1660
Weight (kg)
EVO-15R 3
4
EVO-20R
5
EVO-30R
6,6
EVO-50R
6,6
EVO-60R
7,8
EVO-80R
8,6
EVO-95R
10
EVO-120R
13
EVO-150R

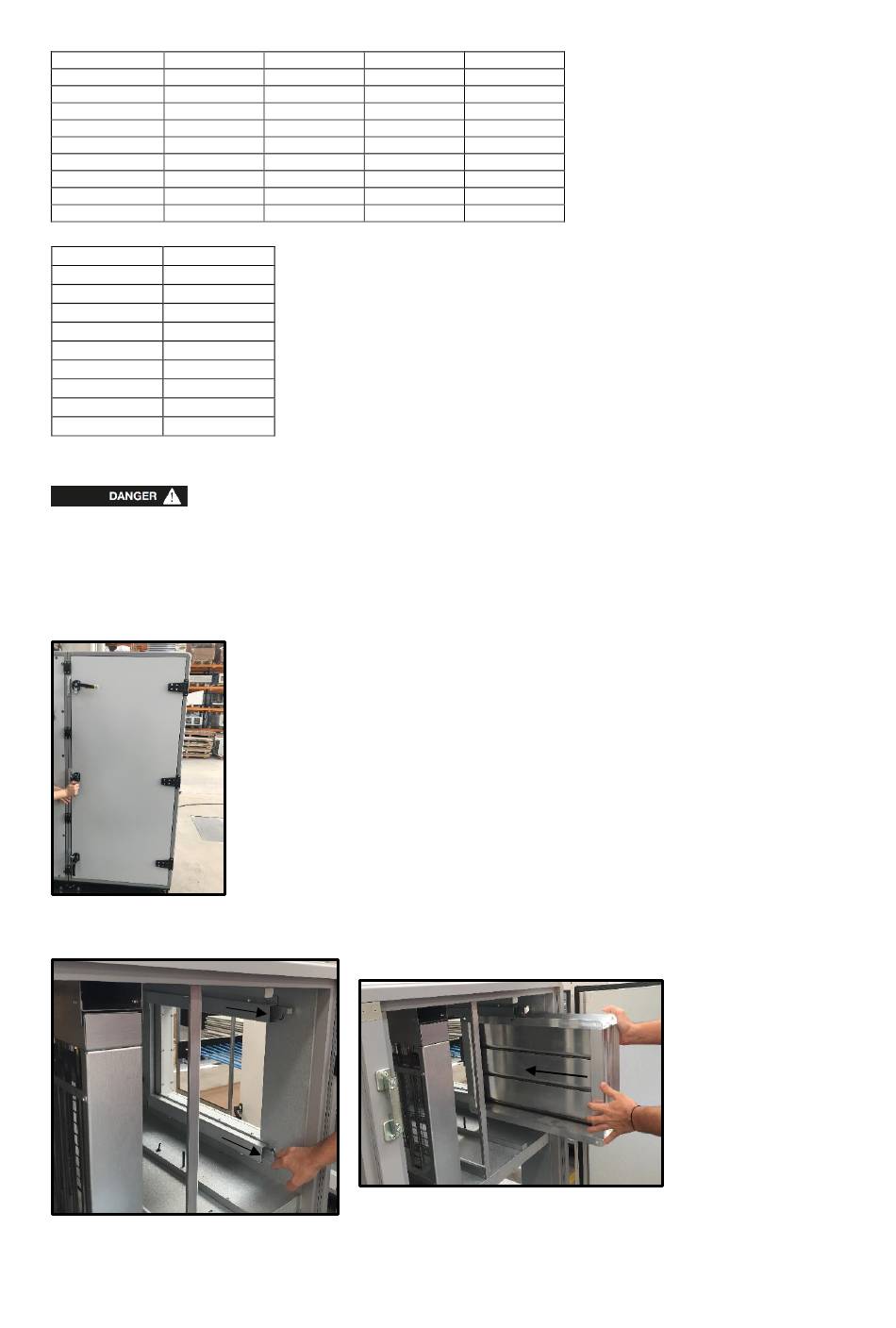

7.6.2 Installation of outdoor damper

Make sure that the power connection is disconnected before doing any work on the device.
- Before the damper installation, remove the filter and fan.
- Install the damper before positioning the unit for easy access from both service side.
After install the accessory, refer to chapter 4.1 for the commissioning.
1. Unlock the lock and turn the handles counter clock-wise direction for opening doors. (Fig. 89)
Fig. 89
2. Pull lock-bars and place the damper (Fig. 90)
B (mm) C (mm)
360 120
360 120
460 120
460 120
460 120
460 120
460 120
560 120
760 120
Fig. 90
100
D (mm)
480
600
710
985
985
1185
1330
1605
1735
