7.12 E-box heater

7.12.1 Functional description of e-box heater

E-box heater prevent the temperature of the e-box from reaching freezing conditions in extreme cold climates.
The heater has its own thermostat. E-box
Ambient Temperature (°C)
Ambient Temperature with
e-box heater (°C)

7.12.2 Installation of e-box heater

RISK OF INJURY! Make sure that the power connection is disconnected, and fan is not moving
before doing any work on the device
Danger of electric shock!
After install the accessory, refer to chapter 4.1 for the commissioning.
1. Open the e-box cover

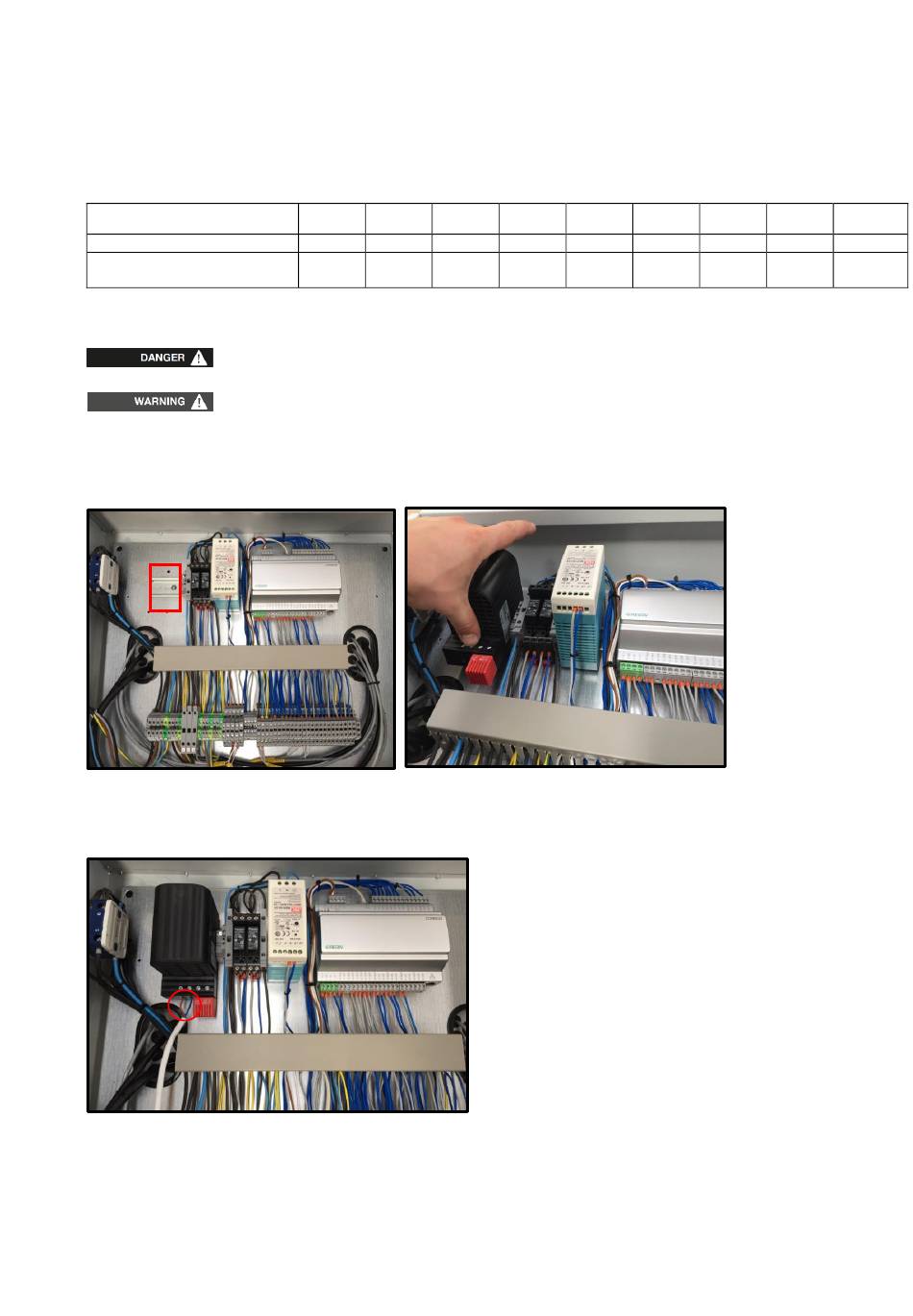

2. Mount the e-box heater on the rail shown in the illustration (Fig. 144)
3. Connect the e-box heater cable with the heater (Fig. 145)
Fig. 145
heater is activated when the e-box temperature falls below 0°C.
EVO- EVO- EVO-
15R 20R 30R
0 / 50 0 / 50 0 / 50
-20 / 50 -20 / 40 -20 / 50
Fig. 144
122
EVO- EVO- EVO-
50R 60R 80R
0 / 50 0 / 50 0 / 50
-20 / 50 -20 / 40 -20 / 50
EVO- EVO- EVO-
95R 120R 150R
0 / 50 0 / 50 0 / 50
-20 / 50 -20 / 40 -20 / 40
