Henri Studio 5231F21 Setting Up

SETTING UP THE

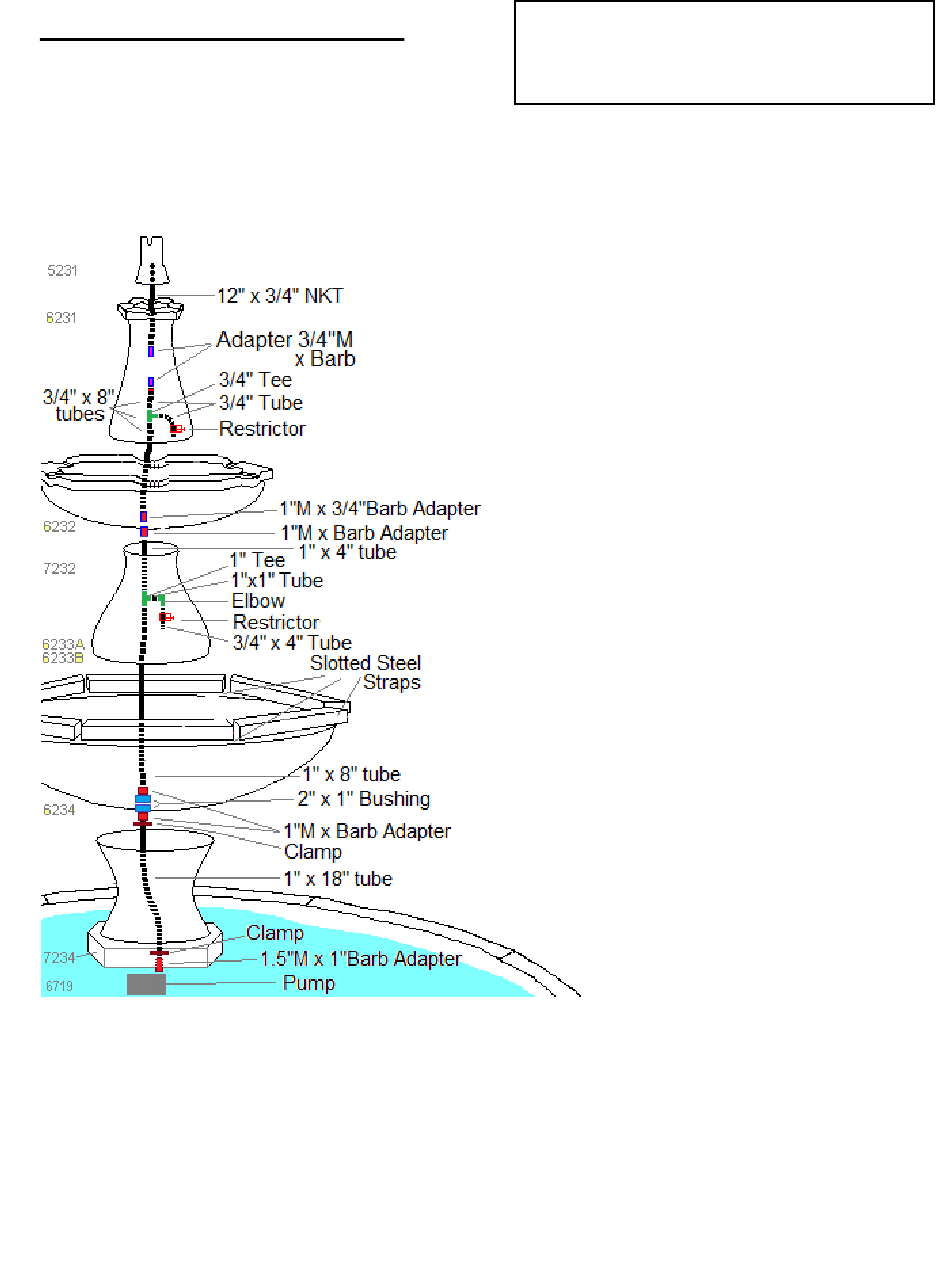

1) Place 6719 Fiberglass Pool on your prepared
surface.
2) Check the standpipe in the 6719 pool center to make sure it is tight. Place pump in center of pool
and feed power cord through attached standpipe and (using channel area built under pool) out to
desired area outside of pool. Open the slit in the large rubber stopper, place around the power cord
6) Build another tee assembly similar to the one in the bowl below. This time, attach a ¾" x 8"
flexible tube onto each leg of the ¾" Tee. Position and slightly tighten a flow Restrictor over the
tube on the middle leg of the tee. Then push the open end of a tube on a straight leg over the barb
inside the bowl.
5231F21
near the top of the standpipe, close the slit, then press into the pipe to make it
watertight. Insert largest barbed adapter into the pump exhaust. Attached
Make sure to place your fountain on a firm and level
surface which will not settle. Note: Always follow
local electrical codes and use a 110V GFCI protected
outlet. Do not let children climb on fountain.
18" tube and clamp it tight to the adapter.
3) With help, place the 7234 Base in the center of the
fiberglass pool, making sure to pull the tube safely up
through it.
4) Thread the two Bushings into the top and bottom of
the coupling in the 6234 Bowl's floor, then thread a 1"
Barbed Adapter into each of the bushings. Set the
6234 bowl on the base, pushing and clamping
the tube onto the bottom barb as you set it
down. Attach the 8" x 1" clear tube to the barb
inside this bowl. Push the other end of the tube
over the straight leg of the 1" tee. Push the 4"
x 1" tube over the opposing straight leg of the
tee and push the 1" x 1" tube sleeve over the
middle leg of the tee. Insert the Elbow into the
1" tube sleeve and then press the ¾" x 4" long
clear tube over the barbed end of the elbow.
Position a flow Restrictor over the ¾" x 4"
tube and tighten it just enough to stay in place.
(
Later, you can tighten the restrictor further if you
want to adjust down the water flow
5) Set the 7232 Base into the 6234 bowl. Insert
a 1" Barbed Adapter into the bottom of the
6232 Bowl and insert the smaller ¾" Barbed
Adapter into the top side of the same
bowl. Set the 6232 onto the 7232 base,
.)
pressing the open end of the 1"
x 4" tube over the adapter's
barbed underneath.
