Henri Studio 5452F Instruction Notes

Large four seasons column fountain

Advertisement

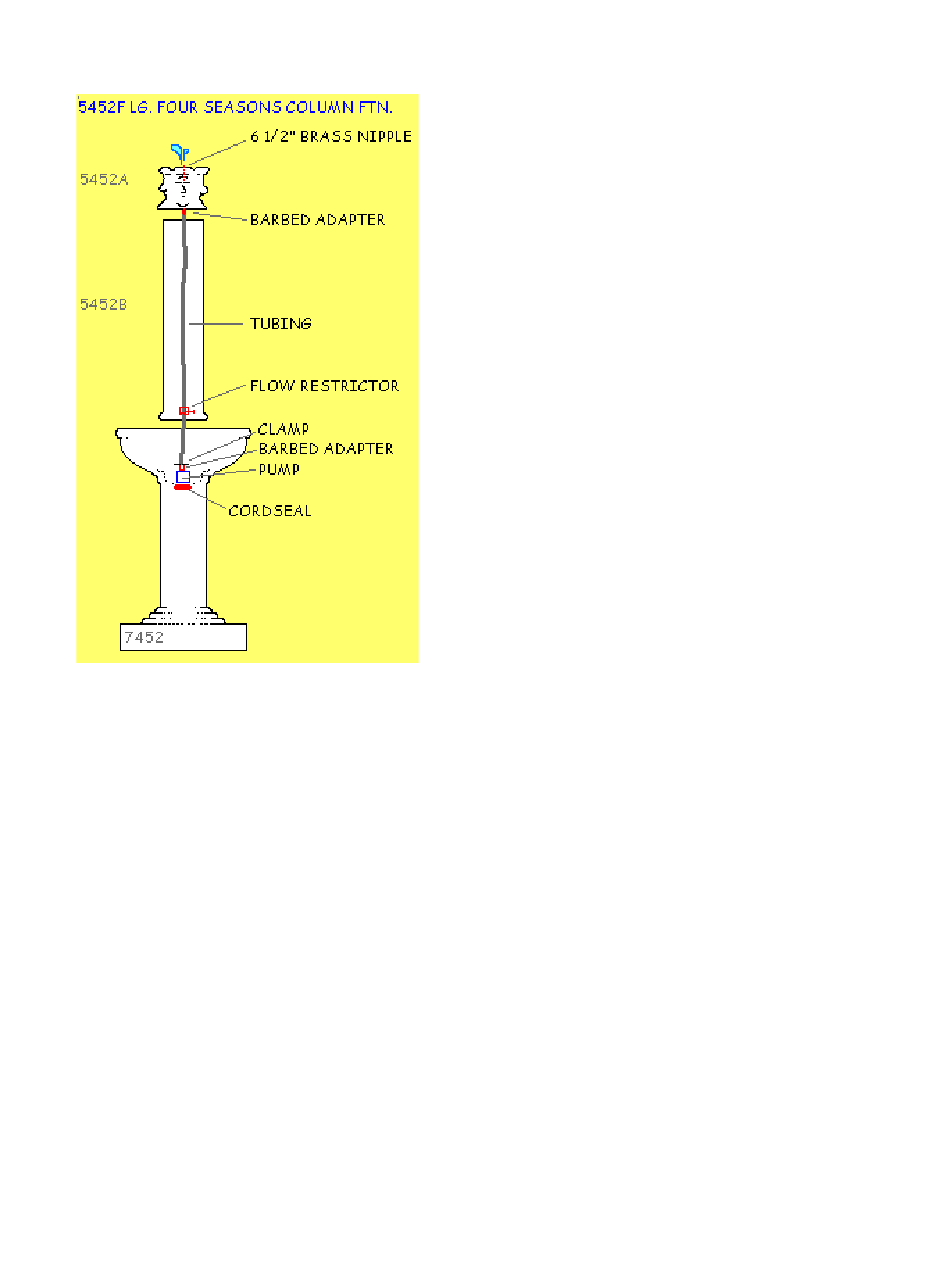

Instruction Notes for 5452F

ASSEMBLY NOTES:

It is advised to have at least two people work together to assemble this fountain.
1) Set the 7452 pedestal/bowl unit in the spot you choose for best viewing. Do not
set it on soft ground. Make sure it is level before proceeding.
2) Using a Phillips head screwdriver, loosen and open up the stainless steel and
rubber cordseal and fit it around the pump cord, about 9" from the pump itself.
The top (wider plate) of the cordseal should be nearer the pump and the bottom
(narrower plate) of the cordseal should be nearer the plug. Screw the cordseal
back together, but do this loosely.
3) From the top, insert the pump cord into the hole in the 7452. Press the cordseal
tightly into the coupling cast into the concrete for it. Reach under the 7452 and
pull out the cord for future connection. Now tighten the cordseal screws to ensure
a water proof seal.
4) Thread a barbed adapter into the pump.
5) Attach one end of the tubing to the pump adapter and secure with the clamp.
6) Install a flow restrictor to the tubing, tightening only enough to hold it in place
about six inches from the pump.
10/23/03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5452F and is the answer not in the manual?

Questions and answers

Summary of Contents for Henri Studio 5452F

  • Page 1 Instruction Notes for 5452F 10/23/03 ASSEMBLY NOTES: It is advised to have at least two people work together to assemble this fountain. 1) Set the 7452 pedestal/bowl unit in the spot you choose for best viewing. Do not set it on soft ground. Make sure it is level before proceeding.
  • Page 2 7) Lift and hold the 5452B column while one person slips the tubing from the wider bottom through the top of the column. Set the column in place while draping or continuing to hold the tubing at the top of the column. 8) Thread another barbed adapter into the bottom of the 5452A finial.
