Henri Studio 4875A Setup Instructions

SET UP INSTRUCTIONS FOR
This fountain is easy to run, but it is a little tricky to
assemble because of the multiple tiers through which a light
cord must pass. For this reason, it is advisable to have the
help of two other people during
installation. In addition, the two
stainless steel square tubes may
have sharp edges. For these, it
is encouraged to wear heavy
gloves.
1) Set your 4875D Basin on your
prepared foundation with the back
opening facing away from your
best viewing angle. If you own a
level, use it now on the top of the
Basin to confirm it is level. If it
is not level, remove the Basin
and re-level your foundation –
then start again.
2) Place the pump in the basin
and thread the (smaller) ¾"male
x ¾"barb adapter into the top of
the pump. Let the power cord sit
in the bottom of the basin for now.
3) The light and its cord need to
be inserted from top down
through several layers of fountain.
Therefore, set all these pieces on
their side, leaning against the
back of the 4875D basin. Make sure to protect each piece from the next with some sort of towel
or padding in between.

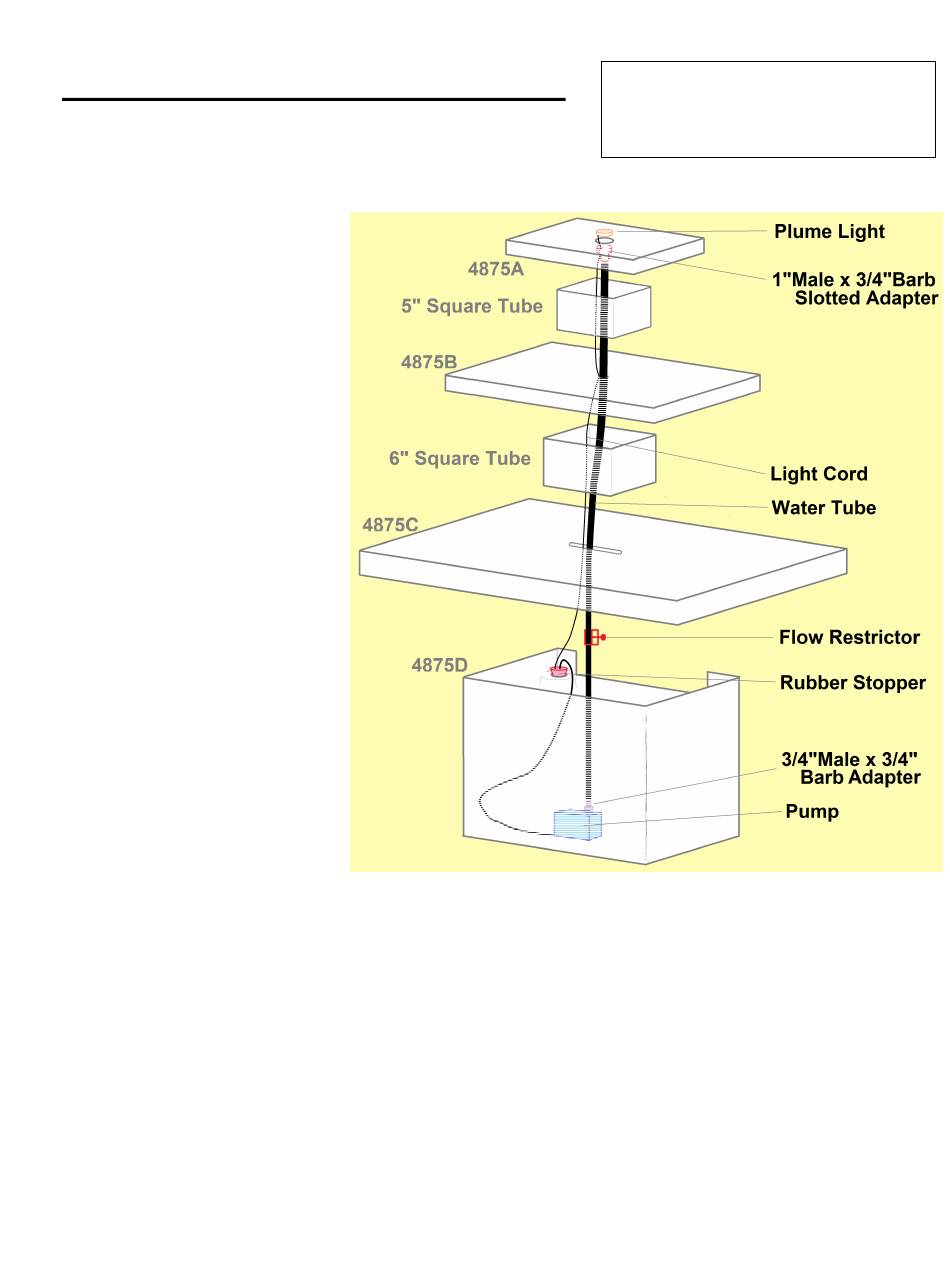

4) Insert the light power cord and light into the top hole of the 4875A Top Plate and "down"
through the 5" Square Tube, the 4875B Middle Plate, the 6" Square Tube, and through the
4875C Large Plate. Install the (larger) 1"Male thread x ¾" Barb slotted adapter beneath the
4875A top plate by pushing the light power cord in that area into the slot in the adapter, then
threading the adapter into the bottom of the 4875A.
5) Push both the pump and light power cords down through the corner hole (as shown above)
and out the lower back hole in the basin – toward your power supply. Leave just a little slack on
the power cords within the fountain. Open the two slots in the rubber stopper, slip the power
4875F4
Make sure to place your fountain on a firm
area which will not settle. Note: Always
follow local electrical codes and use a
110V GFCI protected outlet.
