Henri Studio 4005F3 Setting Up

SETTING UP THE

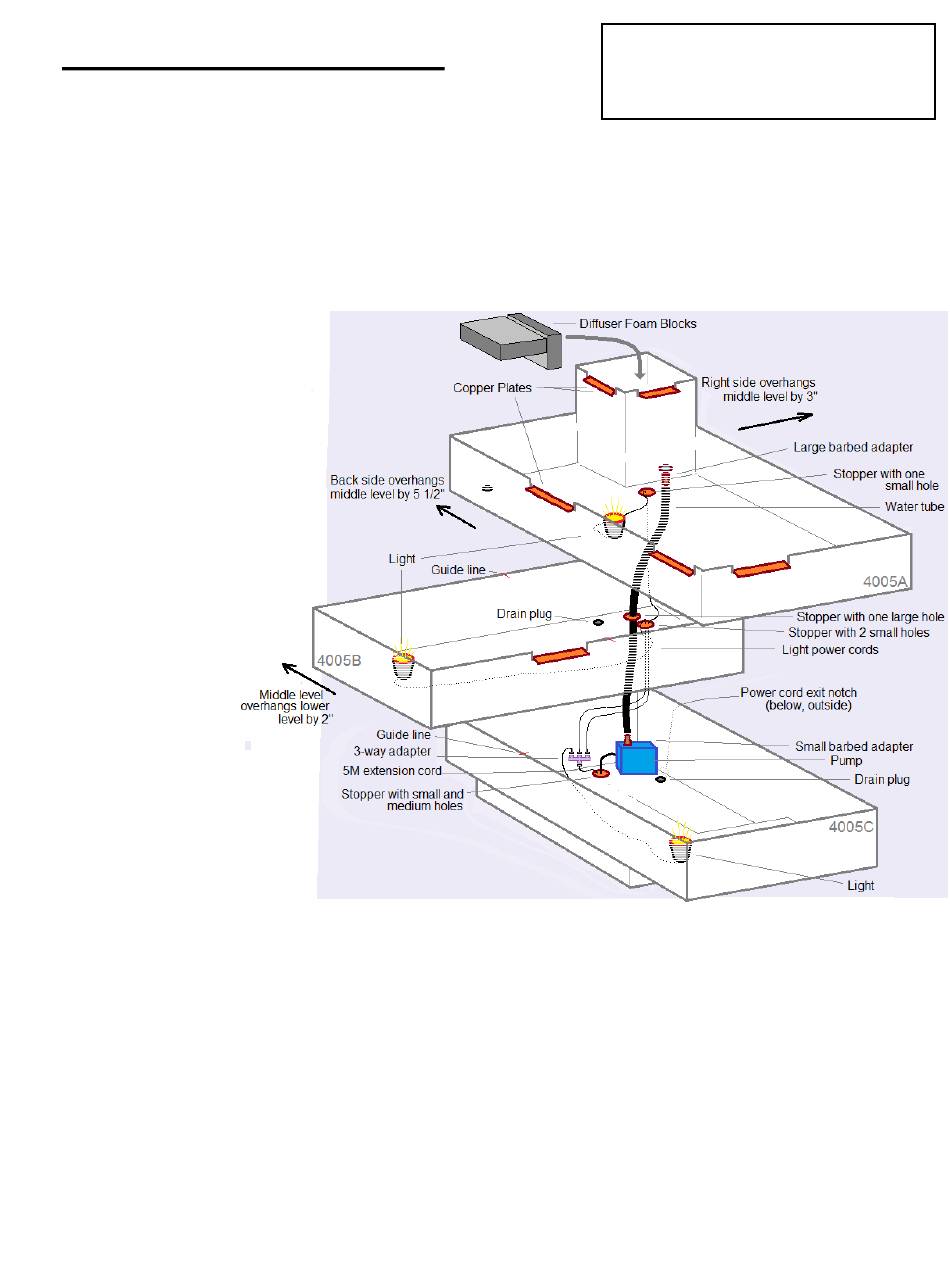

1) Prepare a suitable location for your new fountain. Place the
4005C Bottom piece on your prepared site with the understanding
that the power cords will pull out underneath through an exit notch, just to the right of where the
pump is shown in the drawing.
2) Set the pump in the back corner as shown and slip its power cord down through the large hole
in the floor next to it. Also slip the 5 meter long light extension cord through the same hole. Pull
both cords out through the notch underneath, toward your power supply. Open the stopper which
has a small and a medium size hole, place the cords in the appropriate holes, close the stopper over
the cords and press it down into
the hole firmly to make a water
tight basin. About 1/8" of the
stopper should be left above the
hole for ease in future removal.
Check the basin to make sure it
is level before adding layers
3) Connect the 3-way light
cord adapter (single side) to the
top of the 5 meter long exten-
sion cord. Make sure the water-
tight nut is tightly threaded
(do not over tighten) to keep
water out. Select one of
the lights in your kit
and pull out just
enough power cord
from the light to place it in
front of the basin as shown.
Connect the other end of the
light cord to the 3-way
adapter and tighten the nut.
4) Thread the smaller barbed
adapter into the top of the pump. Press one end of the water tube onto the adapter.
5) Set the 4005B Middle piece on top of the 4005C basin. You may notice that the 4005C basin
has a guide line engraved on top of the left wall showing where the front of the 4005B should rest.
For best balance of the whole fountain, the spill slot in front of the 4005B should be lined up about
¾" inside the wall of the 4005C.
6) Pull the water tube up through one of the holes in the 4005B floor and rest it within the 4005B
until performing step #9.
7) Select another light and position it inside the left wall of the 4005B. Run its power cord down
through the other hole, connecting the other end to the 3-way adapter below.
8) Insert the larger of the barbed adapters into the threaded coupling underneath the highest section of the
4005A top section. Set the 4005A Top piece on the 4005B. This time, you will find guide lines across the
4005F3
.
Make sure to place your fountain on a firm
area which will not settle. Note: Always
follow local electrical codes and use a
110V GFCI protected outlet.
