Summary of Contents for Wulian WL-ZSKWNPW-W3140-01
- Page 1 本企业通过ISO9001：2008质量管理体系标准 美标墙面插座 产品使用说明书 2015 南京物联传感技术有限公司 出版号：2015-0618.V01...
- Page 2 欢迎您使用Wulian美标墙面插座产品说明书 ● 是南京物联传感技术有限公司的注册商标，本说明书中提到的所有其他 产品名称或商标是其各自品牌所有者的商标或注册商标。 ●使用前请您认真阅读产品使用说明书，确保正确、安全地使用。 ●Wulian美标墙面插座产品（以下简称“本产品”）为南京物联传感技术有限公司 （以下简称“我司”）出品的智能家居插座类产品。本产品需要与智能家居相应的 APP客户端同步使用，如您未正确地操作本产品，而造成的损失，我司将不承担任 何责任。 ●我司随时可能对本说明书中的产品信息进行更新，恕不另行通知。请您及时关注 我司资讯，自行下载最新版APP客户端。 ●未经我司的明确书面许可，任何个人及企业不得复制本说明书的全部或部分内 容，不得使用我司注册商标。对非法使用我司商标的行为，我司将依法追究行为人 及企业法律责任。 ●欢迎您登录我司官网www.wulian.cc，了解更多智能家居产品信息。...
- Page 3 产品展示 始终处于通电状态 即插即用 系统指示灯 多功能按键 可由移动智能终端 控制通电状态...
- Page 4 基本功能 ●具有全球领先过载断电保护技术； ●可通过APP客户端，远程遥控电器通、断电，节能环保的定时开关功能，让 普通家电智能化； ●实时反馈开关状态，支持局域网和远程控制插座电源的通断； ●可自定义情景模式，支持加入到场景模式，预约定时功能，电能统计，查看 历史功能。...
- Page 5 软件下载 下载方式一： 请扫描本产品包装盒上的二维码，下载最新版本的软件客户端。 下载方式二： 官网软件下载地址：http://www.wulian.cc/service.shtml 温馨提示：初次使用时，请先安装APP客户端，并仔细阅读产品说明书；请时 常关注我司资讯，以便及时更新。...
- Page 6 安装指导 1、将墙面暗盒内的电线接入到本产品的接线端子，其中绿色接入地线，黑色 接入火线，白色接入零线。 火线 (黑线接入) (绿线接入) 地线 (白线接入) 零线 注：安装前请先确认电源已经关闭！电工作业危险，非专业人士不得擅自操作！...
- Page 7 2、用暗盒里自带的螺丝分别嵌入到安装孔，拧紧加固。...
- Page 8 3、扣上装饰盖，用螺丝拧紧加固。 注：装饰盖需要自行购买。...
- Page 9 联网设置 1、使用场景 平板电脑 物联美规插座 物联无线网关 手机 注：请确认无线网关（需另外购买）网络正常工作。请确认本产品处于通电状 态，且处于无线网关的有效通信距离内。...
- Page 10 2、加网设置 快击【多功能按键】4次，申请加入ZigBee网络。搜索网络中，【系统指示 灯】快速闪烁4次。成功入网后，【系统指示灯】呈绿色长亮2秒后熄灭。 先闪烁4次， 后呈绿色长亮2秒后熄灭 连续快击4次， 申请加入网络...
- Page 11 3、退网设置 长按【多功能按键】10秒，【系统指示灯】呈绿色闪烁4次后熄灭，本产品恢 复为出厂设置，同时退出ZigBee网络。 呈绿色闪烁4次熄灭 长按多功能 按键10秒 注：当本产品需要加入到其他网关时，请先退出当前网关，再进行联网设置。...
- Page 12 注意事项 ●安装前请先切断电源！带电作业危险，非专业人士不得擅自操作！ ●本产品务必安装在塑料暗盒中！如果安装在金属暗盒中，则可能削弱无线通 信信号，从而降低通讯效率。 ●本产品应安装在干燥清洁的地方，以免内部元器件受潮或其他杂物进入而影 响使用效果。 ●产品表面沾有灰尘时，用细布擦干即可，切勿使用带腐蚀的清洁液及其它化 学溶剂进行清洁。 ●若本产品发生故障，非专业人员不得拆开产品，应送到当地维修点进行维 修，或直接与我司客服联系。...
- Page 13 规格参数 外形尺寸（长×宽×高，mm） 104×42.5×41 材质，颜色 PC+ABS，白色 净重（g） 阻燃等级 UL94 V-0 通讯协议 IEEE 802.15.4 ZigBee/SmartRoom 天线类型 PCB天线...
- Page 14 电源参数 120V AC 60Hz 额定最大电流 待机功耗 ≤0.3W 最大阻性负载 1800W（白炽灯、卤素灯等阻性负载） 最大感性、容性负载 1000W（节能灯，日光灯，LED等感性、容性负载） 工作环境温湿度 -10℃～+45℃，≤95%RH（不凝结）...
- Page 15 订购信息 产品名称 Wulian美标墙面插座 型号 WL-ZSKWNPW-W3140-01 材质颜色 PC+ABS，白色 货号 WLPN1312310...
- Page 16 南京市雨花台区凤集大道15号创业创新城-北柚11栋 邮编:210039 服务热线：400-928-9288 www.wulian.cc...
- Page 17 Certified by ISO9001:2008 Smart Wall Socket-Outlet (USA Type) User Manual ©2015 Nanjing IOT Sensor Technology Co., Ltd (Wulian Co., Ltd) Publication No.: 2015-0618.V01...
- Page 18 ●Please read this product manual before using to ensure proper and safe use. ●Wulian smart wall socket-outlet (USA type, hereinafter referred to as “this product”) is one kind of smart home socket devices of Nanjing IOT Sensor Technology Co., Ltd.
-
Page 19: Product Illustration

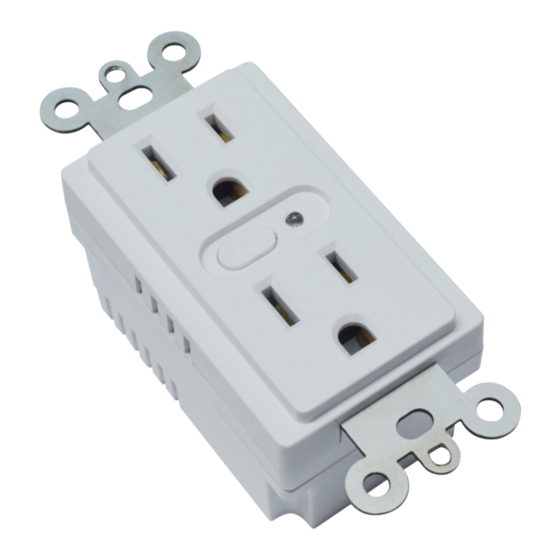

Product Illustration Keep power on plug and play System Indicator Multi-function Power state can be controlled by smart mobile terminals... - Page 20 Features ● World leading class over load power shut off protection. ● You can control the appliance turn on or off and use the energy save function of timing via smart mobile terminal, thus realizing the smart home. ● Feedback the real-time on/off status of the devices, support remote control with both local area network and internet .
-
Page 21: Software Download
Scan the QR code on the product package, download the latest version APP. Method 2: iOS user can download the APP by searching "Wulian Smart home" in "APP Store" Android user can download the APP by searching "Wulian Smart home" in "Google Play"... -
Page 22: Installation Instruction
Installation Instruction 1.Connect this product with the wire of the wall box according to the picture. Connect green wire to Ground, connect black wire to Live and connect white wire to Neutral. Live (Black wire) (Green wire) Ground (White wire) Neutral Note: Please make sure that the power has been cut off before installation. - Page 23 2.Insert the screws of the wall box into the mounting holes, and tighten them firmly.
- Page 24 3.Attach the decorative cover and tighten it with screws. Note: You need to buy decorative cover.
-
Page 25: Network Setting
Network Setting 1.Use Scenario Tablet Wulian Smart Wall Wulian Wireless Gateway Socket-Outlet(USA type) Cellphone Note: Please make sure wireless gateway (needs to buy separately) network is working normally and the product is power on, and please keep it in effective communication... - Page 26 2.Setting—Join ZigBee network Quick click [Multi-function Key ]4 times for applying to join ZigBee network. When searching network, [System Indicator ]will quick flash for 4 times. Upon successful connection, [System Indicator] will stay on green for 2 seconds and then go off. [System Indicator ]quick flash for 4 times, then stay on green 2 seconds...
- Page 27 3.Setting—Quit ZigBee network Long press [Multi-function Key ]for 10 seconds, [System Indicator ]will go off after flashing 4 times in green, then this product will restores to factory setting and quit ZigBee network. [System Indicator] goes off after flashing 4 times in green.
- Page 28 Cautions ●Please cut off the power before installation! Electrical work is dangerous, non-professionals are not allowed to operate! ●This product should be installed in the plastic boxes. The metal box may weaken the communication signal, reducing communication efficiency. ●This product should be installed in a clean and dry place to prevent the internal components from moisture or other debris into, affecting the using.
-
Page 29: Product Parameter
Product Parameter Dimension (length×width×height,mm) 104×42.5×41 Material & Color PC+ABS, White Net weight (g) Flame Retardant Rating UL94 V-0 Communication protocol IEEE 802.15.4 ZigBee/SmartRoom Antenna Type PCB Antenna... - Page 30 Power Supply 120V AC 60Hz Max. Current Standby Power ≤0.3W Consumption 1800W (Resistive load like incandescent lamp, halogen Max Resistive Load lamp and so on) Max Inductive, 1000W(Inductive, Capacitive load like Energy save lamp, Capacitive Load Fluorescent lamp , LED and so on) Working Temperature -10℃～+45℃，≤95%RH (Noncondensing) and Humidity...
-
Page 31: Order Information
Order Information Product Name Smart Wall Socket-Outlet(USA Type) Model WL-ZSKWNPW-W3140-01 Material and color PC+ABS, White Article Number WLPN1312310... - Page 32 Building 11, No.15, Fengji Road, Yuhuatai District, Nanjing (P. C.: 210039) Email: overseas@wuliangroup.com Service Hotline: 400-889-2891 www.wulian.cc/english...
