- Page 2 CONTENTS 1. PRODUCT INTRODUCTION ....................1 2. INSTALLATION PLANNING &CAUTIONS ................. 1 3. TECHNICAL PARAMETER ....................... 2 4. WIRING DIAGRAM ........................3 5. OPERATING INSTRUCTIONS ....................3 6. MAINTENANCE AND CLEANING ..................... 4...

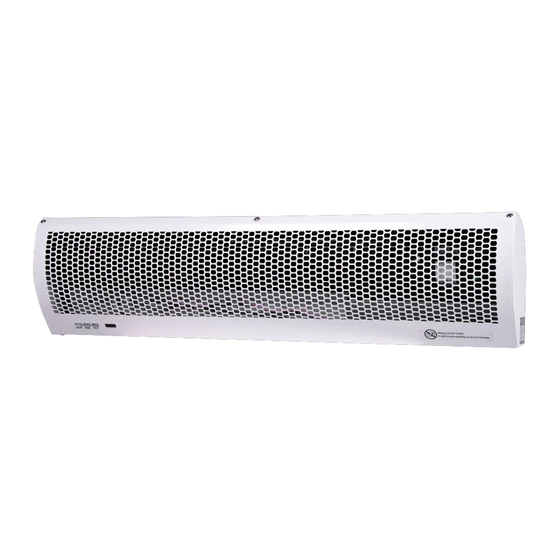

- Page 3 1. PRODUCT INTRODUCTION Air curtains are widely installed at the entrances of a supermarket, theater, meeting room, hotel, office room or storage room etc. They can reduce presence of insects, outside dust and unconditioned air into a conditioned space by forcing an air stream over the entire entrance to create a comfortable environment for you.
- Page 4 2.17 Children should be supervised to ensure that they do not play with the appliance. 3. TECHNICAL PARAMETER Rated Motor input Heater power Air volume Air velocity Noise Model Voltage (V~Hz) power(W) L/H (KW) (m/s) level(dB) DVSH40WH 230~50 2.0/4.0 The specifications are subject to change without notice due to product development.
- Page 5 4. WIRING DIAGRAM Internal wiring diagram of the air curtain: 5. OPERATING INSTRUCTIONS ON/OFF COOL HEAT Press the “ON/OFF” button on the remote control or on the main panel of the unit to turn on/off the unit. Press “HEAT” button to turn heater and fan on, the unit will operate initially at low heater power.
- Page 6 6. MAINTENANCE AND CLEANING WARNING: A. Any service is to be performed only by qualified personnel who are familiar with local codes and regulations and are experienced with this type of product. B. Always unplug or disconnect the appliance from the power supply before installation, servicing or cleaning the unit.
- Page 8 Register your warranty online within 30 days of purchase. www.devola.co.uk/warranty 10% OFF Use this discount code on your next order DEV10 Scan for technical details devola.co.uk Unit 1, Reedswood Park Road, Walsall, West Midlands. WS2 8DQ Helpline 0800 043 4243 Email info@devola.co.uk...
