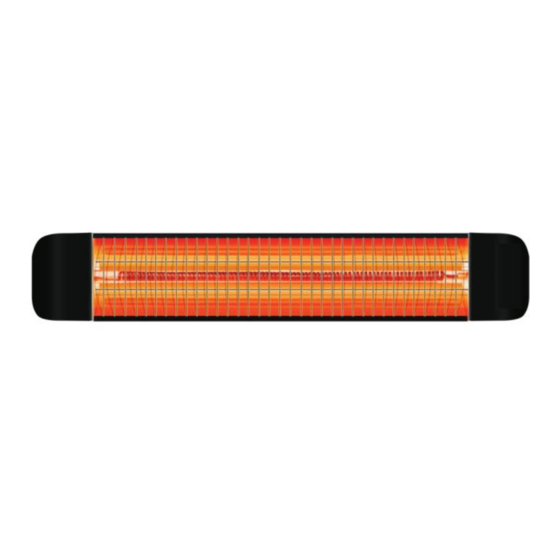

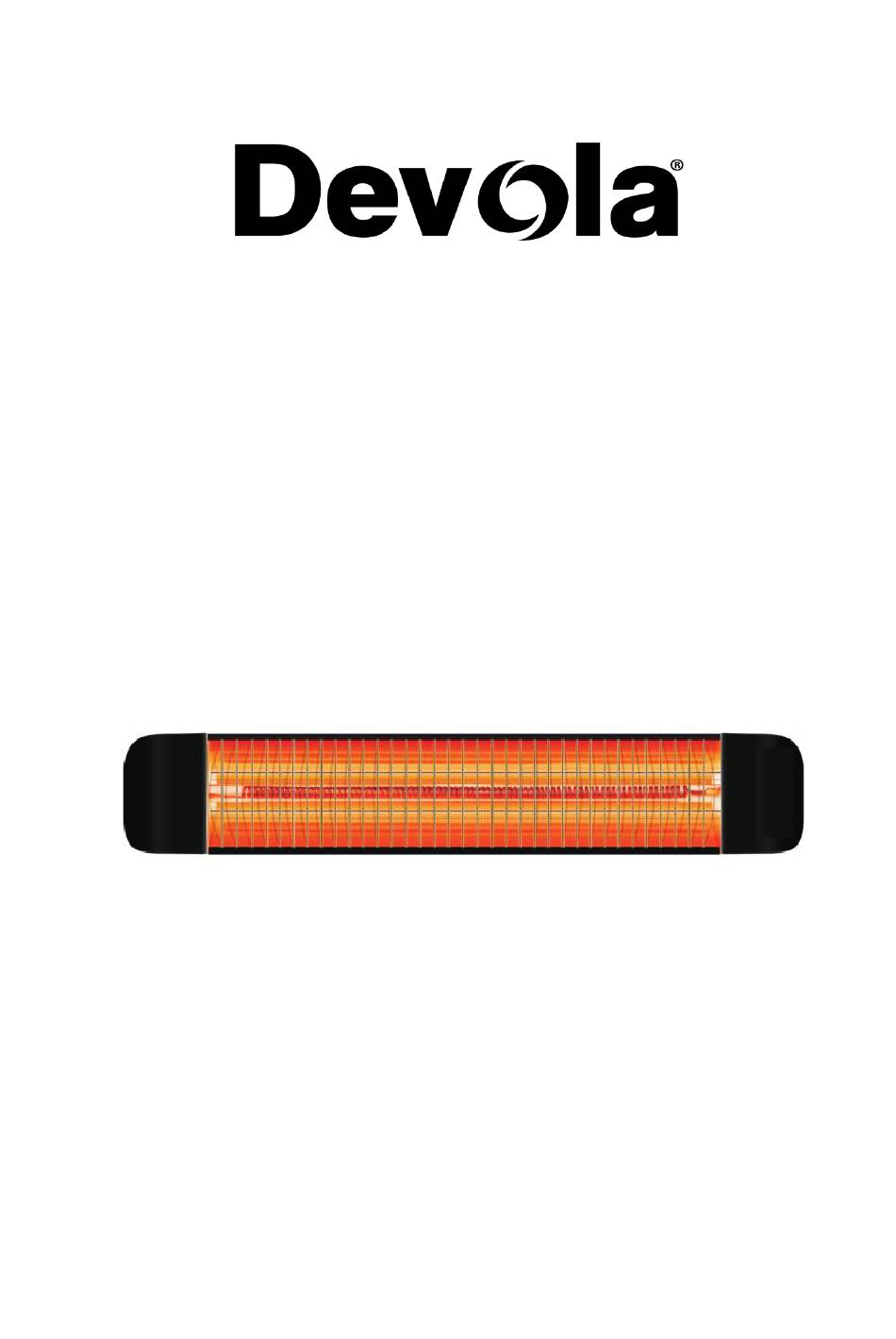

- Page 1 Wi-Fi Patio Heater - User Manual Models: UK - DVPH1200B/DVPH2000B/DVPH2400B EU - DVPH12BEP/DVPH20BEP/DVPH24BEP Please read the instructions carefully before use.
- Page 2 Thank you for your purchase. Please kindly note that we are not responsible for any damages resulting from failure to comply with the following instructions Electrical appliances should always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury, including the following: WARNING: To avoid overheating, do not cover the heater! The "no cover"...
-
Page 3: Installation
Do not touch the heater while in use. • Before adjusting the heater, position or working on it, be sure to always disconnect the heater from the power supply and allow it to cool. Product specifications Model DVPH1200B /DVPH12BEP DVPH2000B /DVPH20BEP DVPH2400B/DVPH24BEP Voltage 220-240VAC 220-240VAC... - Page 4 Figure A: Remove the expansion rubber and screws from the accessory bag, drill four holes with a diameter of 8mm on the wall. The hole depth is 70mm, the hole distance is 32mm, (300mm≤L≤450mm) install the expansion rubber in the fitting in the hole, and then mount the wall bracket from the accessories.
- Page 5 Figure C: Lock the wall bracket mounted on the back of the heater and the wall, adjust the heater to a suitable position, and lock the lock with the nut and screw from the accessory sleeve to ensure that it will not loosen Wall Hanging Diagram:...
- Page 6 Operating Instructions The following operations are suitable for the models listed: DVPH1200B/DVPH2000B/DVPH2400B/DVPH12BEP/DVPH20BEP/DVPH24BEP 1. Human Body Sensor Icon 2. Power Icon 3. Child Lock Icon 4. Temperature Indicator 5. Heating Level Gear Indicator 6. Intelligent Heating Mode Indicator 7. Heating Operation Indicator 8.
- Page 7 10. Body Sensor button Device Operation: The following operations are suitable for: DVPH1200B/DVPH2000B/DVPH2400B/DVPH12BEP/DVPH20BEP/DVPH24BEP 1. Plug the heater power cord into the socket that matches the voltage and current of the body nameplate. 2. Press the On/Off button to switch the heater on, the display will illuminate.
- Page 8 5. Press the timer button to enter the timing setting state. Select a shutdown time by using the Up/Down buttons. The shutdown timing range is 1-24 hours. The timing indicator is illuminated when the timer is running. 6. Press the Display button once and the digital screen will only display the temperature. Press the Display button twice to solely display the heating operation icon.
- Page 9 Note: Due to continued updates, the images in this manual may vary slightly from the latest procedure. All images in this manual are for reference purposes only Cleaning and Maintenance If the inside of the heater or the heating element is covered with dust or dirt, please have it cleaned by a qualified service provider.
-
Page 10: Waste Electrical Recycling
WASTE ELECTRICAL RECYCLING This symbol indicates that this product is classed as Electrical or Electronic Equipment and should not be disposed of with other household waste. The Waste Electrical and Electronic Equipment (WEEE) Directive has been introduced across the European Union for the following purposes: 1. - Page 11 Table for information requirements for electric local space heaters Model identifier(s): DVPH1200B/ DVPH2000B/ DVPH2400B/ DVPH12BEP DVPH20BEP DVPH24BEP Item Symbol Value Unit Heat output Nominal heat output Pnom Minimum heat output (indicative) Pmin 0.12 0.20 0.24 Maximum continuous heat output Pmax 1.15...
-
Page 12: Warranty
This product is covered by a standard parts or replacement warranty for a period of 12 months from the date of purchase. Extend your warranty for 12 months for free by visiting www.devola.co.uk/warranty. Incorrect installation and failure to follow correct operating instructions are excluded. Consequential costs such as labour charges or damage to surroundings are expressly excluded.
