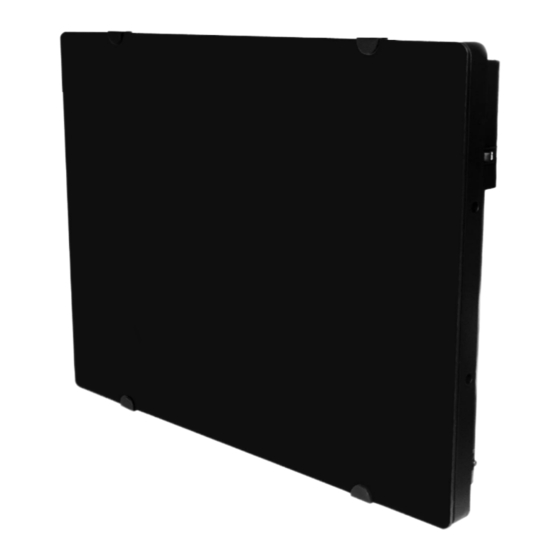

Wall Mounted Glass Panel Heater
FOR INDOOR USE ONLY
BEFORE INSTALLING OR USING THIS PRODUCT
THE INTRUCTIONS SHOULD BE READ CAREFULLY
Save this booklet for future reference
WARNING!
read all the instructions before using this heater.
Operating Instructions
Model
1.5kW Glass Panel Heater
2.0kW Glass Panel Heater
To reduce the risk of fire, electric shock, or personal injury,
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DEVOLA 1.5KW GLASS PANEL HEATER
Summary of Contents for DEVOLA 1.5KW GLASS PANEL HEATER
-
Page 1: Operating Instructions
Wall Mounted Glass Panel Heater Operating Instructions Model 1.5kW Glass Panel Heater 2.0kW Glass Panel Heater FOR INDOOR USE ONLY BEFORE INSTALLING OR USING THIS PRODUCT THE INTRUCTIONS SHOULD BE READ CAREFULLY Save this booklet for future reference WARNING! To reduce the risk of fire, electric shock, or personal injury,... -
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS • READ ALL INSTRUCTIONS BEFORE USING. WARNING: DO NOT COVER • WARNING: In order to avoid overheating, do not cover the heater. • This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: Where To Install The Heater
WHERE TO INSTALL THE HEATER? This heater is designed to be installed for indoor use only. Do not locate the heater below a fixed socket outlet or connection box. Comply with the minimum clearance distances as indicated in Fig. 1. In humid areas such as bathrooms and kitchens, the connection box must be installed at least 25cm above the floor. -
Page 4: Operation
The wall brackets supplied with the heater must be used. The heater should be positioned observing the minimum clearances stated around the heater – see Fig. 1 First remove the wall bracket from the rear housing. Unscrew the 2 screws located on the top of the 2 vertical bars of the wall bracket (See Step1). - Page 5 How to use Turn on the main power by pressing the main switch to “I” position then the display will flash three times, the LCD screen will display 7.0℃ and (Anti-Frost Mode). 1) MODE SELECTION When the heater is on, press “MODE” button to cycle between the modes. There are 6 working modes: - Comfort Mode: User defined temperature between 5°C ~ 35°C - 1°C below the comfort mode temperature...
- Page 6 2) PROGRAMMING THE TIMER (P Mode) . The numbers 1-7 on the top left corner of the display Set the mode to correspond to days of the week from Monday to Sunday. There are 24 symbols on the lower half of the display which show the working mode setting for each hour of the day.
- Page 7 Once the time is confirmed, the first segment of the 24 hour symbols will flash, indicating that the working mode for the first hour of the day (00:00 – 01:00) is being programmed. Press MODE repeatedly until the desired working mode symbol is shown for this time period, then press the + key to continue to the next hour period.
-
Page 8: Maintenance
MAINTENANCE 1. Before you clean the appliance, switch the heater off and wait until it has cooled down. 2. Use a damp cloth to wipe off the fan heater housing. 3. Clean the upper and lower grilles of the unit periodically 4. -
Page 9: Specification
For more information on disposal contact your local authority. Customer Services Devola 97 Walsall Road Birmingham B42 1TX Tel: 0800 043 4243 Website: www.devola.co.uk... - Page 10 Version 1/16...
