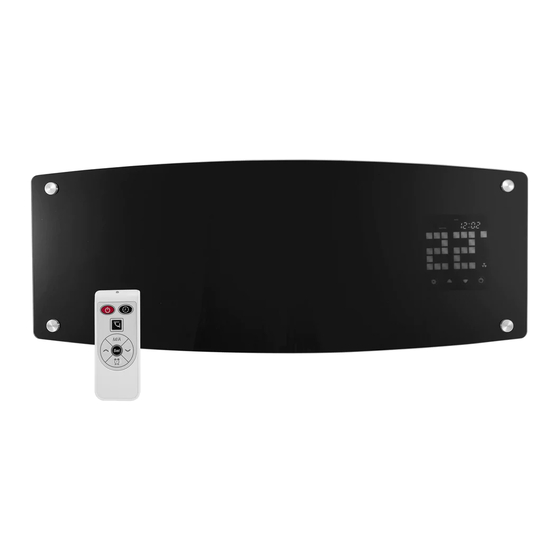

- Page 1 2000W Glass Panel Air Curtain User Manual MODEL(s): UK - DVSH20B / DVSH20WH EU – DVSH20BE / DVSH20WHE Please read the instructions carefully before use.
-
Page 2: Important Safety Instructions
Important Safety Instructions Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings. Keep the manual in a safe place for future reference, along with any warranty information, your purchase receipt, and the original carton. - Page 3 Important Safety Instructions (Cont.) Safety switch: Unless your home is already fitted with a residual current device (safety switch), we recommend installing an RCD with a rated residual operating current not exceeding 30mA to provide additional safety protection when using electrical appliances. See your electrician for professional advice.
- Page 4 Important Safety Instructions (Cont.) Children: Supervise children to ensure they do not play with the heater. Close supervision is necessary when any appliance is used by or near children. Unattended: Do not leave children unattended with the appliance when it is in use. CAUTION: Hot! This heater is hot when in use.
-
Page 5: Product Overview
Product Overview Air inlet Switch Power cord Swing Air outlet Control Panel Description illustration Fan Heater Remote Wall Plug (for wall mounting) Screw (for wall mounting) Instructions... -
Page 6: Getting Started
Product Overview (Cont.) 1. Open Window Indicator 8. Timer Scheduled 15.Temperature Set button (℃) 2. Auto Mode 9. High Heat Indicator 16. LED Number Display 3. Manual Mode 10. Low Heat Indicator 17. Time Set button 4. Timer Period Indicator 11. - Page 7 Please refer to the instructions in the Other Useful information section for support on how to replace the battery. Plug: The DVSH20B and DVSH20WH models have UK 3 pin BS plugs. The DVSH20BE and DVSH20WHE models have Euro two pole plugs.
- Page 8 Getting Started (Cont.) • Drill two holes in the wall 535mm apart, where you want to position the heater 一 their diameter should be wide enough, so they just tightly contain the plastic wall plugs. • Insert the supplied wall plugs and screws into the holes, leaving the head to protrude approximately 3-5mm.
- Page 9 Getting Started (Cont.) To take the heater off the wall, pull the heater upwards about 5mm and then to the left about 10mm before gently pulling it away from the mounting screws and off the wall. This heater MUST be installed to the minimum required distances at the four sides of the heater.
- Page 10 Swing Function Press the swing button to turn the louver oscillation function on or off. Set Time/Date Press the time set button and use the up and down select buttons to cycle between the days of the week until you reach the current day.
-
Page 11: Other Useful Information
Other Useful Information CAUTION! Always switch off and disconnect the appliance from the power supply before attempting any maintenance or cleaning the heater. Troubleshooting If your heater fails to operate, or you experience any other problem with the appliance, contact our after-sales customer service team for advice. - Page 12 Other Useful Information (Cont.) Cleaning and maintenance The heater requires regular cleaning to ensure trouble-free operation. • Before cleaning your heater, switch off the heater and allow it to cool. Disconnect the electricity supply to the appliance. • Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and dirt. Allow some time for the heater to dry thoroughly before reconnecting it to the power supply.
- Page 13 Other Useful Information (Cont.) Battery replacement If the battery in the remote control is flat, replace it with a new 3V CR2032 size button cell following the instructions (Fig. 7): • Push the locking tab to one side and pull out the battery holder at the back side of remote control.
- Page 14 Other Useful Information (Cont.) Technical specifications Model No(s) DVSH200B/DVSH20WH/DVSH20BE/DVSH20WHE Rated Power 2000W Rated Voltage 220-240V~50Hz Dimensions 645 (W) x 250 (D) x 130 (H) Weight Compliance This appliance has been fully tested and meets all requirements as set out by standards EN 60335-1 and EN 60335-2-30.
- Page 15 Table for information requirements for electric local space heaters Model identifier(s): DVSH20B/DVSH20WH/DVSH20BE/DVSH20WHE Item Symbol Value Item Unit Heat output Type of heat input, for electric local space heaters only (select one) Nominal heat Pnom Manual heat charge control with integrated...
-
Page 16: Warranty
This product is covered by a standard parts or replacement warranty for a period of 12 months from the date of purchase. Extend your warranty for 12 months for free by visiting www.devola.co.uk/warranty. Incorrect installation and failure to follow correct operating instructions are excluded.
