Motorola MBP944CONNECT - Baby Monitors Quick Start Guide

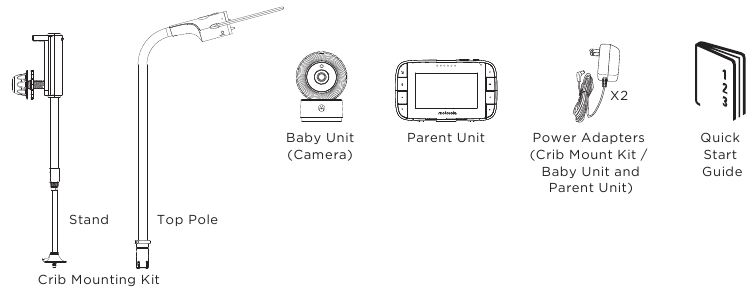

Contents Inside Box


Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 1m (3ft) away).
Never use extension cords with AC Adapters. Only use the AC Adapters provided. Stop using the crib mount when baby begins to push up on hands and knees.

Setting up MBP944CONNECT

Step 1: Fasten the round adaptive plate on to the screw thread of the crib mount stand. (see note)

Step 2: Place the mount stand against the crib with the screw thread going through the crib bars.

Step 3: Secure the mounting knob on to the screw thread.

Step 4:Keep the stand parallel and tighten the mounting knob so that the crib mount stand is secured to the crib bars.

warning
Note: Only use the adaptive plate if the top rail of your crib is too thick for the bracket.

Step 5: Extend the telescopic leg of the crib stand so the foot is secured to the floor.

Step 6: Tighten the securing knob to lock the telescopic leg in place.

warning
Note: Ensure the telescopic leg is extended so the foot sits tight against the floor.

Step 7: Insert the Top Pole (with night light ring) into the crib mount stand. It will lock into place with a 'click'.

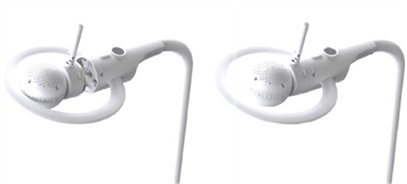

Step 8: Dock the baby unit into the top pole (with night light ring) as shown in the picture below.

warning
Note: Before removing the camera from the top pole. Rotate the top pole outside the crib area to avoid the possibility of the camera falling into the crib.

Step 9: Plug the Power Adapter (DC5V/1.5A) into the socket on Crib Mount Stand and the other end to a suitable electrical outlet.

warning
Note: When your child is older the baby unit (camera) can be removed and used without the crib mounting kit. This is 'Desk Mode'. Connect the power supply directly into the Baby Unit (camera) when using in desk mode.

Step 10: Connect the DC plug of the power adapter(DC5V/1.5A) to the Parent Unit and the other end to a suitable electrical outlet. Press and hold the POWER button on the top of the Parent Unit to turn it ON.

warning
Note: A rechargeable battery (Lithium ion battery 2000mAh) inside the Parent Unit allows you to move it without losing the link and picture from the Baby Unit. The battery gives up to 5 hours operation for the Parent Unit. We recommend you charge it for at least 16 hours before first use, or when the Parent Unit indicates the battery is low.

Parent Unit menu icons

Signal Level Indication (5 Levels).
Night Vision Mode (Video also changes to Black/White).
Talk Mode On.
Indicates the screen off timer is set.
Volume Level Control (8 Levels).
No Baby Unit detected.
Sleep activity monitoring.
Battery Level Indication (4 Levels).
Night light is ON.
Night Light Brightness Control with 3 levels of selection.
Night Light Colour Control with 7 colour options.
Night Light Colour Loop with 7 colours.
Zoom Level Control (1X, 2X).
LCD Brightness Level Control (8 Levels).
Audio content Playback selection - Lullabies/Soothing Sounds and Audio Books .
Alarm Setting (6h, 4h, 2h, OFF)
On status bar, indicates alarm set, and when flashing, that alarm time has been reached or missed.
Temperature scale select (°C/°F)
Readings display in BLUE, but turn RED if > 29°C / 84°F or < 14°C / 57°F.
Displays HH °C / °F if >36°C / 97°F.
Displays LL °C / °F if < 1°C / 34°F.
Camera Control (scan , view , add , suppression).
Set Screen Off Timer (Off , 5 min, 30 min, 60 min).
View multiple cameras on screen. Available when you have more than 1 Baby Unit (Camera).
Light Show Projector is on.

Basic operation of the keys

Parent Unit

ON/OFF button Press and hold to switch on/off the parent unit. Press to turn the LCD screen ON/OFF.
Volume Down/Up buttons Press -/+ to select volume level of the parent unit.
SLEEP button Press to review the sleep activity of your baby that recorded from Camera.
TALK button Press and hold to talk to your baby.
UP/DOWN buttons Press to adjust menu settings.
MENU Press to open menu options or exit the menu.
OK button Press to confirm a selection.
LEFT/RIGHT buttons Press to access different menu options.
RESET button Press and hold with a small pin to reset the unit.
Baby Unit
PAIR button When use the Baby Unit at desktop mode, press and hold to pair with the parent unit or Hubble Wi-Fi® Setup.
ON/OFF button Slide the power switch to switch on/off the Unit.
Top Pole
Night Light button Press once to switch Night Light on, press repeatedly to select Night Light with 7 colour options.
Light Show Projector button Press to switch Light Show on or off, press repeatedly to select projector scenes. When use the Baby Unit at dock mode, press and hold to pair with the
UNLOCK/LOCK Switch parent unit or Hubble Wi-Fi® Setup. Slide the switch to UNLOCK to release baby unit.

Setting up the Baby Unit for Wi-Fi® internet viewing

  1. After the Baby Unit docked on the top pole (with Night Light ring) then connect the small plug of the power adapter to the socket at the end of the Crib Mount Stand and the other end to the electrical outlet. Ensure the Power ON/OFF switch is "ON" position.
  2. Install Hubble for Motorola Monitors App on your Android™ Devices / iPhone® / iPad®


itunes.apple.com


play.google.com

  • Scan the QR code with your smart device and download Hubble for Motorola Monitors App from the App Store for iOS devices or from the Google Play devices.
  • Install Hubble for Motorola Monitors App on your device.
  1. Monitor on Compatible Smartphones and Tablets
    Monitor on Compatible Smartphones and Tablets
  2. Open the Hubble for Motorola Monitors App on your compatible smartphone or tablet.
  3. Follow the in-app instructions to create your Hubble account and connect to MBP944CONNECT.
  4. Log in to your account on your compatible smartphone or tablet to access your live video stream.

Please take note of the following minimum system requirements:
Smartphones/Tablets: iOS 8, Android™ 5.0
Wi-Fi® requirements:
At least 0.6 Mbps upload bandwidth per Smart Monitoring Companion unit, test your Internet speed at: http://www.speedtest.net/

General Information

If your product is not working properly, read this Quick Start Guide.
Contact Customer Service:
+491808 938 802 in Europe
E-mail: motorola-mbp@tdm.de
