dji OSMO Plus User Manual

Hide thumbs Also See for OSMO Plus:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
2016.09
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSMO Plus and is the answer not in the manual?

Questions and answers

Related Manuals for dji OSMO Plus

Summary of Contents for dji OSMO Plus

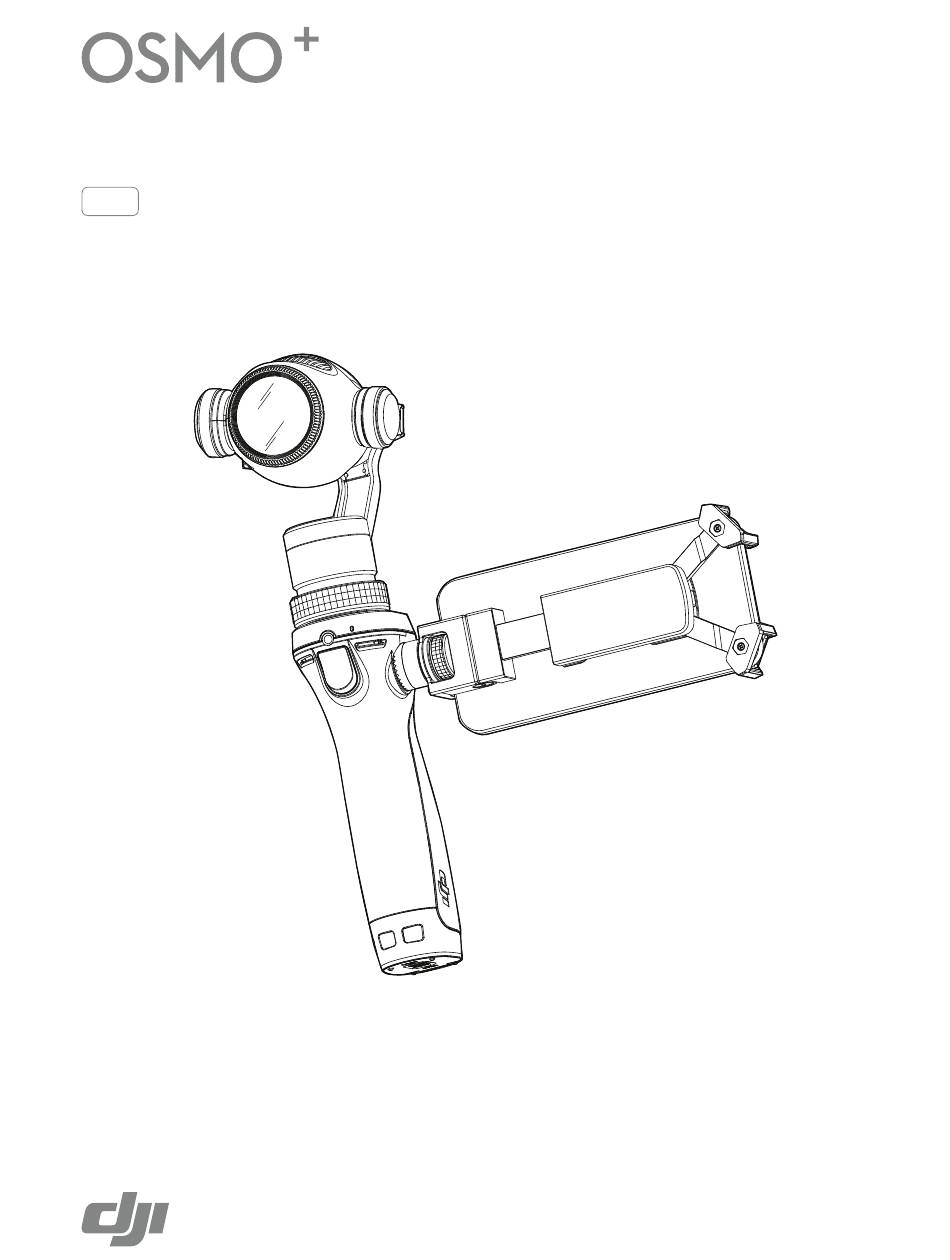

  • Page 1 User Manual 2016.09 V1.0...

  • Page 2: Using This Manual

    Legend Important Tips Install the DJI GO App Search for ‘DJI GO’ on the App Store or Google Play and install the app on your mobile device. DJI GO supports iOS 8.0 (or later) or Android 4.3 (or later). ©...
  • Page 3 Contents © 2016 DJI. All Rights Reserved.
  • Page 4 The camera tilts across a 170-degree range and has a pan rotation of 640 degrees. The DJI Rosette Mount on the side of the handle allows your mobile device to be mounted as a live...

  • Page 5: Getting Started

    Cuts the power supply if a short circuit is detected. Stops charging if the core temperature falls below 41°F (5°C) Temperature Control or exceeds 104°F (40°C). Battery Level Display The battery level is displayed in the DJI GO app. © 2016 DJI All Rights Reserved.
  • Page 6 Output 12.6 V/13.2 V; 0.8 A Only charge the battery with the provided battery charger. DJI takes no responsibility for accidents caused by the use of non-DJI battery chargers. Remove the battery from the charger unless it is charging to prevent battery discharging.
  • Page 7 3. Place one end of your mobile device into the arms. 4. Extend the arms so that your entire mobile device is seated in the mobile device holder. 5. Rotate your mobile device to the desired position. © 2016 DJI All Rights Reserved.
  • Page 8 Removing the Mobile Device Holder 1. The mobile device holder can be removed by rotating the knob counterclockwise. 2. It is recommended to install the cap for the DJI Rosette Mount when it is not in use. Optional Accessories DJI provides various optional accessories for the Osmo+.
  • Page 9 1. Gently rotate the roll motor until it can rotate freely. Rotate the motor just enough to allow free motion. 2. Slide the Pan Axis Lock upwards to unlock the pan axis. Pan Axis Lock © 2016 DJI All Rights Reserved.

  • Page 10: Using The Osmo

    Pulling the power switch again will cause the Osmo+ to go in or out of sleep mode. To turn off the Osmo+, pull the power switch down and hold for 1.5 seconds. Hold the Osmo+ steady and upright while it is starting up. © 2016 DJI All Rights Reserved.
  • Page 11 Vertical movement tilts the camera. Horizontal movement pans the camera. Joystick Control Direction can be changed in the DJI GO app. [3] Shutter Button Press this button to take photos based on your settings in the DJI GO app. Hold down shutter button to capture continuous photo. [4] Record Button Press this button once to start recording video, and again to stop recording.
  • Page 12 When the Osmo+ is in Upright Mode and Underslung Mode, Mode. [8] External Microphone Input Connect the provided Flexi Microphone to record audio. [9] Built-in Microphone Records audio for general use. You can turn off the microphone in the DJI GO app. © 2016 DJI All Rights Reserved.
  • Page 13 Wi-Fi is off when the system status LED blinks twice. Repeat to turn on Wi-Fi. Operation Modes Upright Mode Upright Mode can be used without any user input. In this mode, quickly tap the trigger twice to center the camera. © 2016 DJI All Rights Reserved.
  • Page 14 Rotate the Osmo+ forward 90 degrees to go from Upright Mode to Flashlight Mode. In Flashlight Mode, pushing the joystick up and down will tilt the camera, pushing the joystick left and right will have no effect. © 2016 DJI All Rights Reserved.
  • Page 15 Rotate the Osmo+ 90 degrees to the left or right to go from Upright Mode to Portrait Mode. DJI GO App Watch a live HD video feed on your mobile screen through the DJI GO app. The Osmo+ is complemented by the DJI GO app, which provides shooting modes such as motion timelapse and 9-shot panorama.
  • Page 16 You will need to log in to your DJI account through an Internet connection. Re-connect to the Osmo+ Wi-Fi network after the activation is complete. 4. Enter Camera View. You will see what the camera captures in real time if it is connected successfully.
  • Page 17 Disabling this option reduces the minimum interval to 1 second. 2) If the timelapse interval is 2 seconds or more, the camera will apply digital stabilization to the live HD video on your mobile device. Video Modes © 2016 DJI All Rights Reserved.
  • Page 18 Select the ‘Fast’, ‘Medium’ or ‘Slow’ profile depending on how responsive you want the gimbal to be. Alternatively, create a custom profile by selecting C1 or C2 and • SmoothTrack Settings The pan and tilt axes can be adjusted separately. movement. © 2016 DJI All Rights Reserved.
  • Page 19 Walk Mode it is slower. When using the Osmo's Wear Mode with the Osmo+, vertical movements created by wearing the Osmo are minimized. to recenter the camera. enable Lock Mode. © 2016 DJI All Rights Reserved.
  • Page 20 Edit your photos by adjusting the parameters, editing the photo size, adding watermarks 3. Skypixel View and share photos and videos to the Skypixel network. 4. Me If you already have a DJI account, you will be able to participate in forum discussions. © 2016 DJI All Rights Reserved.

  • Page 21: Upgrading The Firmware

    Osmo+ will emit a fast beeping sound, in which case you should reattempt the upgrade. Using the DJI GO App Connect the Osmo+ to your mobile device and then launch the DJI GO app. You will be device to the internet and follow the on-screen instructions.

  • Page 22: Maintenance

    2.4×1.9×6.4 inches (61.8×48.2×161.5 mm) Weight (including battery) 201 g Model Zenmuse X3 Zoom Weight 268 g Output Power (with camera) Angular Vibration Range ±0.02° Mount Detachable Controllable Range Mechanical Range Max Controllable Speed 120°/s © 2016 DJI. All Rights Reserved.
  • Page 23 ( > 32 GB) JPEG, DNG ( RAW) Photo Formats MP4/MOV (MPEG-4 AVC/H.264) Video Formats Micro SD Supported SD Cards Class 10 or UHS-1 32° to 104° F (0° to 40° C ) Operating Temperature © 2016 DJI. All Rights Reserved.
  • Page 24 100 – 240 V, 50 / 60 Hz Input Output 12.6/13.2 V, 0.8 A Sensitivity -32 ± 3 dB (0 dB =1 V/Pa) Frequency Response 100 - 10000 Hz Signal-to-Noise Ratio 60 dBA Pin Diameter 3.5 mm Length 88 mm Weight © 2016 DJI. All Rights Reserved.

  • Page 25: Troubleshooting

    Do not remove the Micro SD card from the camera. Recharge the battery or insert a new Long exposures can be produced by setting a slow shutter speed. In the DJI GO app, choose ‘S’ mode (Shutter Priority) or ‘M’ (Manual Mode) and adjust the shutter speed to the desired value.
  • Page 26 This content is subject to change. Download the latest version from http://www.dji.com/product/osmo-plus If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. OSMO is a trademark of DJI. Copyright © 2016 DJI All Rights Reserved.
  • Page 27 Quick Start Guide V1.0...
  • Page 28 Overview The OSMO + is a professional handheld gimbal camera that combines mobility and stability in one device. Its camera features an optical zoom lens providing 3.5x optical zoom and 2x lossless digital zoom. It shoots sharp 12MP still photos and stable video at up to 4K.
  • Page 29 16 Air Vents 16 Air Vents 17 Built-in Microphone 17 Built-in Microphone 18 External Microphone Input 18 External Microphone Input 19 Trigger 20 DJI Rosette Mount 21 Lanyard Hole 22 Battery Cover 23 Flexi Microphone...

  • Page 30: Specifications

    Specifications Handle Dimensions 2.4×1.9×6.4 inches ( 61.8×48.2×161.5 mm ) Weight ( including battery ) 201 g Max Size: 6.2 ( L ) × 3.1 ( W ) inches Supported Mobile Device 158.2 ( L ) × 77.9 ( W ) mm Gimbal Model Zenmuse X3 Zoom...

  • Page 31: Optional Accessories

    -32 ± 3 dB (0 dB =1 V/Pa) 100 - 10000 Hz Frequency Response Pin Diameter 3.5 mm Length 88 mm Weight Optional Accessories Extension Rod Tripod Osmo Z-Axis DJI provides various optional accessories for the Osmo+. Visit the DJI Online Store for more information: http://store.dji.com...

  • Page 32: Install The Dji Go App

    1. Install the DJI GO App Search for ‘DJI GO’ on the App Store or Google Play, or scan the QR code to download the app on your mobile phone. DJI GO supports iOS 8.0 (or later) DJI GO supports iOS 8.0 (or later) and Android 4.3 (or later).
  • Page 33 3. Mount your Mobile Device Unfold the arms Adjust the pads Place one end Place one end Place the other end Place the other end Pull outwards Pull outwards Rotate to desired angle Rotate to desired angle Ensure your mobile device is fully seated.
  • Page 34 4. Unlock the Gimbal 1. Rotate the tilt motor 2. Slide the Pan Axis Lock up 2. Slide the Pan Axis 5. Connect to the DJI GO App 5. Connect to th To Power On: To P Pull down on the switch Pull Pull down again >...
  • Page 35 For more information, read the User Manual: http://www.dji.com/product/osmo-plus This content is subject to change without prior notice. OSMO is a trademark of DJI. © Copyright 2016 DJI All Rights Reserved. Designed by DJI. Printed in China...
  • Page 36 www.dji.com...
  • Page 37 In the Box Check that all of the following items are in your package. If any items are missing, please contact or your local dealer. Handheld Gimbal and Mobile Device Holder × 1 Camera × 1 High Capacity Intelligent Battery Charger × 1 Battery ×...
  • Page 38 Rosette Protection Cap × 1 Manuals • OSMO In the Box • OSMO Quick Start Guide • OSMO Disclaimer and Safety Guidelines • OSMO Series Intelligent Battery Safety Guidelines is a trademark of DJI. Copyright © 2016 DJI All Rights Reserved.

  • Page 39: Intelligent Battery

    Series INTELLIGENT BATTERY Safety Guidelines 2016.08 V1.0...
  • Page 40 NOTICE All instructions and other collateral documents are subject to change at the sole discretion of SZ DJI TECHNOLOGY CO., LTD. For up-to-date product information, visit http:// www.dji.com and click on the product page for this product. Glossary The following terms are used throughout the product...
  • Page 41 Battery Disposal section below. Put out any battery fire using water, sand, fire Never use non-DJI batteries. Go to www.dji.com to purchase new batteries. DJI takes no responsibility for any damage caused by non-DJI batteries.
  • Page 42 15. Clean battery terminals with a clean, dry cloth. Battery Charging DO NOT attach the batteries to wall outlets or car charger sockets directly, and always use a DJI approved adapter. DJI takes no responsibility if the battery is charged using a non-DJI charger.
  • Page 43 DO NOT store the battery fully discharged for long periods of time, otherwise it will over discharge and lead to permanent damage. Battery Maintenance Never use the battery when the temperature is too high or too low. Never store the battery in environments with a Travel Notice Before carrying the Intelligent Battery on an airline Only discharge the battery in a fireproof location.
  • Page 44 This content is subject to change. Download the latest version from http://www.dji.com If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. is a trademark of DJI. Copyright © 2016 DJI All Rights Reserved.
  • Page 45 DJI GO App Android : v3.1.0 What’s New? x Added support for locking focus at infinite with one tap in the DJI GO app. Notes: x Calibrate the gimbal using auto-calibrate after upgrading firmware. x If the firmware upgrade fails, restart Osmo+ and DJI GO app and retry.
  • Page 46 To increase stability and smoothness, camera will no longer attempt to focus when the gimbal moves while recording a video. Notes: x Calibrate the gimbal using auto-calibrate after upgrading firmware. x If the firmware upgrade fails, restart Osmo+ and DJI GO app and retry. http://www.dji.com/product/osmo-plus Copyright © 2016 DJI All Rights Reserved.
  • Page 47 Fixed issue of gimbal being unable to re-center when reaching its maximum control angle. Notes: x Latest version of DJI GO app (iOS V2.9.2 or Android V2.9.1) required if upgrade the firmware through DJI x After updating, auto calibrate the gimbal.
  • Page 48 DISCLAIMER AND SAFETY GUIDELINES 2016.08 V1.0...
  • Page 49 DJI product, or damage to other objects in the vicinity. This document and all other collateral documents are subject information, visit http://www.dji.com and click on the product...
  • Page 50 Box”. Read the entire user manual and watch the tutorial videos above to understand your legal rights and responsibilities. If you have any questions or problems during the installation, maintenance or use of this product, please contact DJI or a DJI authorized dealer. Install the DJI GO App Search “DJI GO”...

  • Page 51: Safety Guidelines

    DJI GO supports iOS 8.0 (or later) and Android 4.3 (or later). Safety Guidelines 1. Intricate components inside the Osmo+ may be damanged upon impact and cause the gimbal to malfunction. 2. Ensure there is nothing obstructing the gimbal when the Osmo+ is powered on.
  • Page 52 FCC Compliance Notice subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 53 之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性 電機設備之干擾。 EU Compliance Statement SZ DJI TECHNOLOGY CO., LTD. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive. A copy of the EU Declaration of Conformity is available online at www.
