7.5 Manual Display in Prepayment Mode

The keypad of the meter is used to view a particular information specific to the meter's current operating mode.
In Prepayment mode each numeric key is assigned to display a set of information; key 'A' and key 'B' are
assigned to perform additional functions as described in the subsequent content.
In a display cycle, data is preceded by its title; default timeout for each title display is two (2) seconds and for
data the display timeout is four (4) seconds. The following displays are configured at manufacture and can be
changed by a configuration change.
Key 1: Current day and previous day cost of consumption
A short press of key '1' will initiate the associated display sequence. After each set of information comprising a
title followed by its data, either a four (4) seconds wait or short press of the key will advance the display to the
next set of information as described below.
Title 1: Current day's cost
Followed by value
Press key 1 to advance to the next display
Title 2: Previous day's cost
Followed by value
BGX501-767-R02
Followed by
This display only appears in the display list when a Friendly
Credit period is active.

Table 15: Auto scroll display in Prepayment mode

(timeout 2 secs)
(timeout 4 secs)
(timeout 2 secs)
(timeout 4 secs)
Liberty 100 Smart Electricity Meter Technical Reference Manual
st

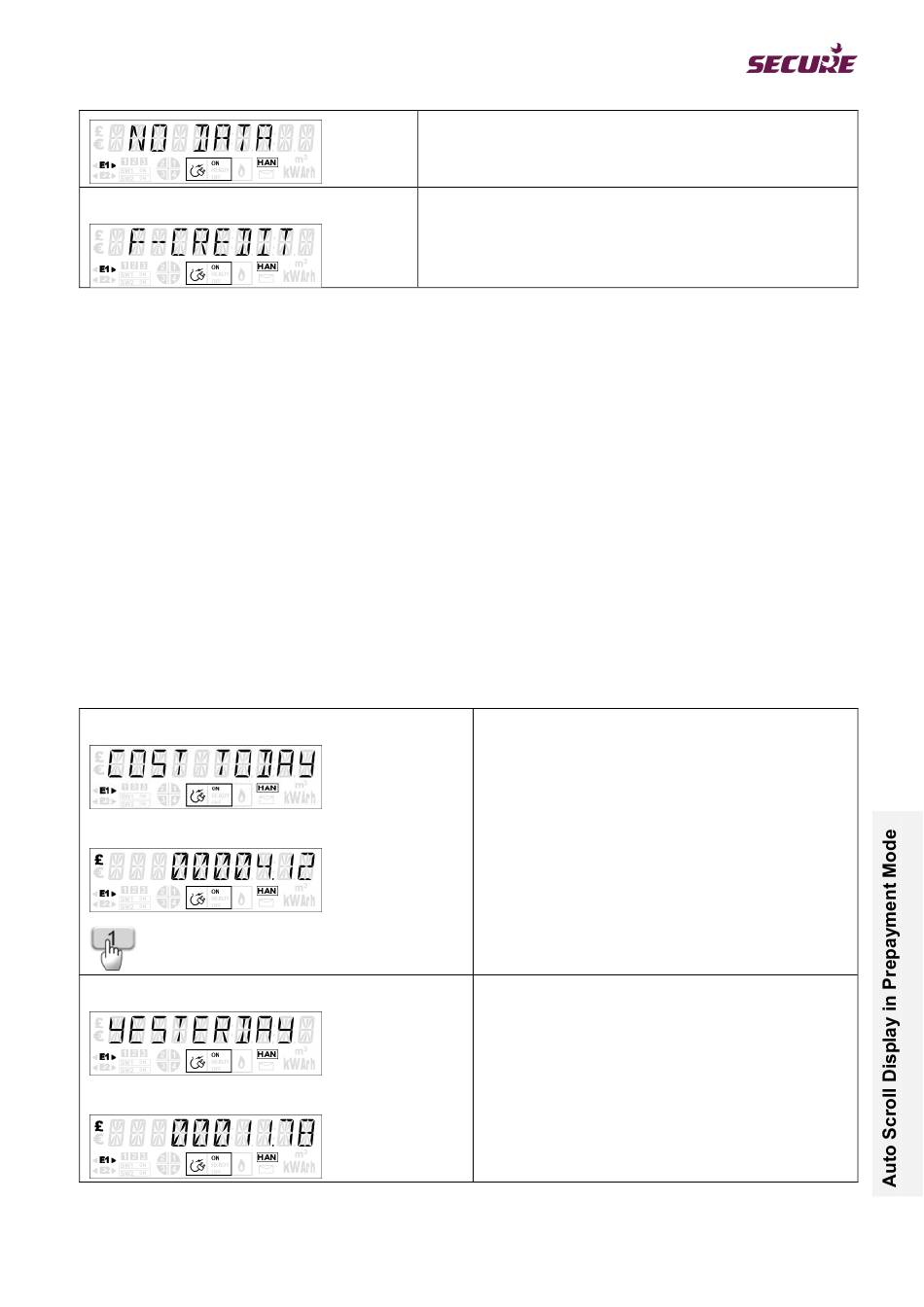

The 1 set of displays associated with key 1
indicating the cost of electricity used today since
midnight (00:00 GMT).
The example shows that £4.12 is the current cost of
electricity used.
nd
The 2 set displays the cost of electricity used
yesterday.
The example shows that £11.78 was the cost of
electricity used.
Page 71 of 116
