Secure Liberty 100 Technical Reference Manual page 59

Key 4: Historical monthly consumption data
A short press of key '4' will initiate the associated display sequence. After each set of information comprising a
title followed by its data, either a four (4) seconds wait or short press of the key will advance the display to the
next set of information as described below.
The display will sroll forward through tweleve (12) months historical consumption data starting with the last
month which is the same as the 'LAST MONTH' in the above Key 3 sequence. For example, if the current
month is 'August' the last month will be 'July' so the data sequence will begin from 'July' and end with 'August'.
Title 1: Historical monthly consumption data
Press key 4 to advance to the next display
Title 2: Last month's consumption and its cost
Followed by value
Followed by value
Press key 4 to advance to the next display
... ... ... ... ... ... ... ... ... ... ... ... ...
... ... ... ... ... ... ... ... ... ... ... ... ...
... ... ... ... ... ... ... ... ... ... ... ... ...
Press key 4 to advance to the next display
Title 3: Consumption and cost in 'August'
Followed by value
BGX501-767-R02
(timeout 2 secs)
(timeout 2 secs)
(timeout 4 secs)
(timeout 4 secs)
(timeout 2 secs)
(timeout 4 secs)
Liberty 100 Smart Electricity Meter Technical Reference Manual
st

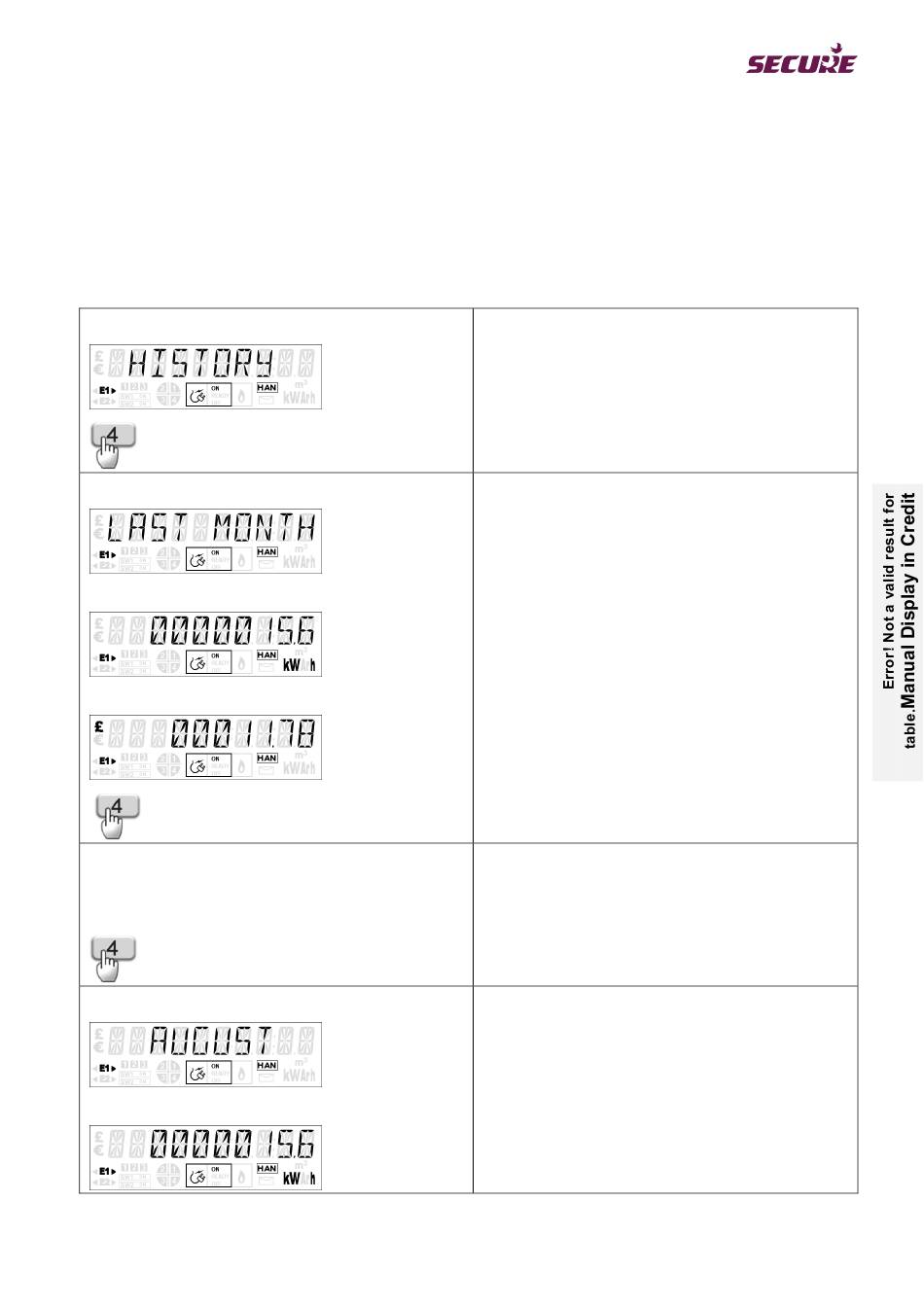

The 1 display associated with key 4 indicating that
the key is assigned to display historical monthly
consumption for the past twelve (12) months.
nd
The 2 set displays consumption data for the last
month.
The example shows that 15.6 kWh was used last
month and its associated cost was £11.78.
The displays will continue to cycle through each
previous month's consumption data.
The last display in the sequence indicating
consumption data in the month of 'August'.
The example shows that 15.6 kWh was used in the
month and its associated cost is £11.78.
Page 59 of 116
