7.2 Manual Display in Credit Mode

The keypad of the meter is used to view information specific to the meter's current operating mode. In 'Credit'
mode each numeric key is assigned to display a set of information; key 'A' and key 'B' are assigned to perform
additional functions as described in the subsequent content.
In a display cycle, data is preceded by its title; default timeout for each title display is two (2) seconds and for
the data its four (4) seconds. The following displays are configured at the manufacture and can be changed by a
configuration change.

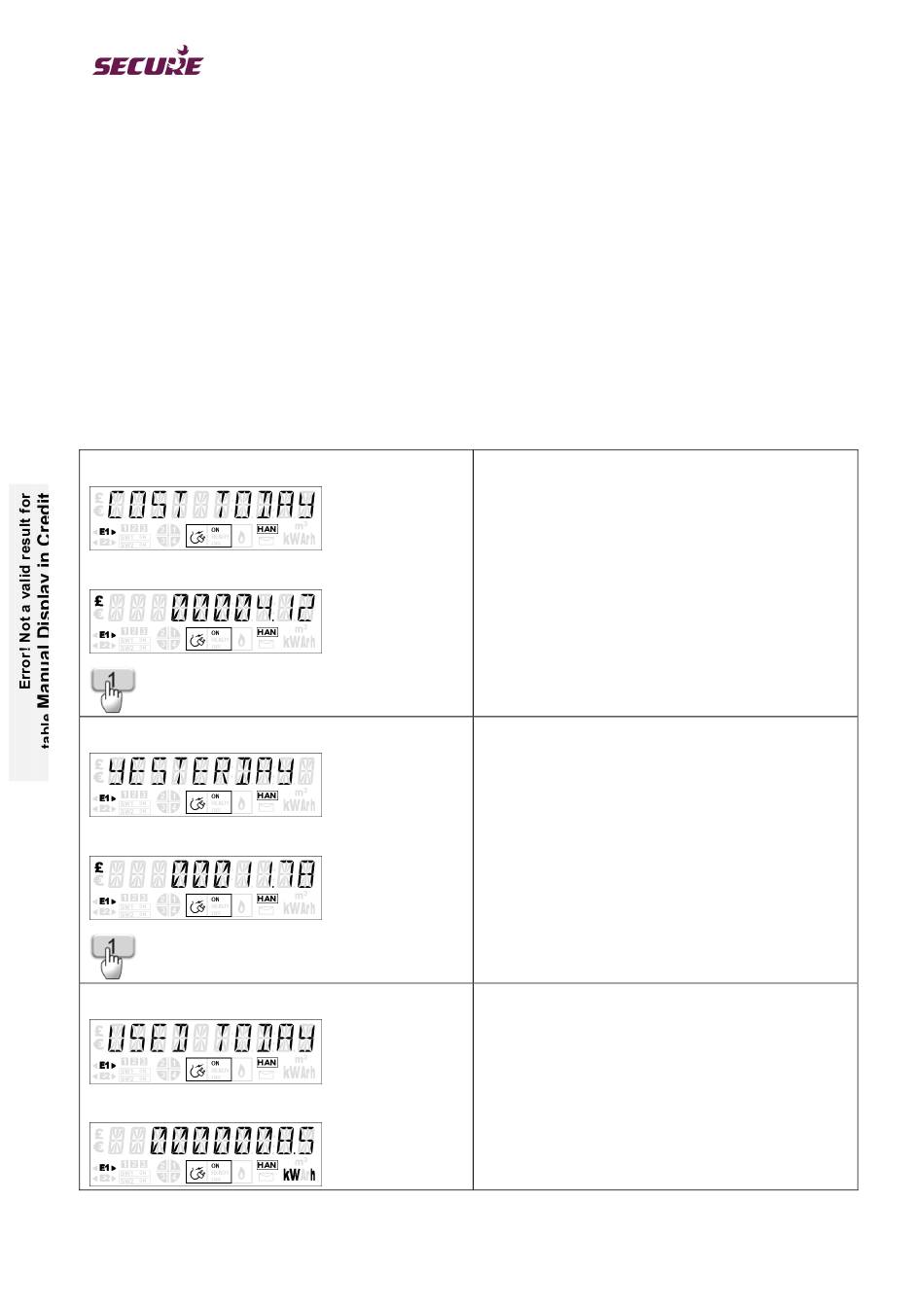

Key 1: Current day and previous day cost of consumption
A short press of key '1' will initiate the associated display sequence. After each set of information comprising a
title followed by its data, either a four (4) seconds wait or short press of the key will advance the display to the
next set of information as described below.
Title 1: Current day's cost
Followed by value
Press key 1 to advance to the next display
Title 2: Previous day's cost
Followed by value
Press key 1 to advance to the next display
Title 3: Current day usage
Followed by value
Page 56 of 116 Liberty 100 Smart Electricity Meter Technical Reference Manual
The 1
indicating the cost of electricity used today since
midnight (00:00 GMT).
(timeout 2 secs)
The example shows that £4.12 is the current cost of
electricity used.
(timeout 4 secs)
The 2
yesterday.
The example shows that £11.78 was the cost of
(timeout 2 secs)
electricity used.
(timeout 4 secs)
The 3
since midnight.
The example shows that 8.5 kWh has been used
(timeout 4 secs)
today.
(timeout 4 secs)
st
set of displays associated with key 1
nd
set displays the cost of electricity used
rd
set displays the electricity consumption today
