a) Account related (valid in Prepayment mode) – the switch will open when the account balance reaches
the cut-off threshold or Emergency Credit is exhausted and will change to 'READY' state if sufficient
credit is added.
b) Tamper related (valid for Prepayment and Credit mode) – the switch will open (if configured to do so)
when the meter detects tamper related events.
c) Back-office instructions (valid for Prepayment and Credit mode) – the switch can be opened or changed
to 'READY' state remotely from the supplier back-office.
d) Load limit exceed - the switch will open (if configured to do so) when Load exceeds a defined threshold
and returns to 'READY' state.
e) Change of supplier or change of tenancy.
The switch is actively driven to its intended state, thereafter it will change depending on the above events. In
power outage event, the meter will resume the same state it was in before the power outage when the supply is
restored.

5.15.1 'READY' state

For safety reasons a 'READY' state is supported between the supply off and on states. This gives the User the
control to reconnect their supply from the meter or IHD when it is safe to do so (e.g. appliances are off). When
the meter's switch is in 'READY' state, the 'READY' icon will illuminate on the LCD and an appropriate message
will be displayed which signifies that the meter is ready to reconnect supply and is waiting for the user to press
the correct key sequence on the meter's keypad or IHD.

5.15.2 Closing the switch from the 'READY' state

When the switch is in the 'READY' state, the 'READY' icon will illuminate on the meter's LCD followed by the
messages 'PRESS A' and 'CONNECT'. Pressing key 'A' on the meter displays 'Press B' followed by
'CONFIRM'. Pressing key 'B' within 30 seconds of pressing key 'A' closes the switch and reconnects the supply
otherwise it will stay in the 'READY' state and the meter's display reverts back to 'PRESS A' followed by
'CONNECT' display sequence.

5.15.3 Supply switch connection displays

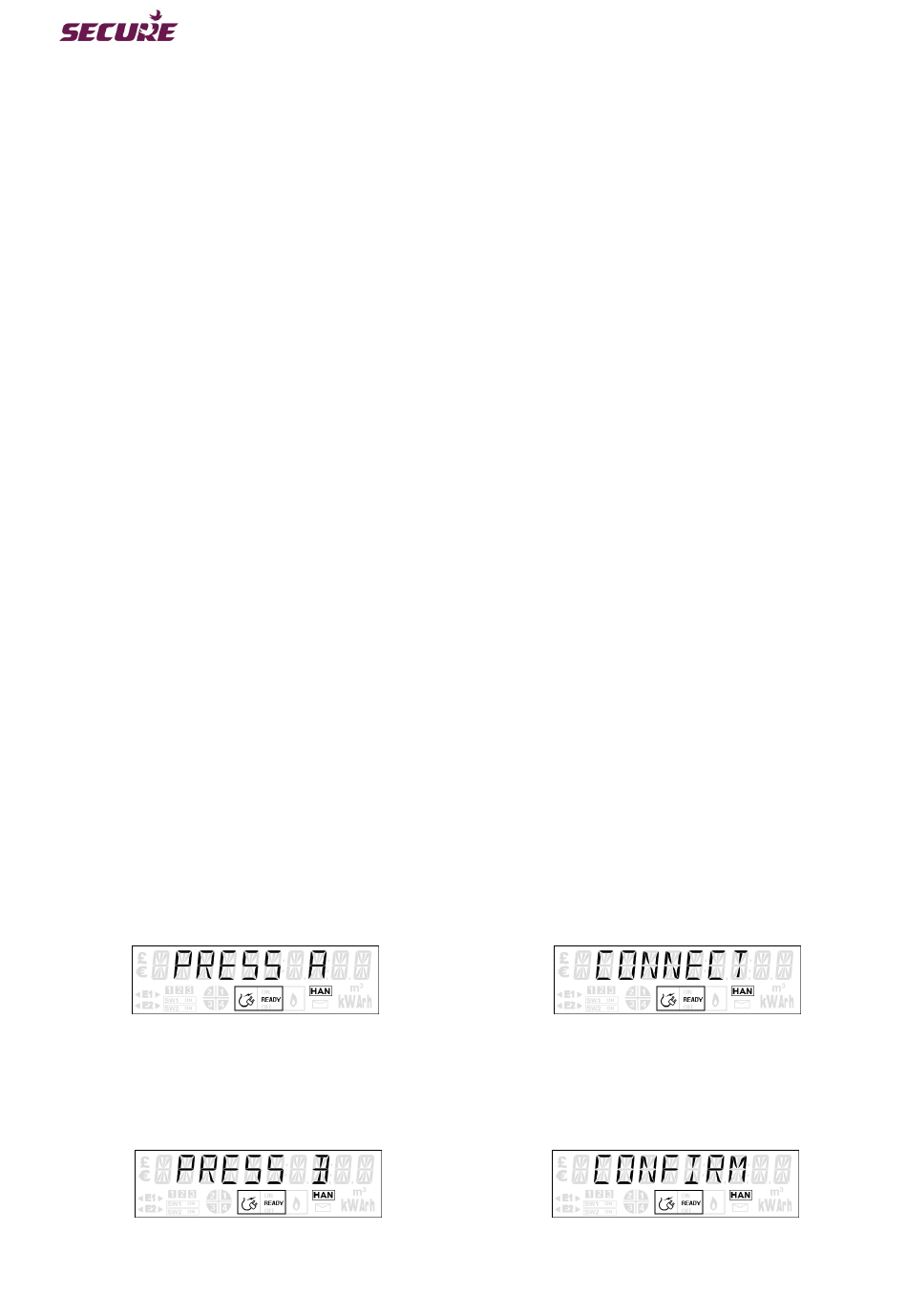

1. READY mode display cycle
When the meter's switch is in the READY state, the following display sequence will be shown for the user to
connect their supply.
Acknowledge the above message by pressing key 'A' within 10 seconds, otherwise the display goes into sleep
mode and will return by pressing any key on the meter's keypad.
2. Confirmation display cycle
After pressing key 'A', the following confirmation display cycle will be shown for 30 seconds:
