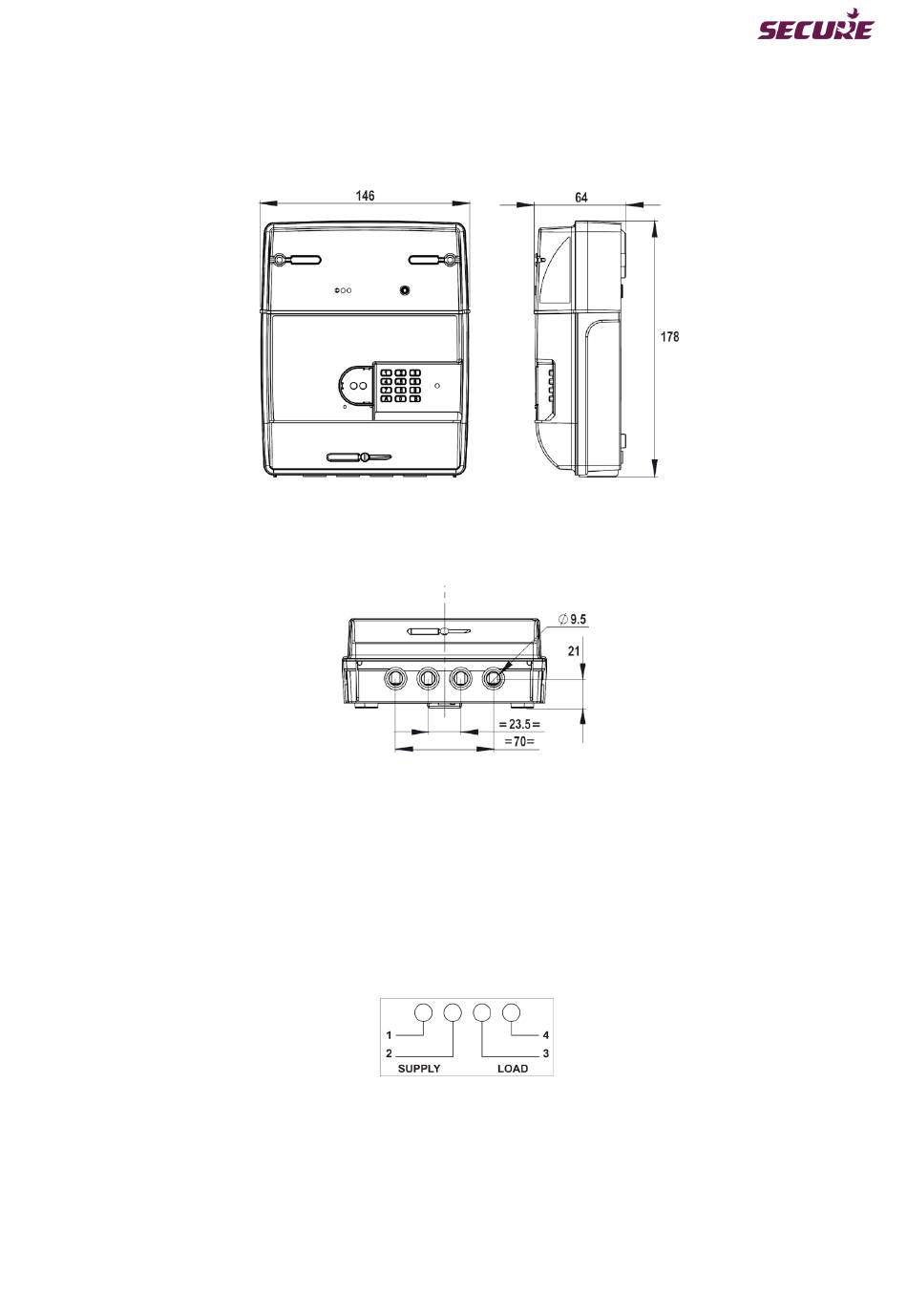

4.3 Liberty 100 Dimension
The following diagram shows the outer dimensions of the Liberty 100 with the hub. All dimensions are in
millimetres (mm):
Figure 10: Liberty 100 front and side views
The following diagram shows the terminal bore diameter, the distance between each terminal and the distance
between the outer terminals:
Figure 11: Liberty 100 terminal bores at the bottom
Note: For wiring convenience, terminal numbers are moulded from 1 through 4 at the front on the meter base
near the terminal block area.
4.4 Connection Diagram
The following connection diagram is also marked on the inside of the terminal block cover (refer to Figure 6).
Figure 12: Liberty 100 connection diagram
BGX501-767-R02
Liberty 100 Smart Electricity Meter Technical Reference Manual
Page 21 of 116
