Supply READY icon is displayed
when the user is allowed to restore the
supply.

3.3.2 Financial Display

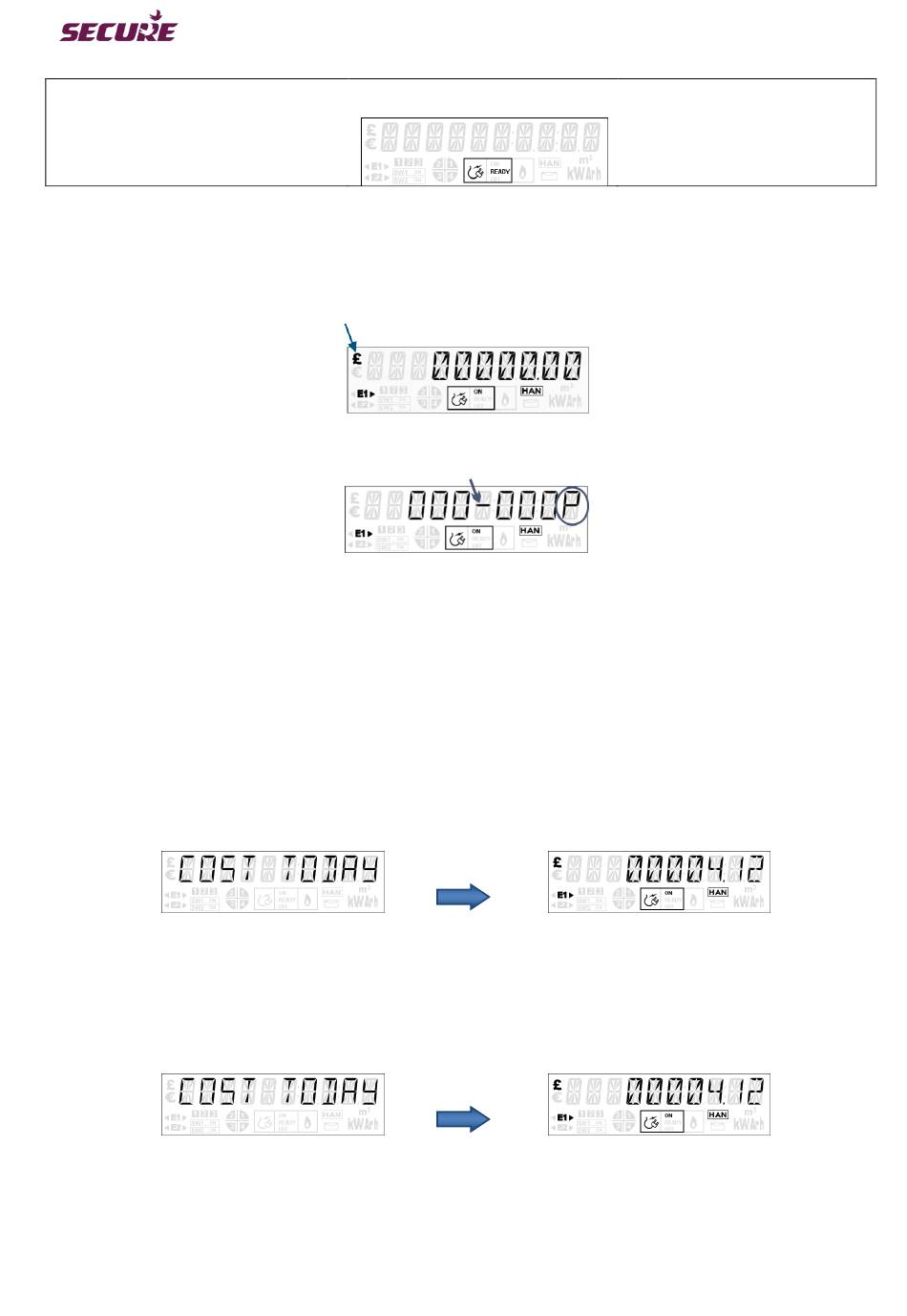

Financial information is displayed in pounds and pence. Most numerical displays use the decimal points
predefined in the display graphics as shown below:
Displays with text on the right-hand side will use a hyphen ('–') as a decimal point. For example, the numeric
display in the following example should be read as '000.000 pence'.

3.3.3 Display Timing

When the meter is powered, its display will cycle through a sequence of information by default. The keypad can
be used to view specific information. Display timings are preconfigured for each data item in a display sequence
with each item being preceded by a relevant title as shown in the following examples.
Auto Scroll display timing:
In auto scrolling display mode, the title and data are each displayed for two (2) seconds. After completing a
cycle, the display will enter sleep mode. Auto display is resumed by pressing key 'B' from sleep mode.
Displayed for 2 seconds
Manual display timing:
In manual mode, a title is displayed for two (2) seconds followed by the data for four (4) seconds followed by the
next set of information. At the end of a complete cycle the display will return to its default auto scrolling display
mode.
Displayed for 2 seconds
Note: Default configurations in Auto Scroll and Manual Mode displays for Credit, Prepayment and Default
operating modes are detailed in Annexe-I: Meter Displays.
