3.3.1 Display Icons

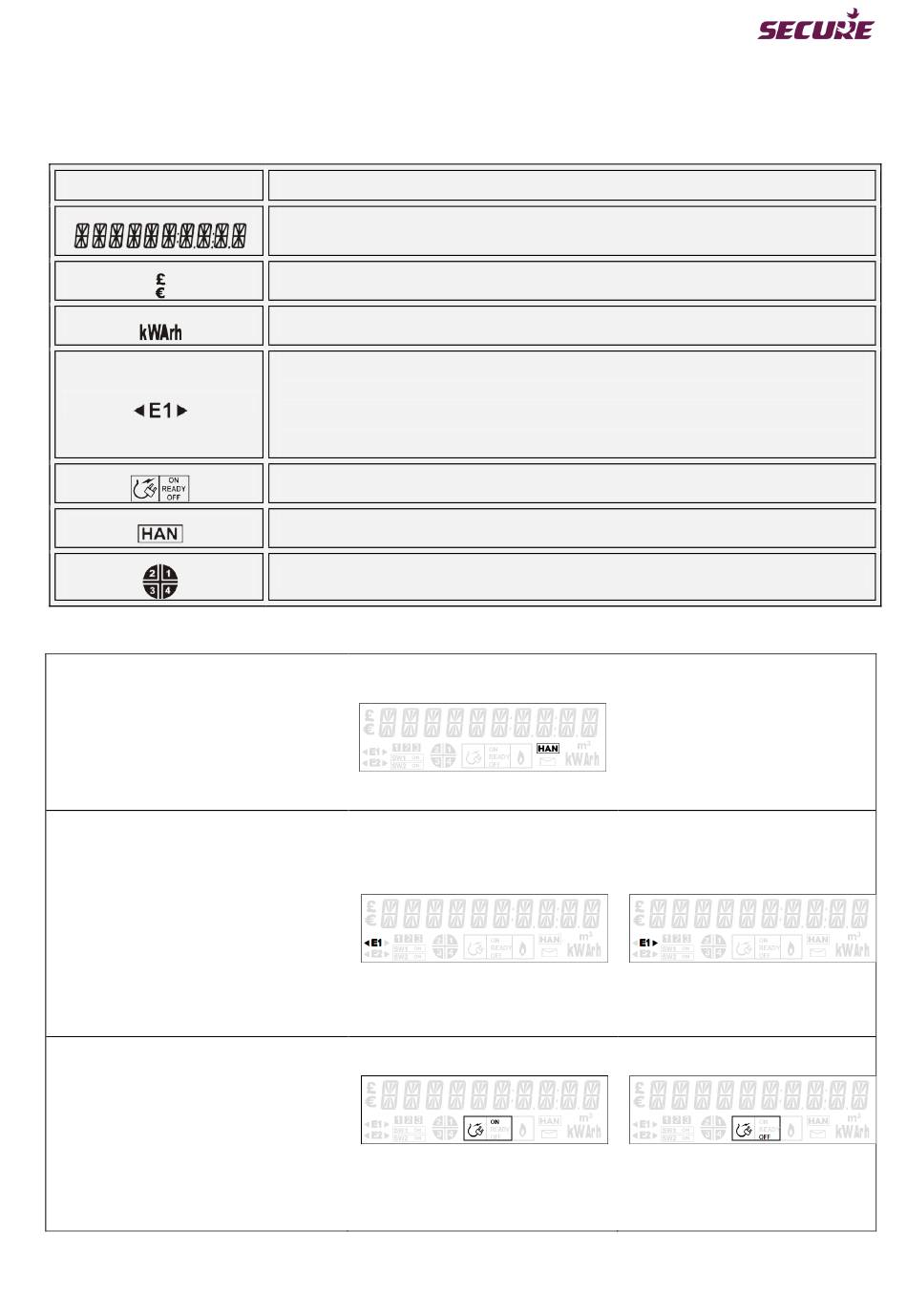

The following table lists the icons displayed on the meter LCD and their significance:
Display icon
HAN connection status:
A steady HAN icon indicates that the
meter is connected to HAN.
A flashing HAN icon indicates that the
meter is waiting to join HAN
E1 icon and energy direction icons:
As Liberty 100 is a single-element
meter the E1 icon will always be
displayed.
The energy flow icon is displayed to
indicate the flow of energy into
(Import) or out of (Export) the
household.
Supply status icon:
By default, Supply ON icon is
displayed which indicates that user's
supply is connected.
Supply OFF icon is displayed when
the user's supply is disconnected.
BGX501-767-R02
Significance
Displays numeric data such as energy consumption or a UTRN token number
during token entry or an alert or message.
Indicates currency in use
Indicates unit of energy
Indicates single current element and energy flow direction - into (import) or out
of (export) the household
► Symbol for import
◄ Symbol for export
Indicates the supply status – ON, READY, OFF
Indicates ZigBee connection status
Indicates energy quadrants
Table 1: Description of LCD icons
Export flow
Supply ON
Liberty 100 Smart Electricity Meter Technical Reference Manual
Import flow
Supply OFF
