Table 44: Key '9' Diagnostic Display In Prepayment Mode - Secure Liberty 100 Technical Reference Manual

Followed by UTRN
Subtitle: Vend 2 transaction (if there are any)
Followed by vend amount
Followed by vend date
Followed by vend time
The UTRN is then displayed as above.
Press key 9 to return to the 1
Press key B to scroll back up the display list.
Press key A to resume the auto-cycle display.
BGX501-767-R02
(timeout 4 secs)
(timeout 2 secs)
(timeout 2 secs)
(timeout 2 secs)
(timeout 4 secs)
st
display.

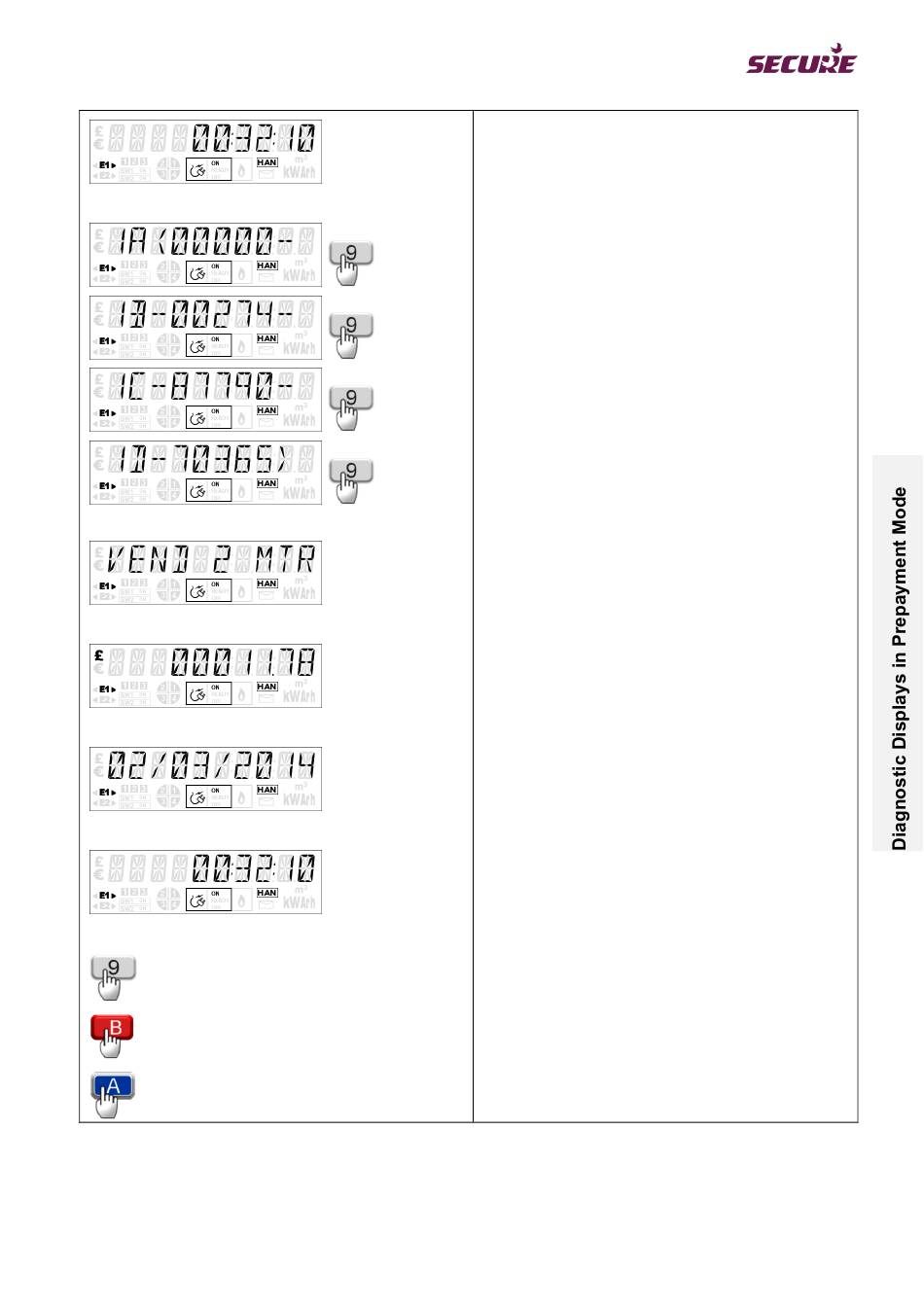

Table 44: Key '9' Diagnostic display in Prepayment mode

Liberty 100 Smart Electricity Meter Technical Reference Manual
20-digit UTRN
Each press of the button will display the last five vend
codes accepted by the meter starting with the most
recent. Each code is displayed in blocks of five digits.
The first two characters on the left are for reference.
The first character indicates the number of the code
(1, 2, 3, 4, or 5) the second the block of code (A, B,
C, and D) for a 20-digit code and A, B, C, D, E, F, G
and H for a 40-digit code and A, B, C, D, E, F, G, H,
I, J K and L for a 60-digit code. The start of a code is
indicated by a '<' and the end by a '>'. A '-' is inserted
after each block as a separator. Each subsequent
press of button '4' will display the next block of code
till all have been displayed.
If there are more than one historical UTRN then
pressing key 9 again will reveal the subsequent
UTRN's details as shown in the example.
Page 109 of 116
