Press key B to scroll back up the display list.
Press key A to resume the auto-cycle display.
Key 7: Total cash added
Title 1: Total Cash added to the meter account in the
current transaction
Followed by value
Press key 7 to return to the 1
Press key B to scroll back up the display list.
Press key A to resume the auto-cycle display.
Key 8: Emergency Credit limit
Title 1: Emergency Credit
Followed by value
Press key 8 to return to the 1
Press key B to scroll back up the display list.
Press key A to resume the auto-cycle display.
BGX501-767-R02

Table 41: Key '6' Diagnostic display in Prepayment mode

(timeout 2 secs)
(timeout 4 secs)
st
display.

Table 42: Key '7' Diagnostic display in Prepayment mode

(timeout 2 secs)
(timeout 4 secs)
st
display.

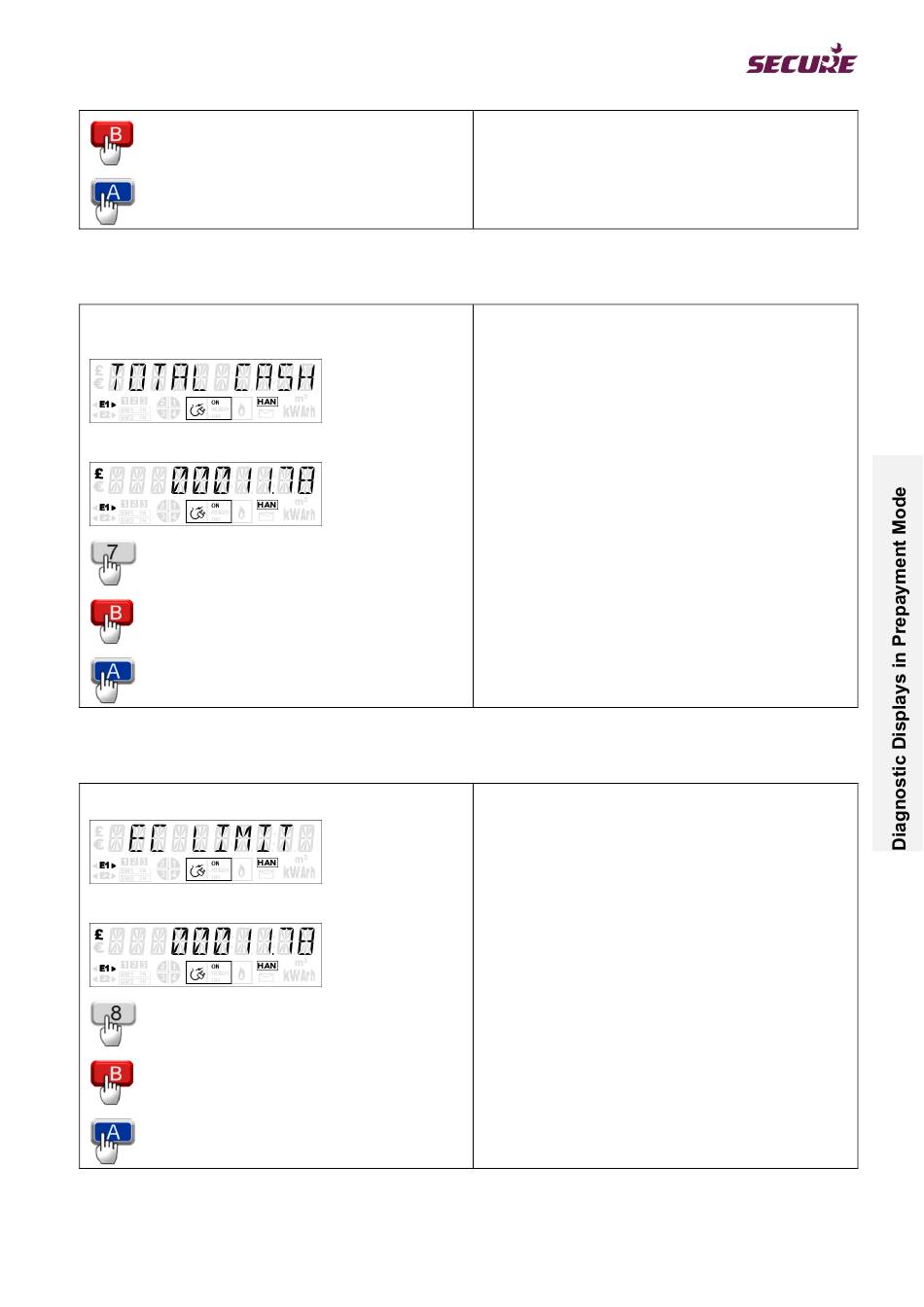

Table 43: Key '8' Diagnostic display in Prepayment mode

Liberty 100 Smart Electricity Meter Technical Reference Manual
Key 7 displays the total cash added to the meter's
account.
The example shows that £11.78 has been added to
the meter's account to date.
Key 8 displays the Emergency Credit limit.
The example shows that £11.78 is the current
Emergency Credit limit.
Page 107 of 116
