Table 38: Key '3' Diagnostic Display In Prepayment Mode - Secure Liberty 100 Technical Reference Manual

Key 3: Maximum demand value and logging date and time
Title 1: Maximum demand value
Followed by value
Press key 3 to advance to the next display
Title 2: Maximum demand logging date
Followed by value
Press key 3 to advance to the next display.
Title 3: Maximum demand logging time
Followed by value
Press key 3 to return to the 1
Press key B to scroll back up the display list.
Press key A to resume the auto-cycle display.
Page 104 of 116 Liberty 100 Smart Electricity Meter Technical Reference Manual
(timeout 2 secs)
(timeout 4 secs)
(timeout 2 secs)
(timeout 4 secs)
(timeout 2 secs)
(timeout 4 secs)
st
display.

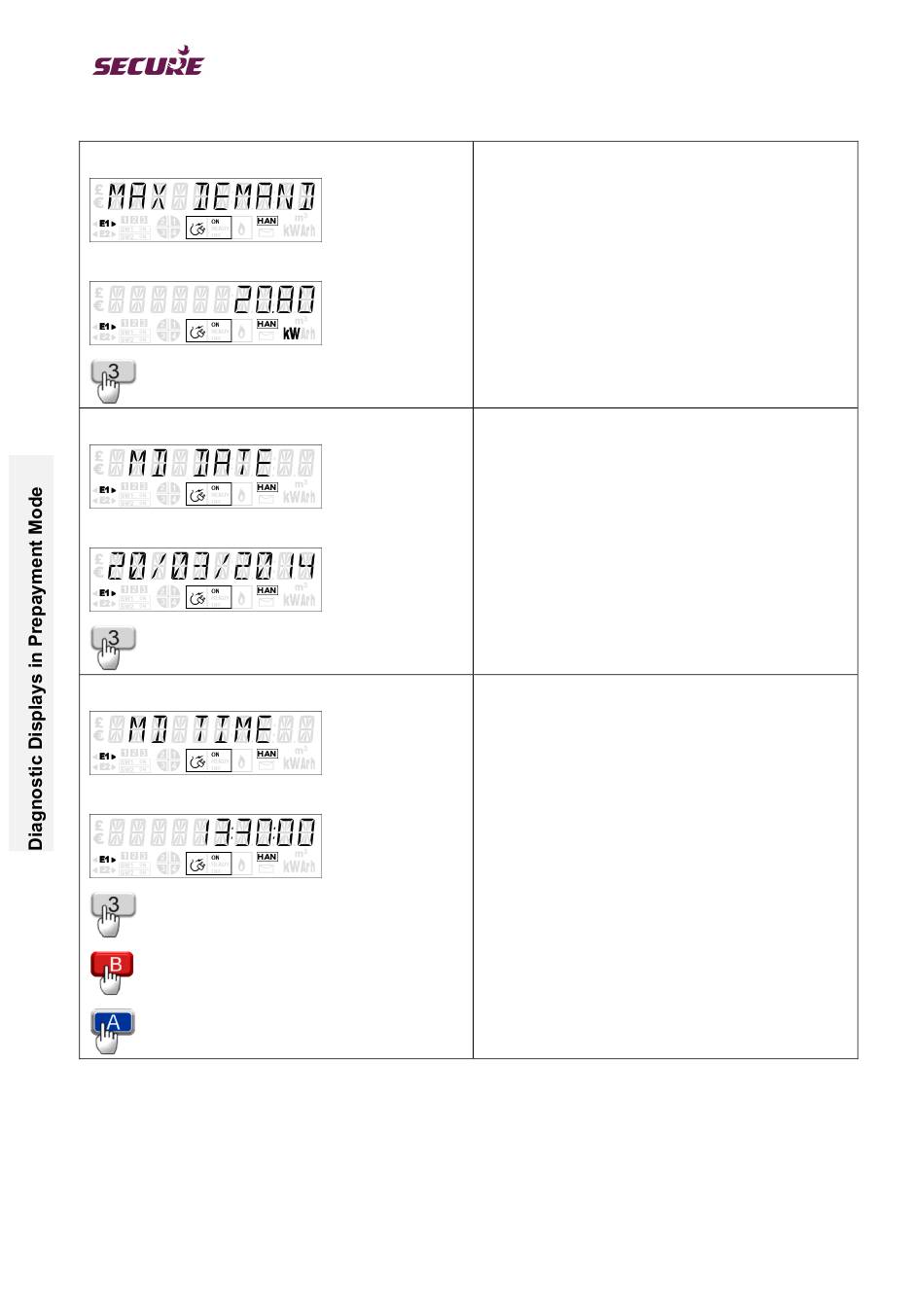

Table 38: Key '3' Diagnostic display in Prepayment mode

st
The 1 set of displays associated with key 3
indicating the current maximum demand (MD) value.
The example shows that 20.80 kW is the current MD
value.
nd
The 2 set displays the maximum demand logging
date.
The example shows that 20/03/2014 is the current
MD logging date.
rd
The 3 set displays indicating the maximum demand
logging time.
The example shows that 13:30:00 is the current MD
logging time.
