Followed by value
Press key 6 to return to the 1
Press key B to scroll back up the display list.
Press key A to resume the auto-cycle display.
Key 7, Key 8, Key 9 and Key 0: No functions allocated

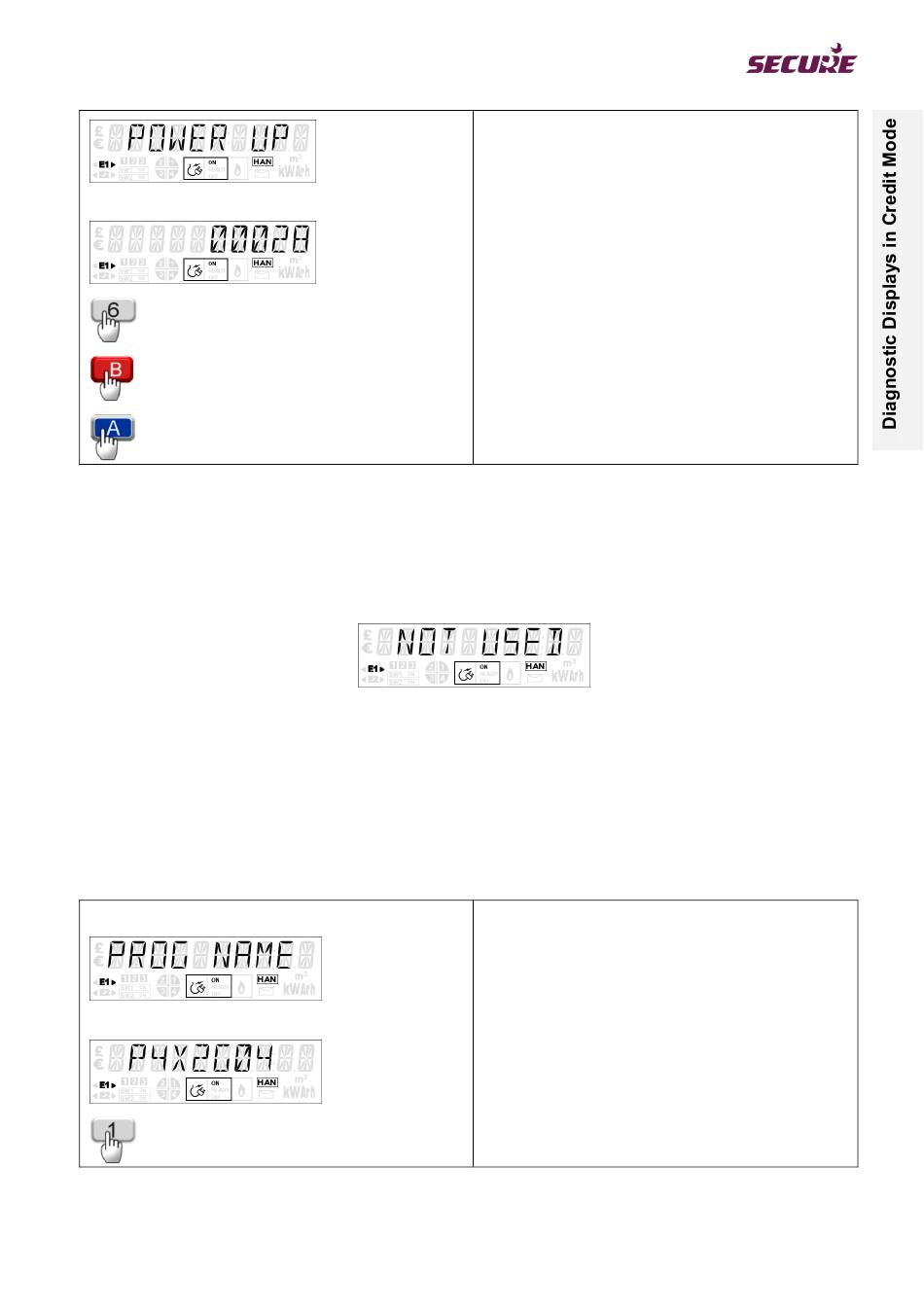

No functions are allocated to these three keys when the meter is operating in Credit mode. A short press of any
of these key will display 'Not Used' as shown below:

8.2 Diagnostic Displays in Prepayment Mode

In this mode a short press of a numeric key will initiate the associated display sequence. After each set of
information comprising a title followed by its value, either a four (4) seconds wait or short press of the key will
advance the display to the next set of information as described below.
Key 1: Application firmware identification
Title 1: Program name
Followed by value
Press key 1 to advance to the next display
BGX501-767-R02
(timeout 2 secs)
(timeout 4 secs)
st
display.

Table 35: Key '6' Diagnostic display in Credit mode

(timeout 2 secs)
(timeout 4 secs)
Liberty 100 Smart Electricity Meter Technical Reference Manual
The example shows that the meter has been
powered up 28 times.
st
The 1 set of displays associated with key 1 identifies
the meter application firmware (CLEM).
The example shows that P4X2G04 is the current
application firmware in which '04' is the version
number.
Page 101 of 116
