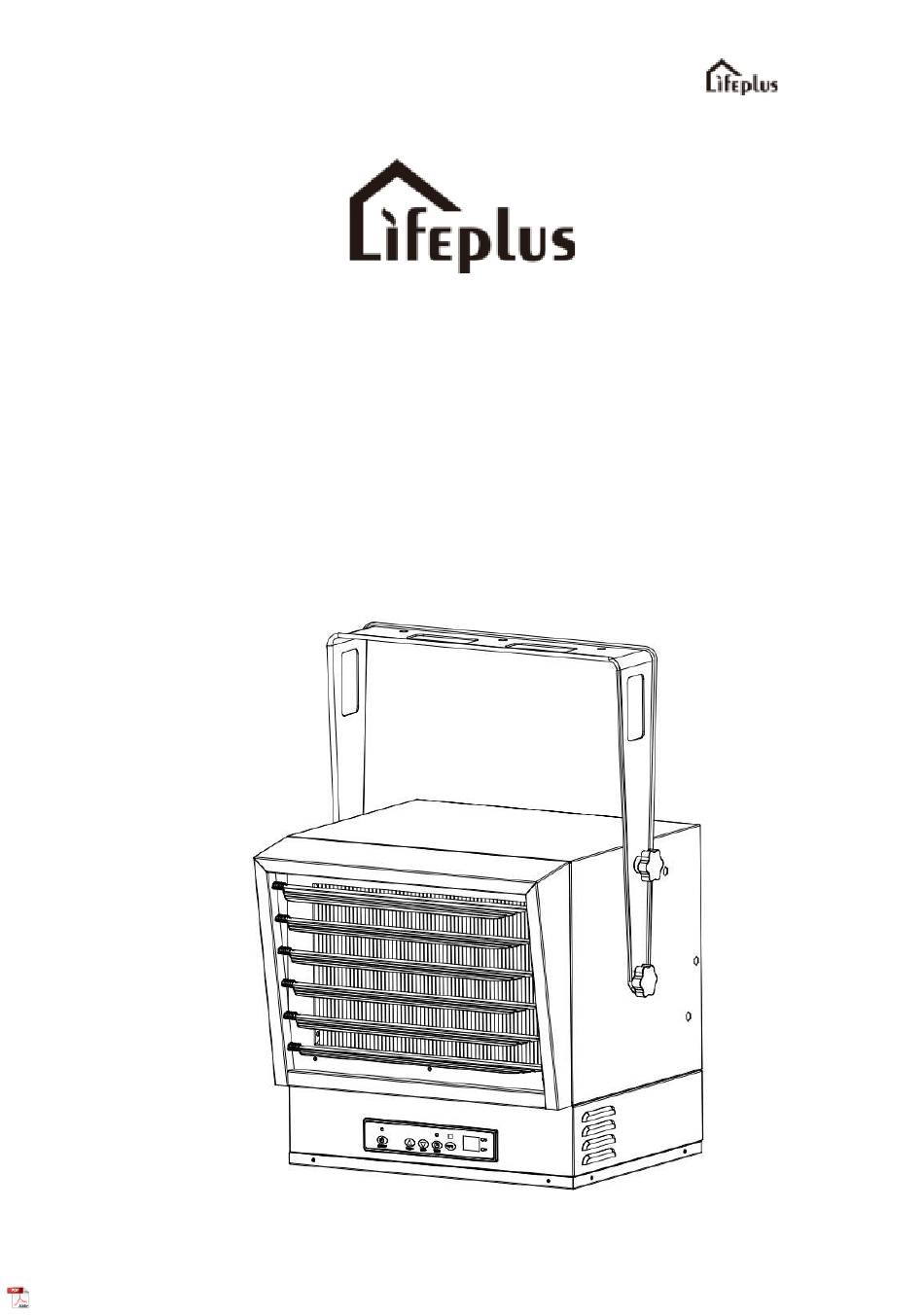

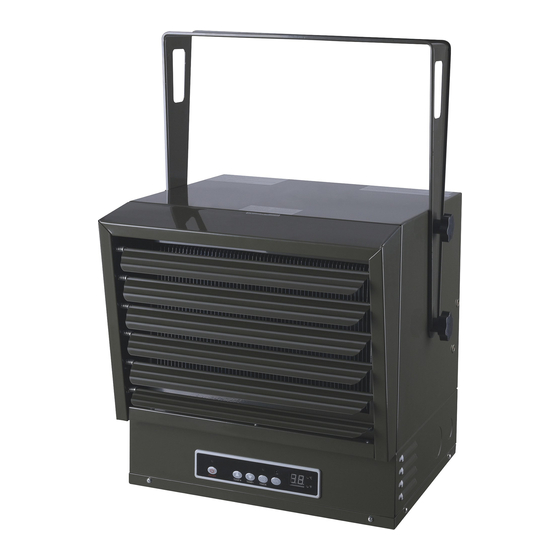

- Page 1 IFH11A-100 INSTRUCTION MANUAL Digital Fan-Forced Ceiling Mount Heater with Remote Model no. IFH11A-100...
-
Page 2: Technical Specifications
IFH11A-100 IMPORTANT: Please read this manual carefully before running this garage heater and save it for reference. NOTE: This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product. DESCRIPTION Electric utility heaters are designed to meet a variety of heating requirements by switching a few wires located in the base of the unit. -
Page 3: Important Instructions
IFH11A-100 WARNING: This appliance must be grounded! The appliance must be connected to a current protection circuit or device with 50 amp before being connected to power supply! IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read all instructions before installing or using this heater. -
Page 4: General Safety Information
IFH11A-100 PET OWNERS WARNING: The health of some small pets, including birds, are extremely sensitive to the fumes produced during the initial use of many appliances. These fumes are not harmful to humans but we recommend that you do not use your heater around birds and small pets during its initial use until the manufacturing anti-corrosion coatings burn off. -
Page 5: Locating Heater
IFH11A-100 LOCATING HEATER Install heater out of traffic areas, maintaining clearances stated in Figure 1. The direction of airflow should not be restricted is by columns or machinery and the airflow should avoid exposed walls rather than blowing directly on them. - Page 6 IFH11A-100 You will need the following hardware, which can be purchased from your local hardware store or electrical supply house: • Adequate gauge and length of wire for your application. • Proper size fuse or breaker to handle amperage.
-
Page 7: Connecting The Power
IFH11A-100 CONNECTING THE POWER Figure 7: Wiring diagram TO PROTECT THE HEATING ELEMENT The heater includes a fan delay function to prevent risk of overheating. When turning the heater off, the unit will close the heating element first and then the fan will continue working for 90 seconds to dissipate residual heat. - Page 8 IFH11A-100 OPERATING INSTRUCTIONS TRUCTIONS IN NORMAL MODE Power button You can use the ON/OFF button or remote control,Hot Start. TEMP Up/Down buttons Timer selection When pressing TIMER increase 1 hour TIMER time and green light on top, 1 to 12 hours cycle settings, when the device shows 12 hours and then click show 00, indicating the TIMER off then Flash 5 times to show the environment temperature.
-
Page 9: Remote Control
IFH11A-100 REMOTE CONTROL Remote control has the same functions as the control panel on the heater. 1 Power (on/off) 2 TEMP UP 3 TEMP DOWN 4 TIMER 5 ºC/ºF display Once the room temperature reaches the set point, the heater will automatically stop running. -
Page 10: Limited Manufacturer Warranty
Lifeplus, as the manufacturer). Any extended warranties (warranties that cover above and beyond this manufacturer warranty) that are sold through a retailer or third party, are not directly correlated with this Lifeplus limited warranty, and may be redirected to said retailer or third party for coverage.
