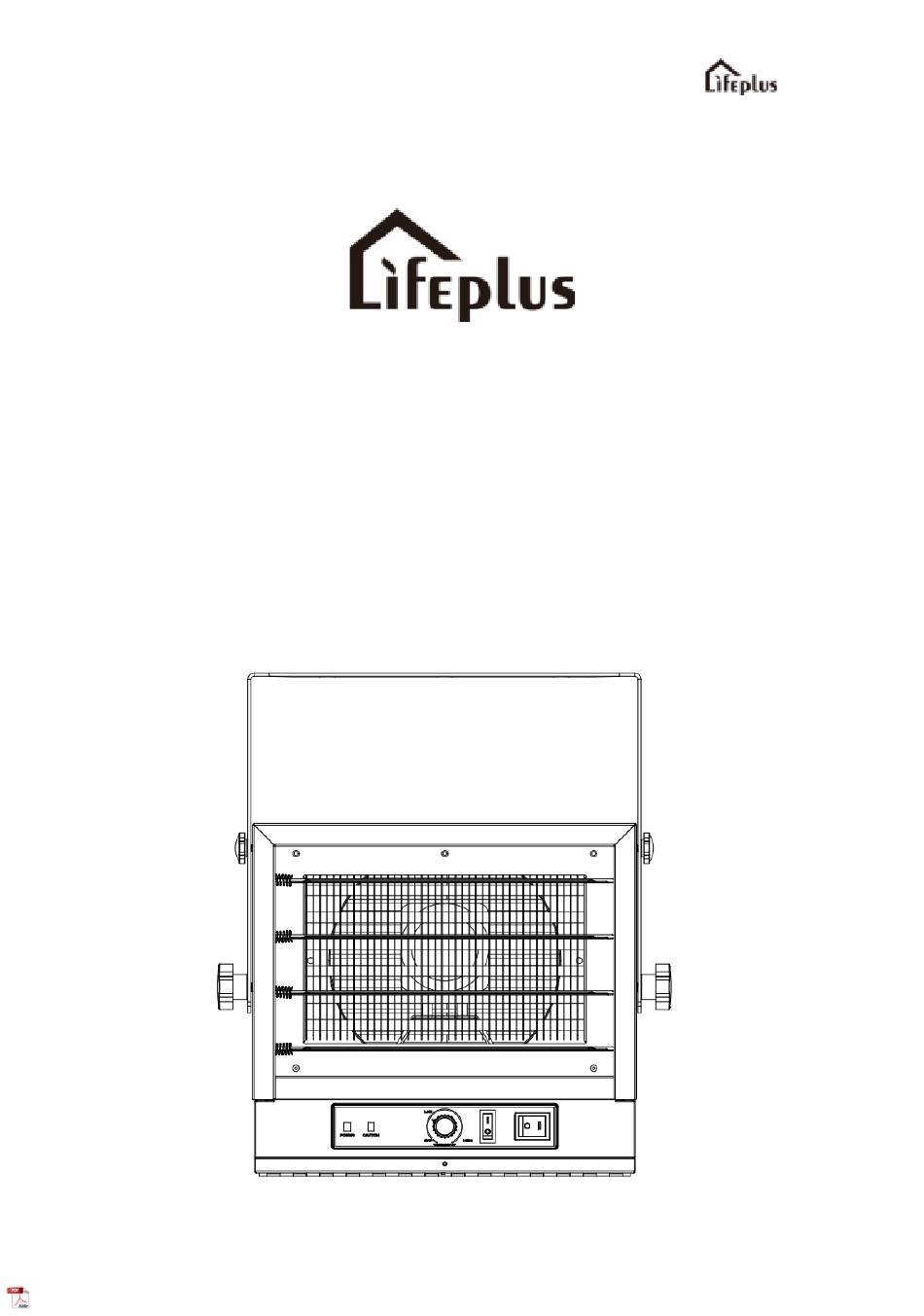

- Page 1 IFH11A-75 INSTRUCTION MANUAL Digital Fan-Forced Ceiling Mount Heater model no. IFH12A-75...
-
Page 2: Technical Specifications
model no. IFH12A-75 IMPORTANT: Please read this manual carefully before running this garage heater and save it for reference. NOTE: This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product DESCRIPTION Electric utility heaters are designed to meet a variety of heating requirements by switching a few wires located in the base of the unit. -
Page 3: Important Instructions
model no. IFH12A-75 This appliance must be grounded! The appliance must be connected to a current protection circuit or device with 50 amp before being connected to power supply! IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read all instructions before installing or using this heater. -
Page 4: General Safety Information
model no. IFH12A-75 SAVE THESE INSTRUCTIONS GENERAL SAFETY INFORMATION 1. Use only copper wires rated for at least 75ºC. 2. Heater airflow must be directed parallel to or away from adjacent wall. 3. Observe wall, floor and ceiling clearance requirements. 4. -
Page 5: Locating Heater
model no. IFH12A-75 LOCATING HEATER Install heater out of traffic areas, maintaining clearances stated . The direction of airflow should not be restricted is by columns or machinery and the airflow should avoid exposed walls rather than blowing directly on them. When more than one heater is used in an area, the heaters should be arranged so that the air discharge of each heater supports the airflow of the others to provide best circulation of warm air as indicated. -
Page 6: Installation Instructions
model no. IFH12A-75 INSTALLATION INSTRUCTIONS HARDWARE NEEDED You will need the following hardware, which can be purchased from your local hardware store or electrical supply house: • Adequate gauge and length of wire for your application. • Proper size fuse or breaker to handle amperage. •... - Page 7 model no. IFH12A-75 ADJUSTING AIRFLOW DIRECTION 1. To turn the unit when it has been installed with a single lag bolt, simply turn the entire heater as needed. The unit cannot be turned horizontally if it has been installed with 2 lag bolts. 2.
- Page 8 model no. IFH12A-75 CONNECTING THE POWER Wiring diagram...
- Page 9 model no. IFH12A-75 NOTE: All wiring must be carried out by a certified electrician and must be in accordance to applicable national and local electrical codes. For certain applications, conduit may be required. Check local electrical codes. If you run the wiring in conduit and wish to be able to turn the heater be sure to purchase enough flexible conduits to allow the heater to be turned.
- Page 10 model no. IFH12A-75 1.Power indicator Yellow 2.CAUTIONindicator Red 3 Temperature control 4 Switch 1 5 Switch 2 INSTRUCTIONS IN NORMAL MODE Power indicator Yellow The power indicator lights up when the product is powered on CAUTIONindicator Red When the internal temperature of the product is too high and the temperature limiter is disconnected, the fault lamp lights up Temperature control...
-
Page 11: Cleaning And Maintenance
Lifeplus, as the manufacturer). Any extended warranties (warranties that cover above and beyond this manufacturer warranty) that are sold through a retailer or third party, are not directly correlated with this Lifeplus limited warranty, and may be redirected to said retailer or third party for coverage. - Page 12 This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. The purchaser must present Lifeplus with proof of purchase documents (including the date of purchase) if requested. Any evidence of alteration, erasing, or forgery of proof of purchase documents will be just cause to VOID this limited warranty.
