Summary of Contents for LIFEPLUS IFH12A-50

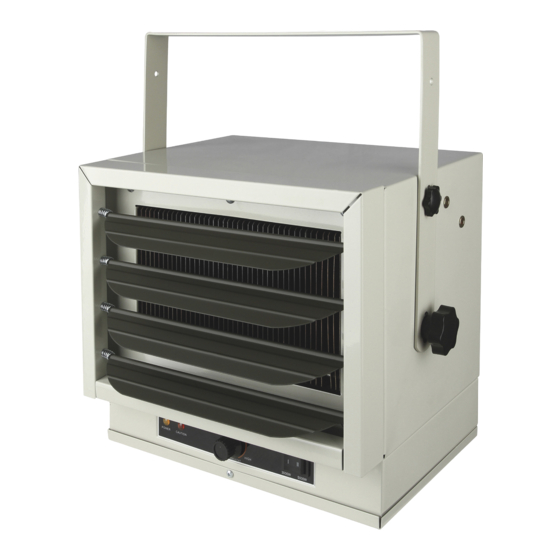

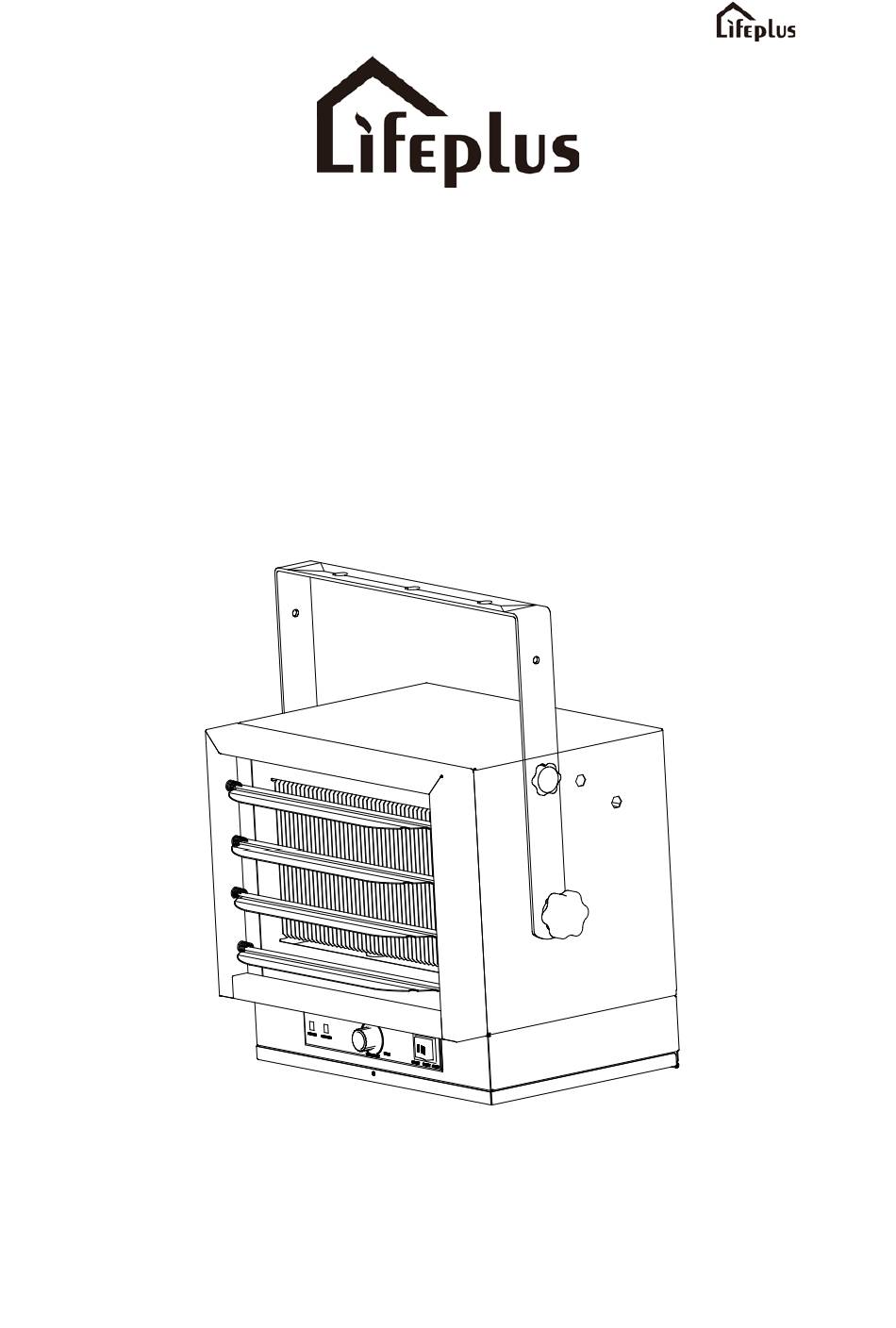

- Page 1 IFH12A-50 INSTRUCTION MANUAL INSTRUCTION MANUAL Fan Forced Ceiling Mount Heater Model no. IFH12A-50...
-
Page 2: Important Instructions
IFH12A-50 IMPORTANT: Please read this manual carefully before running this garage heater and save it for reference. NOTE: This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire,... -
Page 3: Technical Specifications
IFH12A-50 SAVE THESE INSTRUCTIONS DESCRIPTION Electric utility heaters are designed to meet a variety of heating requirements by switching a few wires located in the base of the unit. Features horizontal and vertical airflow, built-in thermostat and overheating safety thermal cut-out. -
Page 4: Locating Heater
IFH12A-50 The heater must be grounded as a precaution against possible electrical shock. Heater circuit must be protected with proper fuses. 5. The mounting structure and the anchoring hardware must be capable of supporting the weight of the heater and the mounting bracket (if used). -
Page 5: Installation
IFH12A-50 INSTALLATION MOUNTING THE BRACKET 1. Locate a wood stud in the wood ceiling joist. If you cannot locate a wood stud, you have to install a wood piece on the ceiling as this heater must be securely fastened. -
Page 6: Hanging The Heater
IFH12A-50 2. Remove the mounting bracket from the heating unit by loosening bracket screws with a wrench and slipping the handle off over the screw heads. 3. Place a washer on screws before inserting through the holes in the mounting bracket and screw them securely into a ceiling joist. -
Page 7: Connecting The Power
IFH12A-50 Figure 5 CONNECTING THE POWER Warning: This appliance must be grounded! Warning: The appliance must connect to a current protection circuit or device at 50Amp or less before being connected to power supply! 1. Remove the screw from the front of the unit to connect the power to the heater. - Page 8 IFH12A-50 the United States. For certain applications conduit may be required See Figure 6. Check local electrical codes. If you run the wiring in conduit and wish to be able to turn the heater be sure to purchase enough flexible conduit to allow the heater to be turned.
- Page 9 IFH12A-50 Operating instructions 1.Power indicator Yellow 2..CAUTIONindicator Red 3 Temperature control switch 4 High Power 5 Low Power 6 Medium power TRUCTIONS IN NORMAL MODE Power indicator Yellow The power indicator lights up when the product is powered on...
-
Page 10: Adjusting Air Flow Direction
IFH12A-50 CAUTIONindicator is on. In this case, immediately turn the heater OFF and inspect for any objects on or adjacent to the heater that may cause high temperatures. DO NOT OPERATE THE HEATER WITH THE CAUTION INDICATOIR GLOWING RED. -
Page 11: Limited Manufacturer Warranty
Lifeplus, as the manufacturer). Any extended warranties (warranties that cover above and beyond this manufacturer warranty) that are sold through a retailer or third party, are not directly correlated with this Lifeplus limited warranty, and may be redirected to said retailer or third party for coverage.
