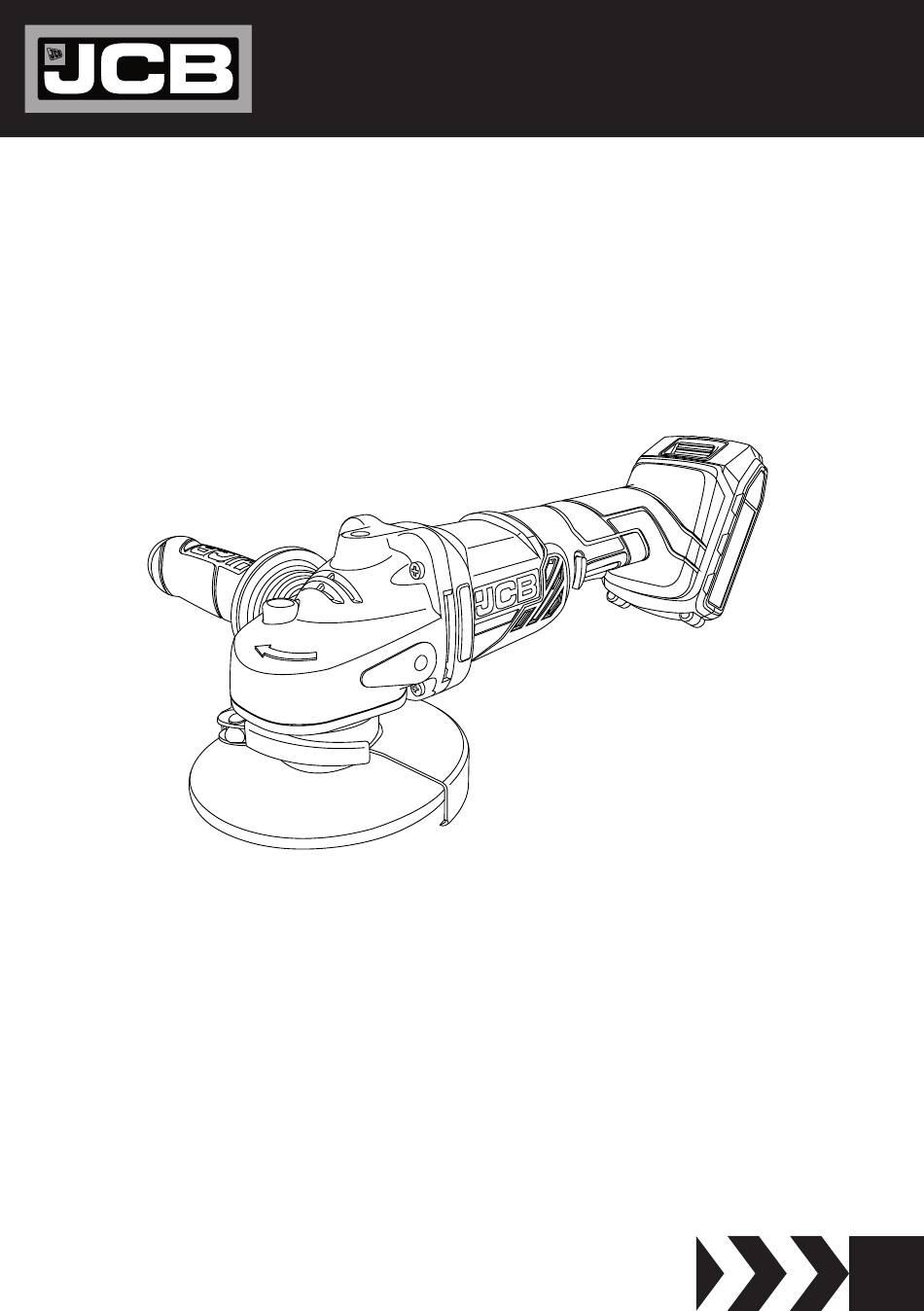

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL 21-18AG Original Instructions IM-18AG-EN Iss: 11/2022...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. 21-18AG Designation of the tool: 18 - 18Vdc, AG - Angle Grinder 21-18AG Instruction & User Manual...
-
Page 3: Table Of Contents
Intended Use Battery Auxiliary Handle Guard Changing Grinding Discs ON/OFF Trigger Surface Grinding Edge Grinding (Cutting) Surface Finishing with Sanding Flap Discs Maintenance Transport and Storage WARRANTY STATEMENT Terms and Conditions EU/UK DECLARATION OF CONFORMITY 21-18AG Instruction & User Manual... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 21-18AG Instruction & User Manual... -
Page 5: Power Tool Use And Care
Use of any other accessories, or storing power tools. Such battery packs may create a risk of injury and fire. preventive safety measures reduce the risk of starting the power tool accidentally. 21-18AG Instruction & User Manual... -
Page 6: Service
This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. 21-18AG Instruction & User Manual... -
Page 7: Tool Specific Safety Warnings
Cutting-Off operations are not cause them to shatter. recommended unless a fully enclosed blade guard is fitted. Operations for which the power tool was not designed may create a hazard and cause personal injury. 21-18AG Instruction & User Manual... - Page 8 Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. 21-18AG Instruction & User Manual...
-
Page 9: Kickback And Related Warnings
The operator can control torque reactions or kickback forces, if proper precautions are taken. Never place your hand near the rotating accessory. Accessory may kickback over your hand. 21-18AG Instruction & User Manual... - Page 10 Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control. 21-18AG Instruction & User Manual...
-
Page 11: Charger Safety
CHARGER SAFETY JCB battery chargers are designed WARNING! to operate on 230-240V AC input voltage (Note: the dual charger can Read all safety warnings, instructions additionally operate on 100-240 AC and specifications provided with the input voltage). Do not attempt to use charger. -
Page 12: Component List
ADJUSTABLE GUARD TOOL FREE LOCKING NUT GRINDING DISC LOWER PLATE BATTERY RELEASE BUTTON CHARGER* BATTERY PACK* - PLEASE REFER TO TABLE ON PAGE 13 FOR BATTERY INFORMATION BATTERY TEST BUTTON AND CHARGE INDICATOR* *If applicable 21-18AG Instruction & User Manual... -
Page 13: Power Tool Technical Data
Noise emission values determined according to EN 60745-1 and EN 60745-2-3. A-Weighted Sound Pressure (L 76.1 dB(A) A-Weighted Sound Power (L 87.1 dB(A) & K 3 dB(A) Wear ear protection when sound pressure is over 80 dB(A) 21-18AG Instruction & User Manual... -
Page 14: Vibration Information
THIS TOOL MAY CAUSE HAND-ARM Plan your work schedule to spread any high VIBRATION SYNDROME (HAVS) IF USAGE vibration tool use across a number of days. IS NOT ADEQUATELY MANAGED. 21-18AG Instruction & User Manual... -
Page 15: Operating Instructions
NOTE Make sure the ON/OFF Trigger (1A) is Charger is connected to not operated when inserting or removing mains power the battery. Use only JCB batteries: Connected battery is 21-20LI, 21-30LI, 21-40LI, 21-50LI. charging Do not use excessive force when... -
Page 16: Auxiliary Handle
(5). Turn anti-clockwise to release. NOTE Slowly rotate the grinding disc manually Check the direction of rotation of the while holding in the spindle lock button. accessory matches the direction of rotation marked on the power tool! 21-18AG Instruction & User Manual... -
Page 17: On/Off Trigger
- wheel breakage and serious personal injury may result. A fully enclosed guard is required to be fitted for cutting-off operations. Failure to fit a fully enclosed guard for cutting-off operations may result in serious personal injury. 21-18AG Instruction & User Manual... -
Page 18: Surface Finishing With Sanding Flap Discs
Wipe the tool with a dry or damp cloth. Do not use a wet cloth. Do not use detergent that contains solvent or 21-18AG Instruction & User Manual... -
Page 19: Transport And Storage
Keep all tools out of the reach of children. Always switch off the power tool and disconnect it from the power supply (remove the battery/unplug the power cord) before transport. Always carry the power tool using the purpose-designed handle. 21-18AG Instruction & User Manual... -
Page 20: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE and UKCA mark and a visible serial number. - Page 21 Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools 3 Year Warranty excludes the following (where applicable): Components normally subject to wear such as carbon brushes.
-
Page 22: Eu/Uk Declaration Of Conformity
UK Product Code No. JCB-18AG-B, 21-18AG-B DECLARATION: EU Product Code No. JCB-18AG-B-E Factory Reference No. PLAL-762 Yellow and Black Tools Ltd. (T/A: JCB Tools) Name: IDENTIFICATION DETAILS OF Unit 55 Romsey Industrial Estate, Greatbridge Road Address: MANUFACTURER: Romsey, Hampshire SO51 0HR...
