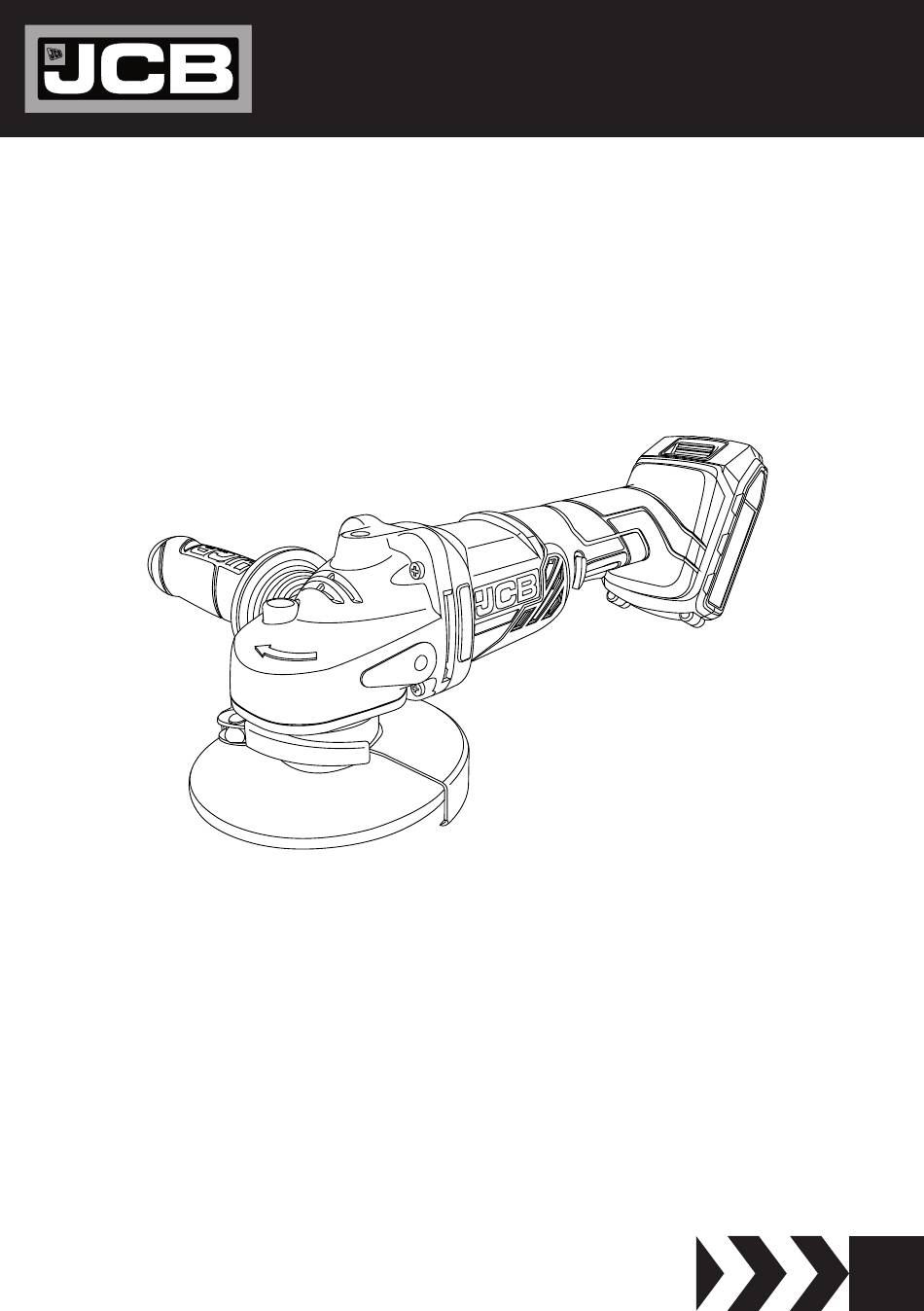

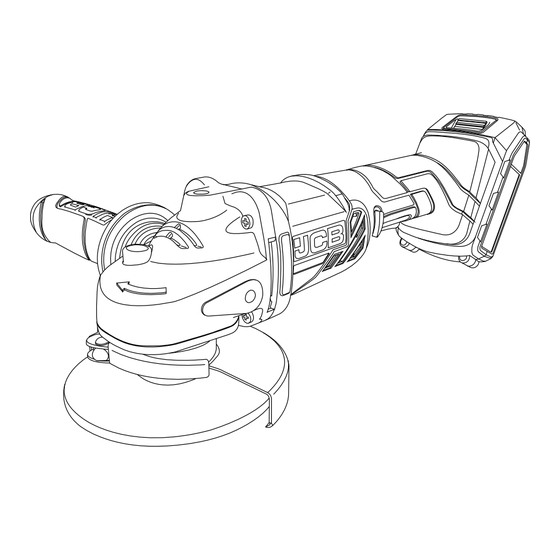

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL JCB-18AG Original Instructions IM-18AG-EN...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. JCB-18AG Instruction & User Manual...
-
Page 3: Table Of Contents
NOISE INFORMATION VIBRATION INFORMATION OPERATING INSTRUCTIONS Intended Use Battery Handle Guard Grinding Wheel Assembly Power Switch Surface Grinding Edge Grinding (Cutting) Surface Finishing Maintenance Transport and Storage WARRANTY STATEMENT Conditions Terms EC DECLARATION OF CONFORMITY JCB-18AG Instruction & User Manual... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. JCB-18AG Instruction & User Manual... -
Page 5: Power Tool Use And Care
Use of any other accessories, or storing power tools. Such battery packs may create a risk of injury and fire. preventive safety measures reduce the risk of starting the power tool accidentally. JCB-18AG Instruction & User Manual... -
Page 6: Service
This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. JCB-18AG Instruction & User Manual... -
Page 7: Additional Safety Rules For Grinders
Damaged accessories will normally break apart during this test time. JCB-18AG Instruction & User Manual... -
Page 8: Kickback And Related Warnings
Kickback is the result of power tool misuse snag your clothing, pulling the accessory into and/or incorrect operating procedures or your body. conditions and can be avoided by taking proper precautions as given below. JCB-18AG Instruction & User Manual... - Page 9 Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control. JCB-18AG Instruction & User Manual...
-
Page 10: Charger Safety
To reduce risk of injury, only charge if they have been given supervision JCB rechargable batteries. The or instruction concerning use of charger and battery packs are specifically the appliance in a safe way and designed to work together. - Page 11 JCB-18AG Instruction & User Manual...
-
Page 12: Component List
ON/ OFF SWITCH SIDE HANDLE SPINDLE LOCK GUARD LOCKING NUT GRINDING DISC LOWER PLATE CHARGER* BATTERY PACK* - PLEASE REFER TO TABLE ON PAGE 11 FOR BATTERY INFORMATION BATTERY TEST BUTTON AND CHARGE INDICATOR* *If applicable JCB-18AG Instruction & User Manual... -
Page 13: Tool Technical Data
2.59 kg LITHIUM ION BATTERY TECHNICAL DATA Battery Battery Battery Charge Time Charge Time Voltage Code Size Capacity (Fast Charger: JCB-18VFC) (Super Fast Charger: JCB-18SFC) JCB-20LI Small 2.0Ah 50 mins 30 mins JCB-30LI Large 3.0Ah 80 mins 45 mins JCB-40LI Large 4.0Ah... -
Page 14: Vibration Information
Plan your work schedule to spread any high vibration tool use across a number of days. THIS TOOL MAY CAUSE HAND-ARM VIBRATION SYNDROME IF USAGE IS NOT ADEQUATELY MANAGED. JCB-18AG Instruction & User Manual... -
Page 15: Operating Instructions
Place the battery charger on a level and Removing the battery stable surface. Plug the charger into a 230 V power point. Press the battery release button and remove the battery from the tool. JCB-18AG Instruction & User Manual... -
Page 16: Handle
NOTE Remove the tool from the work surface before turning it tool off. Allow the tool to Disassembling the grinding wheel can be stop rotating before laying it down. performed in inverse order. JCB-18AG Instruction & User Manual... -
Page 17: Edge Grinding (Cutting)
Do not clean ventilation holes by inserting sharp objects in them, such Flap Discs as screwdrivers and other similar Allow the tool to reach full speed before objects. touching the tool to the work surface. JCB-18AG Instruction & User Manual... -
Page 18: Transport And Storage
Always carry the tool using the purpose- designed handle. Ensure that the tool is not at risk of tipping over or exposed to excessive vibration and shocks during transport, especially if the tool will be transported by car or other vehicle. JCB-18AG Instruction & User Manual... - Page 19 JCB-18AG Instruction & User Manual...
-
Page 20: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE mark and a visible serial number. In the unlikely event your JCB Power Tool is subject to a manufacturing fault within the warranty period, JCB Tools may repair the product by replacing defective parts free of charge at our discretion. -
Page 21: Conditions
Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools standard 3 Year and extended 5 Year Warranties excludes the following (where relevant): Components normally subject to wear such as carbon brushes. -
Page 22: Ec Declaration Of Conformity
EN 60745-2-3:2011+A2+A11+A12+A13 The person authorized to compile the technical file: Date: 20/09/2018 Signature: Name/ title: Mya Yee Lwin / Quality Assurance Manager Address: JCB Tools, 55 Romsey Industrial Estate, Romsey, SO51 0HR, UK. Company REG: 11062222 JCB-18AG Instruction & User Manual... - Page 23 JCB-18AG Instruction & User Manual...
