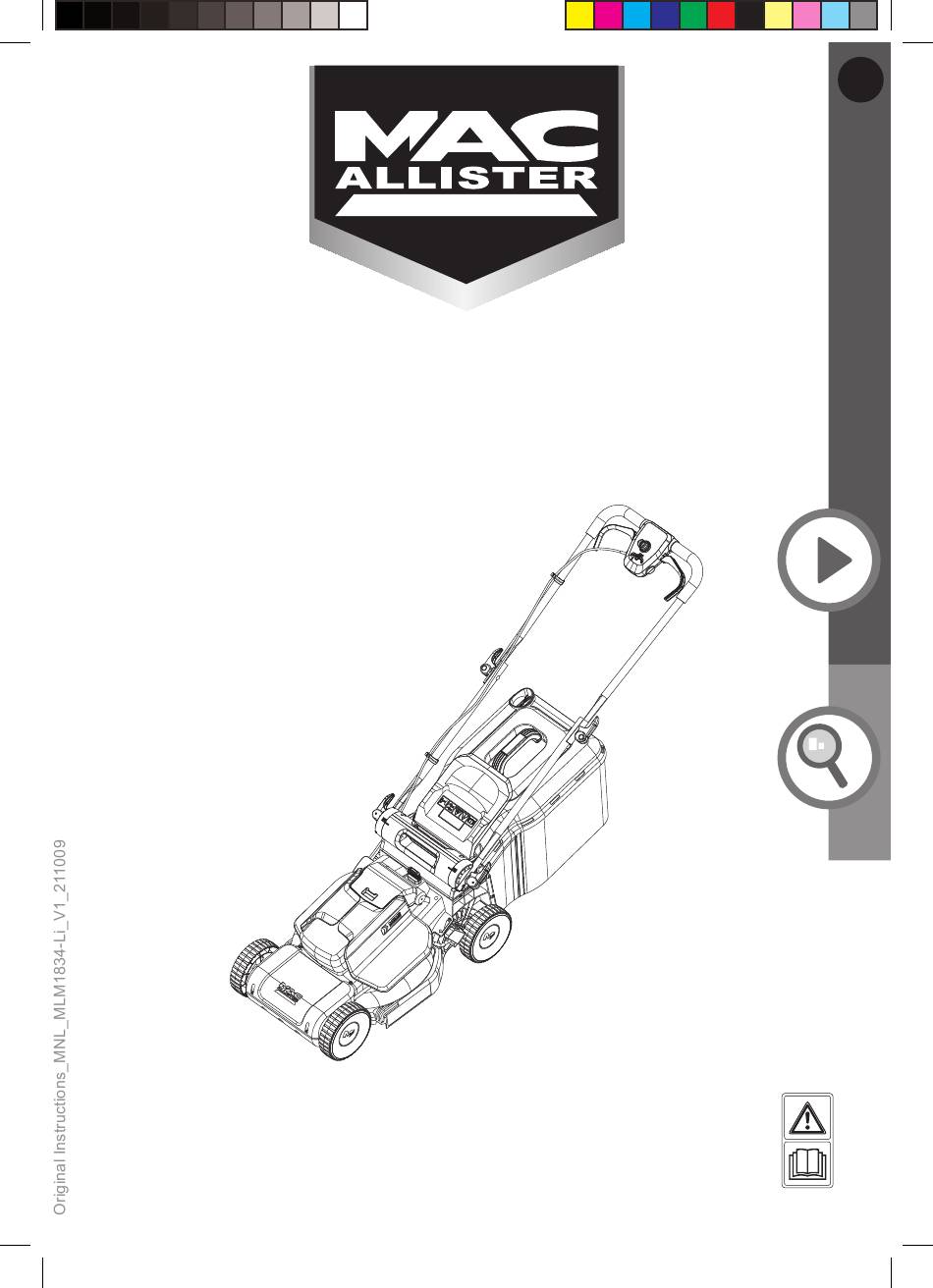

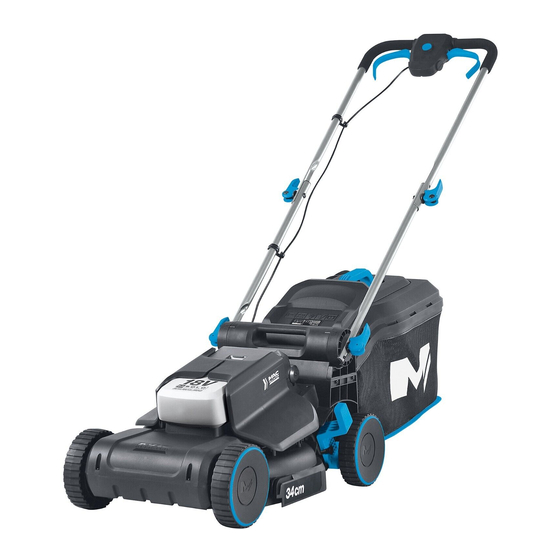

- Page 1 Cordless lawnmower 18V 34cm SOLO MLM1834-Li WARNING: Read the instructions before using the product! MNL_MLM1834-Li_18V 34cm Lawnmower_IM_GB_V1_211009.indd 1 10/9/21 10:57 AM...
-
Page 2: Table Of Contents
Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications... - Page 3 MLM1834-Li by MacAllister Safety information Safety warnings 1. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
- Page 4 Safety information MLM1834-Li by MacAllister Safety warnings 3. Never mow while people, especially children, or pets are nearby. 4. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. Preparation 1.
- Page 5 MLM1834-Li by MacAllister Safety information 8. Use extreme caution when reversing or pulling the product towards you. 9. Stop the cutting blade(s) if the product has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the area to be mowed.
- Page 6 Safety information MLM1834-Li by MacAllister Safety warnings 18. If the product starts to vibrate abnormally (check immediately) - inspect for damage, - replace or repair any damaged parts, - check for and tighten any loose parts. Maintenance and storage 1. Disconnect the product from the power supply (i.e. remove the battery pack and / or safety key) before checking, cleaning or working on the product and when it is not in use.
-
Page 7: Safety Information
MLM1834-Li by MacAllister Safety information 11. Have the product repaired only by an authorised service centre or similar qualified specialist. 12. When not in use, store the product out of the reach of children. Safety warnings for battery pack 1. Recharge the battery pack only with the charger specified by the manufacturer. - Page 8 Safety information MLM1834-Li by MacAllister Safety warnings 7. Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of an open flame. An exploded battery can propel debris and chemicals.
- Page 9 MLM1834-Li by MacAllister Safety information 16. When disposing of battery pack, keep the battery pack of different electrochemical systems separate from each other. Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.
- Page 10 Safety information MLM1834-Li by MacAllister Safety warnings 2. Switch the product off and remove the battery pack if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again. Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain.
- Page 11 MLM1834-Li by MacAllister Safety information Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (direct current voltage) mAh Milliampere per hour /min or...
- Page 12 MLM1834-Li by MacAllister Safety information Symbols Inspect the area where the product is to be used and remove all objects which can be thrown by the product. If objects are hidden while operating stop the motor and remove the object. Objects thrown by the product could hit the user or other bystanders.
- Page 13 MLM1834-Li by MacAllister Safety information Do note expose battery packs to heat in excess of 40 ºC. Do not charge or store the battery pack in temperatures below 5 °C (41 °F) and above 40 °C (104°F). The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.
-
Page 14: Your Product
Your product MLM1834-Li by MacAllister Your product 11 10 MNL_MLM1834-Li_18V 34cm Lawnmower_IM_GB_V1_211009.indd 14 10/9/21 10:58 AM... - Page 15 MLM1834-Li by MacAllister Your product / Before you start 1. Grip handle g. Flat washer* a. Groove 2. Safety switch button 8. Transport handle b. Electrical 3. Start lever (x2) a. indicator* contacts* 4. Upper handle bar 9. Rear wheel (x2) c.
-
Page 16: Before You Start
Before you start MLM1834-Li by MacAllister You will need (items not supplied) (items supplied) Suitable personal protective equipment Grass catcher (7) Suitable wrench Cutting blade (12d) Battery pack (20) Charger (21) and its manual NOTE: The accessories required depend on the intended application. Ask your dealer for advice. - Page 17 MLM1834-Li by MacAllister Before you start 1. Unfold and loosen the clamp levers (5) anti-clockwise on the lower handle bars (6), but do not remove them (Fig.1, step 1). 2. Grasp the lower handle bars (6) and unfold them from storage position to work position (Fig.
- Page 18 MLM1834-Li by MacAllister Before you start Assembly Fig. 3 8. Secure the inter-connection cord (18) with two wire clips (17) (Fig. 4). Pull the inter-connection cord (18) to avoid contact with the rear wheel (9) if necessary. Fig. 4 WARNING! Make sure the clamp levers (5) are properly tightened before using the product.
- Page 19 MLM1834-Li by MacAllister Before you start WARNING! Do not attempt to use the product without the grass catcher attached – danger of flying objects! The motor must be switched off and the blade must have stopped rotating before you remove the grass catcher.
- Page 20 Before you start MLM1834-Li by MacAllister Battery pack Attaching the battery pack 1. Remove the safety key (10) and keep it avoid loss (Fig. 8, step 1). 2. Hold the groove (15a) and open the battery cover (15) (Fig. 8, step 2). 3.
- Page 21 MLM1834-Li by MacAllister Before you start Battery pack Charging the battery pack The battery pack (20) for this product has been shipped in a low charge condition. Charge it fully before first use. Refer to the charger instruction manual (MFC18) for the details. Battery capacity indicators The battery pack (20) is equipped with the battery capacity indicators (20a) which are used to give an indication of the battery pack’s remaining capacity.
-
Page 22: In More Detail
MLM1834-Li by MacAllister more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications Declaration of conformity MNL_MLM1834-Li_18V 34cm Lawnmower_IM_GB_V1_211009.indd 22 10/9/21 10:58 AM... - Page 23 ster MLM1834-Li by MacAllister Product functions Intended use This cordless lawnmower MLM1834-Li is designated with rated voltage of 18 V . It is designed only to be used with the battery pack which is listed in the chapter of “Technical specifications”. The product is intended for mowing grass in domestic gardens only.
- Page 24 Product functions MLM1834-Li by MacAllister Handle height adjustment 3. Secure the handle assembly by folding up the clamp lever (5) towards the transport handle (8). If clamp lever (5) cannot be folded, loosen it and fold again. If it is too loose, tighten it by turning the clamp lever (5) clockwise (Fig.
- Page 25 MLM1834-Li by MacAllister Product functions Fig 13 WARNING! Make sure the clamp levers (5) are properly tightened before using the product. Cutting height adjustment WARNING! Switch the product off and wait that the cutting blade had come to a complete stop before adjusting the cutting height! Remove the safety key (10) before adjusting the cutting height! Adjust the cutting height according to the needs of your lawn.
-
Page 26: Operation
Product functions MLM1834-Li by MacAllister Grass catcher WARNING! Do not attempt to use the product without the grass catcher attached when collecting grass – danger of flying objects! Switch the motor off and wait that the blade had come to a complete stop before removing the grass catcher! Attach the grass catcher (7). - Page 27 MLM1834-Li by MacAllister Product functions / Operation 2. Lift the deflector guard (16) and lift the grass catcher (7) off the hooks. 3. Remove the grass clippings from the rear discharge chute (19) into the grass catcher (7). Use a proper tool such as a brush. 4.
- Page 28 Operation MLM1834-Li by MacAllister Starting/Stopping Starting / stopping NOTE: The product can only be started by pressing the safety switch button (2) followed by squeezing the start levers (3). Reverse operation cannot start the product. 1. Install the battery pack (20) into the battery compartment. 2.
- Page 29 MLM1834-Li by MacAllister Operation / Care and maintenance 5. Mow in slight overlapping rows. The most effective pattern for mowing lawns is straight lines along one of the sides. This will keep the rows even and ensures that all the lawn is cut without missing any spots (Fig.
-
Page 30: Care And Maintenance
Care and maintenance MLM1834-Li by MacAllister General Cleaning 1. Clean the product with a dry cloth. Use a brush for areas that are hard to reach. 2. Remove stubborn dust with high pressure air (max. 3 bar). NOTE: Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces. - Page 31 MLM1834-Li by MacAllister Care and maintenance 5. Replace the cutting blade (12d) with a new one of the same type. Check the status of flange (12c), the bushing (12b) onto the spindle (12a) firstly, then attach the cutting blade (12d) and hex nut (12e) properly. Tighten the hex nut (12e) clockwise with 20 Nm min, 25 Nm max.
-
Page 32: Troubleshooting
Care and maintenance MLM1834-Li by MacAllister Storage 1. Switch the product off, disconnect the safety key (10) and remove the battery pack (20) before storage. 2. Clean the product as described above. 3. Fold the handle assembly to the storage position. 4. - Page 33 MLM1834-Li by MacAllister Troubleshooting Problem Possible cause Solution 1. Product 1.1. Battery pack is not properly 1.1. Attach properly does not attached start 1.2. Battery pack is discharged 1.2. Remove and charge battery pack 1.3. Battery pack is damaged 1.3. Check by a specialist electrician 1.4.
-
Page 34: Recycling And Disposal
Recycling and disposal MLM1834-Li by MacAllister Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. The product comes in a package that protects it against damage during shipping. -
Page 35: Guarantee
MLM1834-Li by MacAllister Guarantee Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use. - Page 36 Guarantee MLM1834-Li by MacAllister Guarantee Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com MNL_MLM1834-Li_18V 34cm Lawnmower_IM_GB_V1_211009.indd 36 10/9/21 10:58 AM...
- Page 37 MLM1834-Li by MacAllister General > Rated voltage : 18 V > Rated no load speed n : 3000 min > Max. cutting width : 34 cm > Cutting height range : 20-70 mm, 6 levels > Grass catcher volume : 35 l >...
- Page 38 Rating label explanation Lawnmower : MLM1834-Li = Model number M = MAC Allister LM = Lawnmower 18 = Voltage (V) 34 = Cutting width (cm)
-
Page 39: Declaration Of Conformity
MLM1834-Li by MacAllister Declaration of conformity Declaration of conformity MNL_MLM1834-Li_18V 34cm Lawnmower_IM_GB_V1_211009.indd 39 10/9/21 10:58 AM... - Page 40 MLM1834-Li by MacAllister Customer Care and Technical Helpline Customer Care and Technical Helpline A better way to repair your tools Kingfisher takes special care in creating high-quality garden power tools that are designed to last. But if a fault develops with your garden power tool and you need to claim under the guarantee, the Customer Care and Technical Helpline can support with technical assistance or if required, arrange a free courier collection from your home, assess your garden power tool for fault, repair it, and return it.
- Page 41 MLM1834-Li by MacAllister Availability of Spare Parts Availability of Spare Parts Contact the customer service helpline for assistance or visit www.kingfisher- spares.com For assistance contact the customer services helpline: UK 0800 0789647 uk@Kingfisherservice.com EIRE 1800 932226 eire@kingfisherservice.com Further information about this product can also be found at: www.kingfisher.com/products...
- Page 44 Manufacturer,Fabricant,Producent,Produc tor,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.diy.com To view instruction manuals online, visit www.screwfix.com www.kingfisher.com/products www.screwfix.ie www.castorama.fr Pour consulter les manuels d’instructions en ligne,...
Need help?
Do you have a question about the SOLO MLM1834-Li and is the answer not in the manual?
Questions and answers

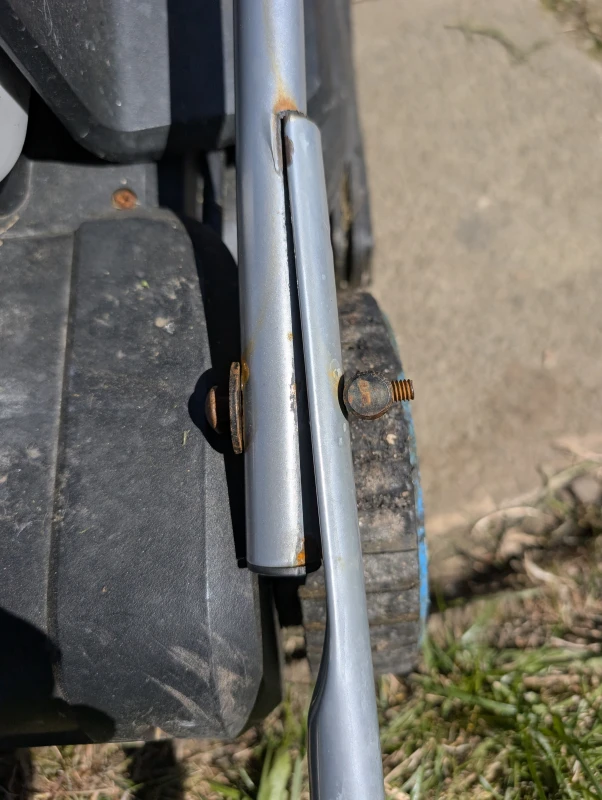

How do I get replacement parts I broke one of the plastic parts to collapse the handle
You can obtain replacement parts for the Mac Allister SOLO MLM1834-Li handle from an authorized dealer or through customer service. Contact the customer services helpline in the UK at 0800 0789647 or in EIRE at 1800 932226.
This answer is automatically generated
When moving the lower hand;es to mid point, the left clamp,5, will not engage. How can I correct this?
To fix the left clamp on the Mac Allister SOLO MLM1834-Li when moving the lower handles to the midpoint, follow these steps:
1. Loosen the Clamp Lever: Turn the clamp lever (5) anti-clockwise on both sides of the lower handle bars (6), but do not remove them.
2. Adjust the Handle Position: Hold and swing the handle assembly gently to the midpoint position by aligning the indication line (6a) with the indicator (8a) of the transport handle (8).
3. Secure the Clamp Lever: Fold up the clamp lever (5) towards the transport handle (8).
- If the clamp cannot be folded, loosen it further and try again.
- If it is too loose, tighten it by turning the clamp lever (5) clockwise.
Ensure both sides of the handle assembly are set to the same height.
This answer is automatically generated
How do I fold the handle on the solo mlm1834-Li model
