Summary of Contents for Mac allister SOLO MLM3637-Li

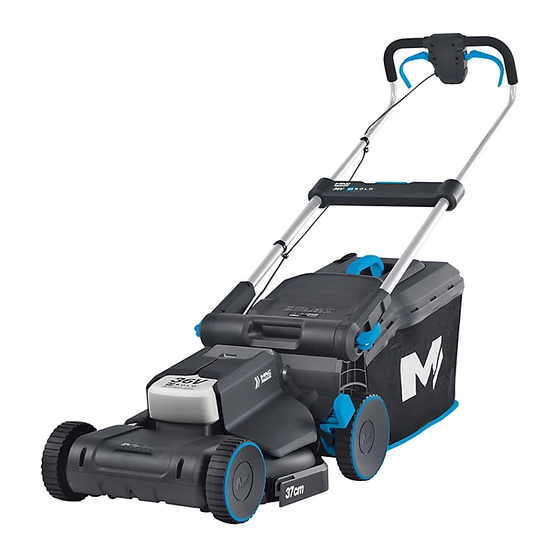

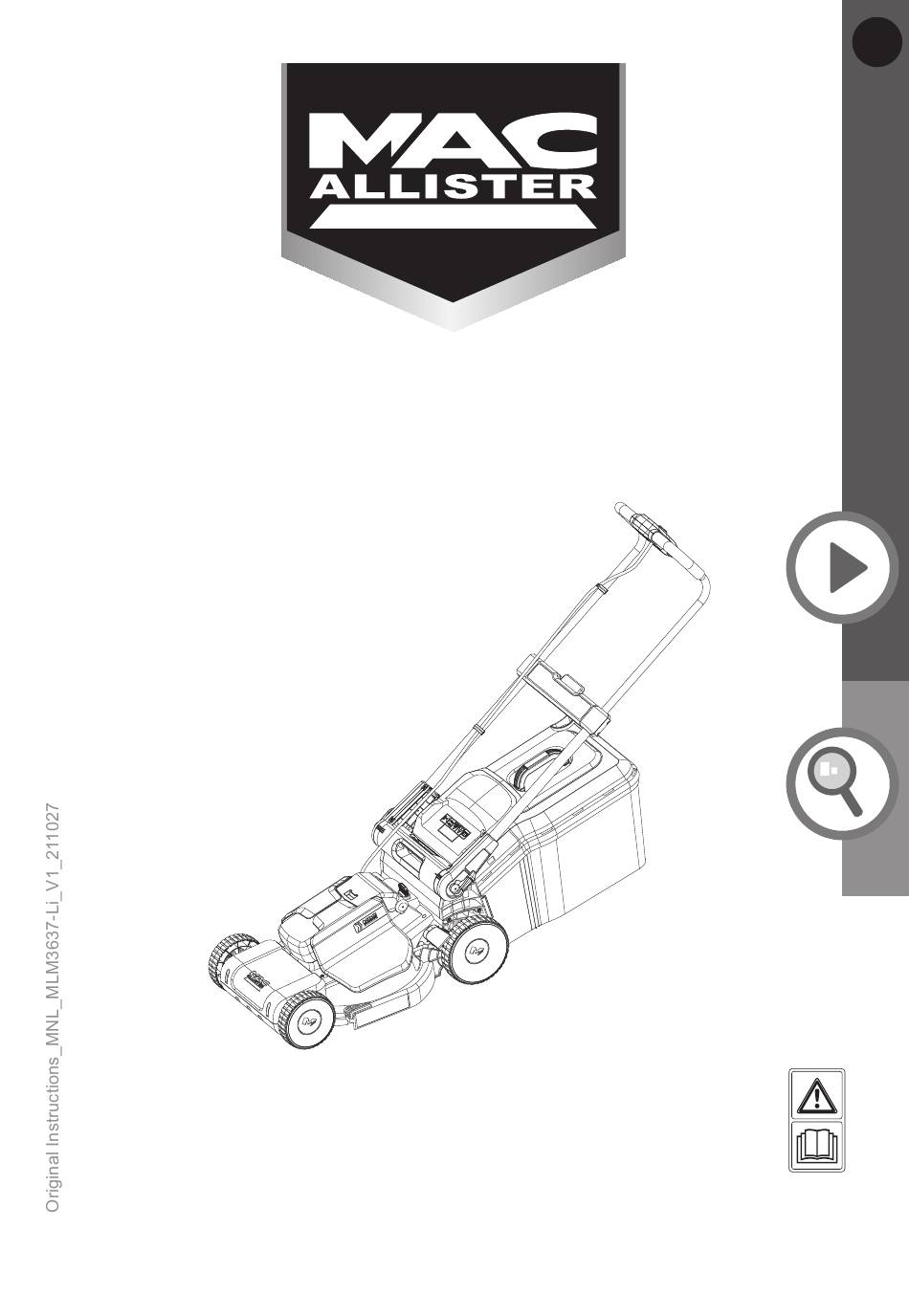

- Page 1 Cordless lawnmower 36V 37cm SOLO MLM3637-Li WARNING: Read the instructions before using the product!
-
Page 2: Table Of Contents
Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications... - Page 3 MLM3637-Li by MacAllister Safety information Safety warnings 1. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
- Page 4 Safety information MLM3637-Li by MacAllister Safety warnings 3. Never mow while people, especially children, or pets are nearby. 4. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. Preparation 1.
- Page 5 MLM3637-Li by MacAllister Safety information 9. Stop the cutting blade(s) if the product has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the area to be mowed. 10. Never operate the product with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers, in place.
- Page 6 Safety information MLM3637-Li by MacAllister Safety warnings - check for and tighten any loose parts. Maintenance and storage 1. Disconnect the product from the power supply (i.e. remove the battery pack and / or safety key) before checking, cleaning or working on the product and when it is not in use.
-
Page 7: Safety Information
MLM3637-Li by MacAllister Safety information Safety warnings for battery pack 1. Recharge the battery pack only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. 2. - Page 8 Safety information MLM3637-Li by MacAllister Safety warnings the battery pack outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. 9. Do not charge battery in a damp or wet location. Following this rule will reduce the risk of electric shock.
- Page 9 MLM3637-Li by MacAllister Safety information Vibration and noise reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks: 1.
- Page 10 Safety information MLM3637-Li by MacAllister Safety warnings Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1.
- Page 11 MLM3637-Li by MacAllister Safety information Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (direct current voltage) mAh Milliampere per hour /min or...
- Page 12 Safety information MLM3637-Li by MacAllister Symbols Inspect the area where the product is to be used and remove all objects which can be thrown by the product. If objects are hidden while operating stop the motor and remove the object. Objects thrown by the product could hit the user or other bystanders.
- Page 13 MLM3637-Li by MacAllister Safety information Do note expose battery packs to heat in excess of 40 ºC. Do not charge or store the battery pack in temperatures below 5 °C (41 °F) and above 40 °C (104°F). The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.
-
Page 14: Your Product
Your product MLM3637-Li by MacAllister Your product... - Page 15 MLM3637-Li by MacAllister Your product / Before you start 1. Safety switch button a. Indicator* c. Slot* 2. Grip handle 9. Clamp lever (x2) 16. Safety key 3. Start lever (x2) 10. Lever for cutting 17. Deflector guard 4. Upper handle bar height adjustment 18.
-
Page 16: Before You Start
Before you start MLM3637-Li by MacAllister You will need (items supplied) (items not supplied) Grass catcher (6) Suitable personal protective equipment Cutting blade (12d) Suitable wrench Mulching insert (21) Battery pack (22) Charger (23) and its manual NOTE: The accessories required depend on the intended application. Ask your dealer for advice. - Page 17 MLM3637-Li by MacAllister Before you start NOTE: For first assembly, secure the handle assembly with the clamp levers (9) in the middle position of the tilt adjustment mechanism by aligning the indication line (7a) with the indicator (8a) of the transport handle (8).
- Page 18 Before you start MLM3637-Li by MacAllister Assembly WARNING! Make sure the clamp levers (9) are properly tightened before using the product. Grass catcher 1. Clip the three rubber clips (6c) to the supporting rod (6d) of the grass catcher (6) (Fig.
- Page 19 MLM3637-Li by MacAllister Before you start NOTE: Always carry the grass catcher (6) by its handle (6a). Before hooking the grass catcher (6), check if the mulching insert (21) is in the rear discharge chute (20). Take away the mulching insert (21) before hooking the grass catcher (6).
- Page 20 Before you start MLM3637-Li by MacAllister Battery pack 1. Hold the groove (15a) and open the battery cover (15) (Fig. 10, step 1). 2. Press down the release button (22c) to unlock the latch of battery pack (22) (Fig. 10, step 2). 3.
-
Page 21: In More Detail
MLM3637-Li by MacAllister more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Technical specifications Declaration of conformity... - Page 22 Product functions MLM3637-Li by MacAllister Intended use This cordless lawnmower MLM3637-Li is designated with rated voltage of 36 V . It is designed only to be used with the battery pack which is listed in the chapter of “Technical specifications”. The product is intended for mowing grass in domestic gardens only.
- Page 23 Product functions MLM3637-Li by MacAllister Cutting height adjustment WARNING! Switch the product off and wait that the cutting blade had come to a complete stop before adjusting the cutting height! Remove the safety key (16) before adjusting the cutting height! Adjust the cutting height according to the needs of your lawn.
- Page 24 Product functions MLM3637-Li by MacAllister Grass catcher Indicator The grass catcher (6) is equipped with a hatch (6e) that indicates the filling during operation. Fig. 14 Fig. 15 1. When the hatch (6e) is opened the grass catcher has sufficient volume left to collect grass (Fig.
- Page 25 Product functions MLM3637-Li by MacAllister Mulching insert The mulching insert prevents grass from being collected by blocking the rear discharge chute (20). This allows the grass clippings to be deposited back on the lawn during cutting. NOTE: Mulching means cutting and returning the grass clippings to the lawn in one step: the grass clippings are cut very fine and then distributed evenly back onto the lawn.
- Page 26 Operation MLM3637-Li by MacAllister General operation 1. Check the product, its battery pack and charger as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. Take care of any problem you find or have the product checked by qualified specialist.
- Page 27 Operation MLM3637-Li by MacAllister Fig. 18 Fig. 19 Mowing 1. Make sure that the lawn is clear of stones, sticks, wire or other objects that could damage the product or its product. 2. Do not cut wet grass because it tends to stick to the underbody of the product, preventing the proper discharge of grass clippings, and it could also cause you to slip and fall.
- Page 28 Operation MLM3637-Li by MacAllister Mowing Grass collection 1. Remove the mulching insert (21) and attach the grass catcher (6). 2. Empty the grass catcher (6) regularly. Mulching NOTE: Mulching means cutting and returning the grass clippings to the lawn in one step: the grass clippings are cut very fine and then distributed evenly back onto the lawn.
- Page 29 Care and maintenance MLM3637-Li by MacAllister The golden rules for care WARNING! Always switch the product off, remove the battery pack (22) and safety key (16). Let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage.
- Page 30 Care and maintenance MLM3637-Li by MacAllister Underbody and cutting blade WARNING! Wear safety gloves when working on the blade and close to it! Use proper tools to remove debris, e. g. a wooden stick! Never Wear safety gloves when working on the blade and close use your bare hands! Always use original spare parts for replacement.
- Page 31 Care and maintenance MLM3637-Li by MacAllister Grass catcher Inspect the grass catcher (6) before each use. Do not use it if you find any damage. Clean the grass catcher (6) after operation using water and mild soap. Let the grass catcher (6) dry thoroughly before storing to avoid mildew. Inter-connection cord Check the inter-connection cord (19) before each use.
-
Page 32: Troubleshooting
Care and maintenance / Troubleshooting MLM3637-Li by MacAllister Transportation 4. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. 5. Secure the product to prevent it from slipping or falling over, damage and injury. -
Page 33: Recycling And Disposal
Troubleshooting / Recycling and disposal MLM3637-Li by MacAllister Problem Possible cause Solution 4. Product 4.1. Battery pack is 4.1. Remove and charge suddenly discharged battery pack stops 4.2. Battery pack is too hot 4.2. Remove battery pack and let it cool down 4.3. -
Page 34: Guarantee
Guarantee MLM3637-Li by MacAllister Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use. - Page 35 Guarantee MLM3637-Li by MacAllister Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...
-
Page 36: Technical Specifications
Technical specifications MLM3637-Li by MacAllister Technical specifications General >Rated voltage : 36 V >Rated no load speed n : 3000 min >Max. cutting width : 37 cm >Cutting height range : 20-70 mm, 7 levels >Grass catcher volume : 45 l >Degree of protection : IPX4 >Wheel size... - Page 37 Rating label explanation Lawnmower: MLM3637-Li = Model number M = MAC Allister LM = Lawnmower 36 = Voltage (V) 37 = Cutting width (cm)
-
Page 38: Declaration Of Conformity
Declaration of conformity MLM3637-Li by MacAllister Declaration of conformity...
