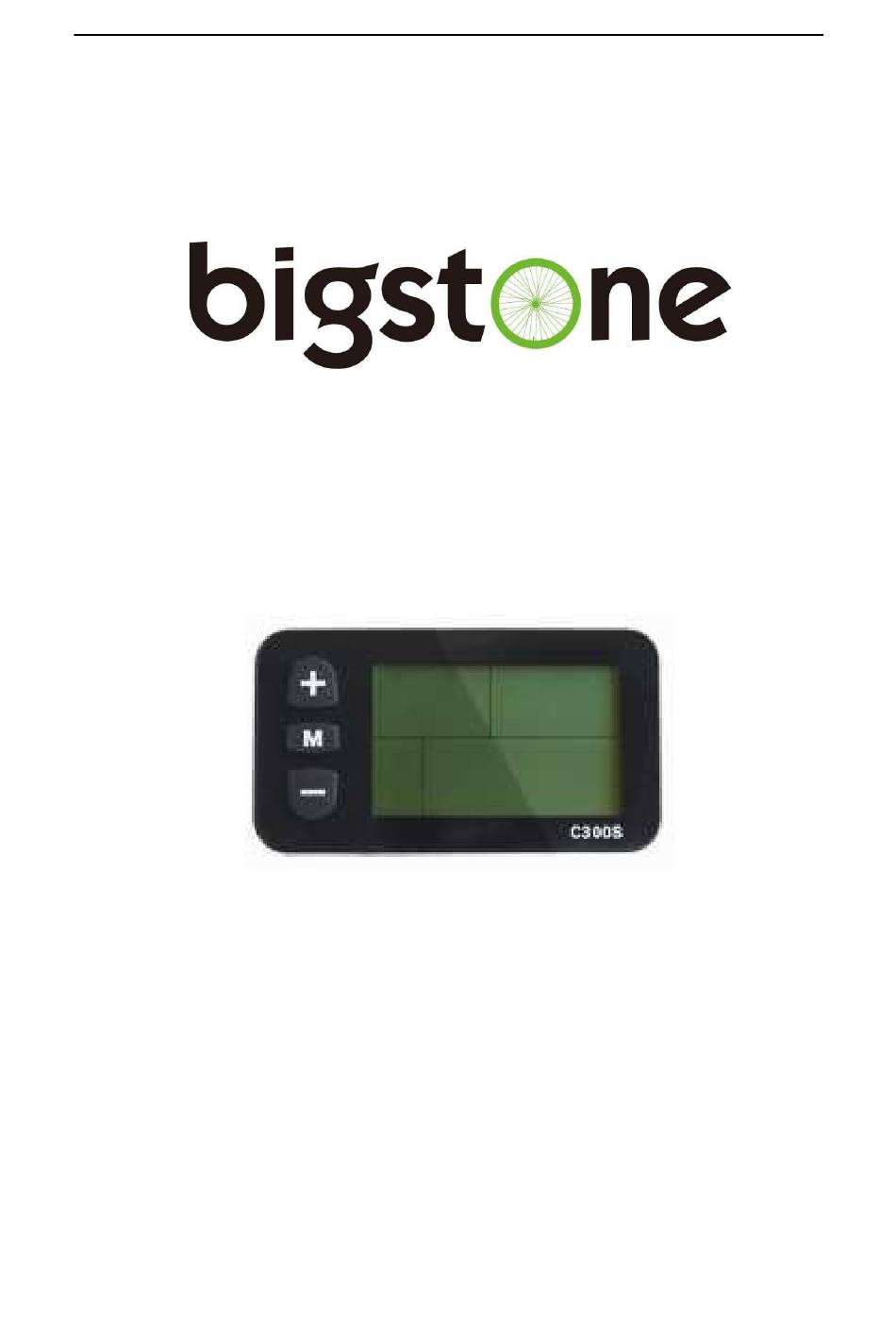

- Page 1 C300S-LCD Instructions...
-
Page 2: Table Of Contents
CONTENT ABOUT THE USER MANUAL ......................2 OUTLOOK AND SIZE ..........................2 .........................2 ATERIAL AND OLOR BUTTON DEFINITION ........................3 FUNCTION SUMMARY........................4 ..........................4 UNCTION UMMARY ..........................6 ..........................6 ORMAL NORMAL OPERATION ........................7 1、MODE ............................7 2、C ..........................7 URRENT DISPLAY 3、S ..........................7 PEED DISPLAY 4、KM/H & MPH ..........................8 5、B ........................8 ACKLIGHT INDICATOR... -
Page 3: About The User Manual
Dear users, To ensure better performance of your e-bike, please read through the C300S-LCD product introduction carefully before using it. We will inform you all the details concisely（including hardware installation, setting and normal use of the display） when using our display. Meanwhile, the introduction will also help you solve possible confusion and malfunction. -

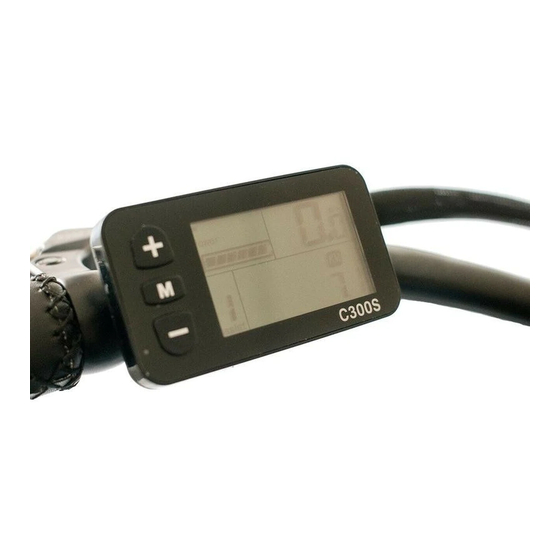

Page 4: Button Definition
BUTTON DEFINITION C300S has three buttons, including MODE、UP and DOWN. “MODE” names to “M”, “UP” names to “ ＋” and “DOWN” names to “－”. page 3... -
Page 5: Function Summary
FUNCTION SUMMARY FUNCTION SUMMARY C300S provides a wide range of functions and indicators to fit the users’ needs. The indicated contents are as below. 1. MODE 2. Current display 3. Speed display 4. KM/H & MPH 5. Backlight indicator 6. 6KM/H work 7. -
Page 6: Full View Area
FULL VIEW AREA NORMAL VIEW AREA The normal viewing area of the C300S is shown below. page 5... -
Page 7: Normal Operation
NORMAL OPERATION 1、MODE Press MODE and start the display. The display will provide power for the controller. With display on, press MODE for 1.5 seconds to turn off the power. With the display off, there is no battery consumption. The leakage current is no more than 2 µA. -
Page 8: 4、Km/H & Mph
4、KM/H & MPH Select KM/H or MPH for the speed and mileage, display will be the currently selected units display. 5、BACKLIGHT INDICATOR With the power on, p r e s s a n d hold UP for 1.5 seconds and turn on the backlight. -
Page 9: 8、Error Code Indicator
Press + or to increase or decrease level of pedal assist the output power – range from level 1 to level 5 for the default (the levels can be customized by user) , the default value is level 1. Level 1 is lowest power, 5 is highest. 8、ERROR CODE INDICATOR If there is something wrong with the electronic control system, the display will flash and show the error code automatically. - Page 10 Click - to clear trip distance, trip time and max speed. 9.2 Max speed setting The max speed is 32 km/h for the default. User can modify the value of max speed, when the riding speed exceeds the set value, the controller will stop supplying power to the e-bike, in order to ensure the safety of rider.
-
Page 11: 10、Distance Indicator
Click + or - to set the wheel diameter. ※ 9.4 KM/H & MPH Click + or - to switch the KM/H & MPH selection. 9.5 Voltage choice Click + or - to switch the 36V & 48V selection. 10、DISTANCE INDICATOR With the display on, click the MODE to switch the display information. -
Page 12: 11、Battery Indicator
11、BATTERY INDICATOR When the battery capacity is high, the five battery segments are all lit. When the battery is low, the battery frame will flash. It indicates that the battery is severely low and needs to be recharged immediately. Low battery flash 12、CABLE DEFINITION 1 Red：... -
Page 13: 13、Auto Sleep After 5 Minutes
13、AUTO SLEEP AFTER 5 MINUTES When the riding speed is less than 2 km/h for 5 minutes, the system will go to sleep automatically. ERROR CODE TABLE The error code is corresponding with the fault definition. Error code definition Current error or MOS damaged Throttle error (Start detection) motor no phase position Hall error...
