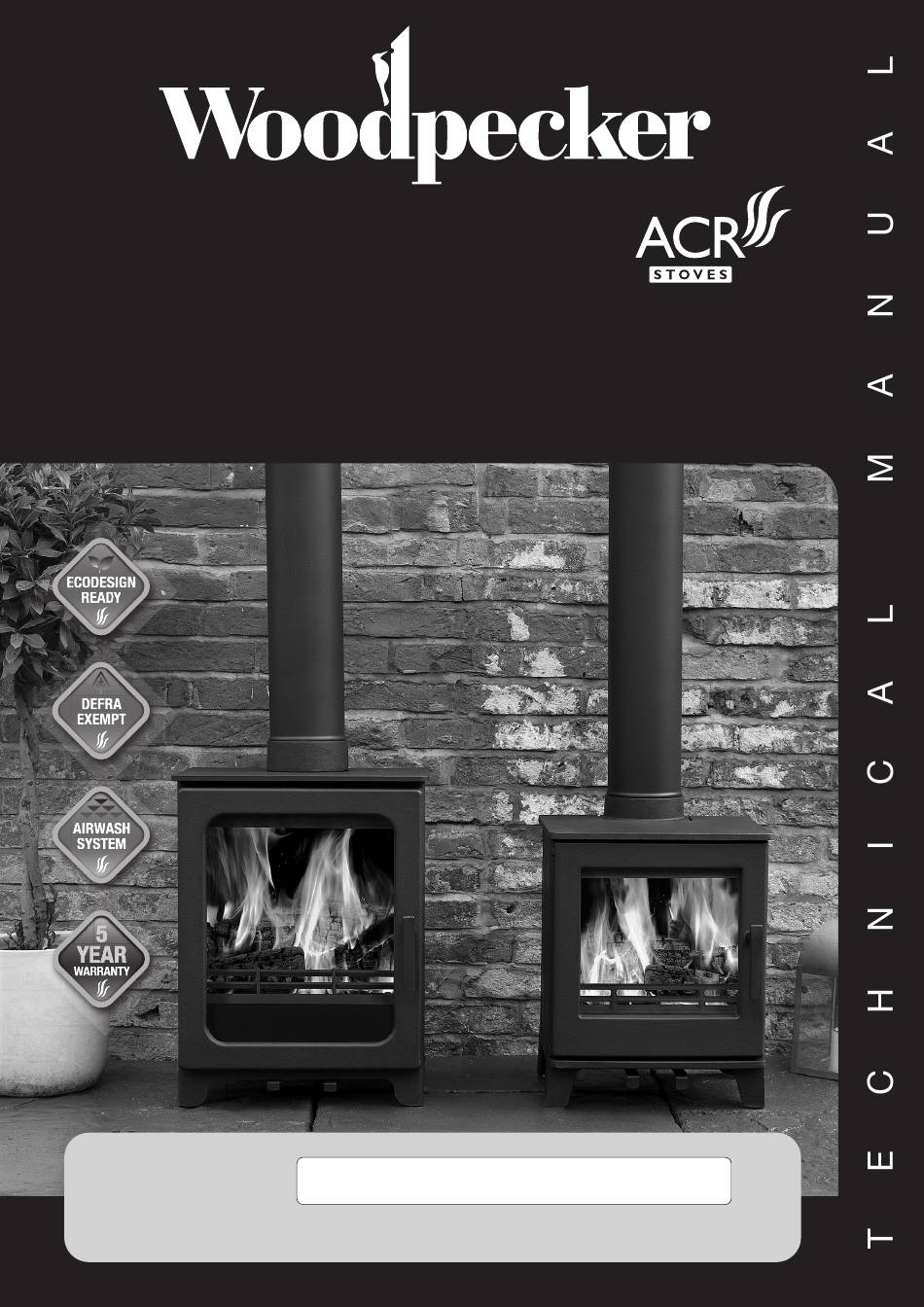

The woodpecker range by
Models: WP4, WP4LS, WP5, WP5 PLUS, WP5Q-P, WP5Q-LS
To be retained by the user for future reference
Thank you for purchasing an ACR Heat Products stove
ECODESIGN
READY
DEFRA
EXEMPT
AIRWASH
SYSTEM
5
5
YEAR
YEAR
WARRANTY
Serial Number:
Document Woodpecker 0103 version 1 date 02/08/2022
STOVES
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ACR STOVES Woodpecker WP5 PLUS
Summary of Contents for ACR STOVES Woodpecker WP5 PLUS
- Page 1 STOVES The woodpecker range by Models: WP4, WP4LS, WP5, WP5 PLUS, WP5Q-P, WP5Q-LS To be retained by the user for future reference Thank you for purchasing an ACR Heat Products stove ECODESIGN READY DEFRA EXEMPT AIRWASH SYSTEM YEAR YEAR WARRANTY Serial Number: Document Woodpecker 0103 version 1 date 02/08/2022...
- Page 2 Technical Data & Declaration of Performance Important! To ensure that you gain the most from your purchase, please take a few minutes to read through this manual before lighting the appliance for the first time. Before installation, please ensure that the correct model has been supplied. Please make a note of the serial number of your appliance in the space provided on the front cover of this manual as this will be requested if you require technical assistance in the future.
- Page 3 90 mm Construction Construction 293.00 265.00 Cast Iron Cast Iron Woodpecker WP5 Fuel Woodpecker WP5 PLUS Fuel Wood logs & smokeless solid fuel Wood logs & smokeless solid fuel Nominal Output Nominal Output 5 kw 5 kw Net Efficiency Net Efficiency 490.00...
-
Page 4: The Clean Air Act 1993 And Smoke Control Areas
Woodpecker Stove Range Specifications The Clean Air Act 1993 and Smoke Control Areas All dimensions are in mm unless stated otherwise. Under the Clean Air Act local authorities Section 16 of the Environmental Better regulation Act (Northern Ireland) 2016. Woodpecker WP5Q-P Fuel may declare the whole or part of the Wood logs &... -
Page 5: Location Of The Unit
The superficial hearth must extend fully the appliance and hearth. Only the approved kit for ACR stoves beneath the appliance and extend If it greatly exceeds the recommended If in any doubt, please consult a... -
Page 6: Flue Requirements
Flue Requirements Suitable for use with solid fuel Clearances burning appliances The flue must comply with current Be able to clean the entire length of Building Regulations Document J. the flue system without removal of Clearances to non- Clearances to the appliance The Woodpecker range of stoves have combustible materials... - Page 7 Clearances to Combustible Materials WP4 / WP4LS twin wall flue WP4 / WP4LS corner twin wall flue WP5Q twin wall flue WP5Q corner twin wall flue WP5 twin wall flue WP5 corner twin wall flue To achieve minimum clearances as shown by the diagrams, an integrated, insulated appliance connector, such as the Midtherm HT-S Starter length must be used.
-
Page 8: Installation Of The Unit
Installation of the unit correct model ACR stove has been Operating Your Stove supplied. The appliance is supplied with pre- Packing list assembled with the flue spigot in the top exit position and the smoke exempt stop Always ensure that the ash drawer is fully closed before operation Your Woodpecker stove will contain: is contained in the installation pack within of the appliance... - Page 9 User Instructions • Note - if the stove is fitted with a • Never empty the ashes when the smoke exempt stop it will prevent the stove is in operation, always wait until Please read carefully to get the best from your ACR stove secondary air control lever from fully the stove had burned out and cold.
-
Page 10: Maintenance
Operation with door left open Persistent fume emission is Maintenance dangerous and must be Operation with the door open can cause investigated excess smoke and overfiring of the appliance. The appliance must not be If fume emission persists, open doors We recommend that the appliance is serviced operated with the appliance door left and windows to ventilate the room and... -
Page 11: Commissioning Check List
Commissioning Check List During the normal operation of your ACR stove, the refractory panels will experience heating and cooling. Sometimes minor hairline cracks can occur. All ACR stoves have a steel or cast Please tick boxes when each procedure is completed iron structure behind the panels and therefore even if the cracks get larger, the stove will still operate safely. -
Page 12: Annual Service Record
Annual Service Record Parts Information WP4 & WP4LS 1st Annual Service 2nd Annual Service Company Name: Company Name: Engineer Name: Engineer Name: Date Completed: Date Completed: Safety Tests: Safety Tests: Passed: Failed: Passed: Failed: 3rd Annual Service 4th Annual Service Company Name: Company Name: Engineer Name:... - Page 13 Parts Information WP5 Parts Information WP5 PLUS Diagram No. Part No. Description Diagram No. Part No. Description WPA106S4 Handle WP5P06M4 Handle WPA106S2 Cast iron door WP5P06M2 Cast Iron Door WPA106S3 Door Glass WP5P06M3 Door Glass ACRDG1-10 Door Gasket 2M ACRDG1-10 Door Gasket 2m WPA106S1B Left hand side panel vermiculite...
- Page 14 Parts Information WP5Q-P & WP5Q-LS Diagram No. Part No. Description WPA106S4 Handle WPA106Q3 Cast iron door WPA106S3 Door glass Not Shown ACRDG1-10 Door gasket 2M WPA106S1B Left hand side panel vermiculite WPA106Q5 Fuel retainer WPA106S1A Lower vermiculite baffle WPA106S10 Upper steel baffle WPA106S5 Cast iron flue collar WPA106S1C...
-
Page 15: Troubleshooting
Problem Reason Action Troubleshooting Difficulty starting the fire Low flue draught Consult your installer and keeping it burning well Problem Reason Action Wet wood Use dry seasoned wood (≤ 20% moisture content) (≥ 20% moisture) Rapid creosote build-up in Wet wood Use dry seasoned wood (≤... -
Page 16: Warranty Claim Form
Warranty Claim Form In the unlikely event of a warranty claim, please complete the below claim form and return it to your supplying dealer: Customer Name: Warranty Information Customer Address: YEAR YEAR WARRANTY Postcode: With the aim of constantly door seals, vermiculite panels, improving our products, all baffle plates and ashpan runners. - Page 17 STOVES ACR Heat Products Limited, Unit 1, Weston Works, Weston Lane, Tyseley Birmingham B11 3RP, England. • Tel: 0121 706 8266 • E-mail: enquiries@acrheatproducts.co.uk • www.acrheatproducts.co.uk...
