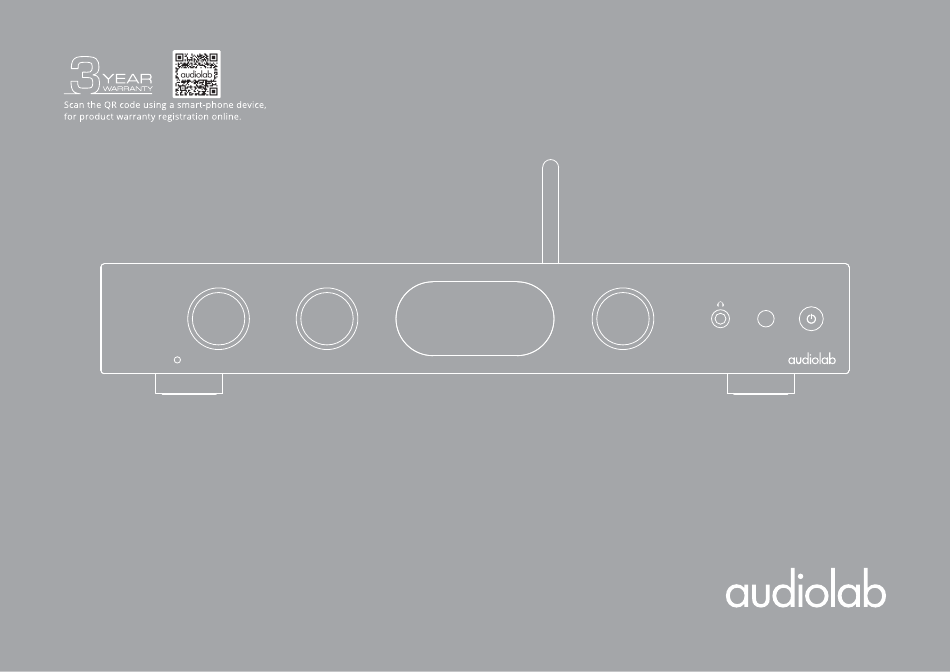

  • Page 1 MODE 7000A 7000A User Manual...
  • Page 2 System Operations 1: Important Safety Information CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Do not install this equipment in a confined or built-in space such as a bookcase or similar unit, and keep well ventilated in an open space.
  • Page 3 MQA and the Sound Wave Device are registered trademarks of MQA Limited ©2016 ISED Statement The Audiolab 7000A MQA on-screen indicator glows green or This device contains license-exempt transmitter (s) / receiver (s) that comply with blue to indicate that the unit is decoding and playing an MQA Innovation, Science and Economic Development Canada's licence-exempt RSS (s).

  • Page 4: Table Of Contents

    System Operations 2: Contents Audiolab 7000A Getting Started ........................................5 Controls and Functions ....................................6 Remote Handset ........................................ 7 Connections ......................................... 8 Menu Options ........................................System Operations ......................................13 Warranty Coverage ......................................17 Specifications ........................................19...

  • Page 5: Getting Started

    Outwardly resembling the sequential series and therefore offering a brand-wide • One remote handset visual aesthetic match, the Audiolab 7000A offers a 70W per channel output, a new DAC, a new full-colour IPS LCD screen and more! It maintains crisp ergonomics, •...

  • Page 6: Controls And Functions

    TRIG OPT 1 OPT 2 UPDATE COAX 1 COAX 2 DIGITAL RIGHT LEFT POWER AUX1 AUX2 AUX3 PHONO Direct Stream Digital INTEGRATED AMPLIFIER MODEL: 7000A Made in China Mains Input 12V Trigger USB Update Digital Inputs Analogue Inputs Connections Output...

  • Page 7: Remote Handset

    DEVICE handset and the unit for optimum remote control operation. Note: The buttons shown crossed out are for use with other Audiolab units and offer no function on the 7000A. For example, the 'LIST' and 'TIME' buttons MODE LIST MENU do not offer any function with the 7000A.

  • Page 8: Connections

    ‘No Input Signal’ will be displayed if there is no input signal to the Then, unplug the USB drive and restart the 7000A. The unit is now USB input. When you play a file the digital inputs will lock onto the ready to use.
  • Page 9 ARC Digital Input is selected. ARC function allows you to send audio from your ARC-compliant TV to 7000A through a single HDMI connection. To enjoy the ARC Phono Input (MM) function, please ensure your TV is both HDMI-CEC and ARC compliant and set up accordingly.

  • Page 10: Menu Options

    Upsampling < Input Sensitivity < Upsampling This feature allows the input sensitivity of AUX1 The 7000A will automatically upsample the individual analogue inputs to be AUX2 the incoming digital audio signal (SPDIF adjusted (+/- 6dB) to help achieve a more or PC USB) to 352.8KHz or 384KHz.
  • Page 11 DTS Play-Fi app to conveniently control the 7000A volume. Volume Sync is set to ‘On’ by default. If the 7000A is being used as a standalone integrated amplifier, or when you are not using the 7000N Play, you can set Volume Sync to ‘Off’.
  • Page 12 7000A into a standby model after 20 the 7000A. 20 minutes minutes of inactivity. This feature can be If you want 7000A to sync power on and 60 minutes also user-defined and set to 20 minutes, off with your TV, CEC should be set to 60 minutes or ‘never’.

  • Page 13: System Operations

    Navigate to 'Display Options' via the menu options (use the Vol +/- buttons on the remote or MODE knob on the front panel of the device for navigation). After initial powering on, the 7000A will be in ‘Standby’ mode. To use the 7000A, Choose and confirm by on the remote control or MODE knob on the front press the ‘Standby’...
  • Page 14 Although the 7000A is an integrated amplifier it can function as a separate pre and 7000A can be used as a stand-alone power amplifier (ie. part of an AV setup). This power amplifier. Rotate the MODE knob on the front panel or press the MODE key mode can also be used if additional signal processing is required, connecting the on the remote control to select different operating modes.
  • Page 15 +6dB Linear (Slow) Wide R +9dB VU Digital ON/OFF COAX2 COAX2 Normal AUX2 -6dB Time out VU Analogue Minimum (Fast) +6dB Wide Minimum (Slow) Audiolab AUX3 -6dB COAX2 Normal Hybrid (Fast) Display Off +6dB Wide Phono -6dB Animation +6dB Off...
  • Page 16 System Operations Page 16 8: System Operations The Menu Tree Display Settings Trigger Language Standby Reset Version Brightness English Never VER-1.43 Off Off 20min 简体中文 Time out 60min 繁體中文 Dansk Deutsche Español Animation Francais Off Italiano Nederlands Polski Suomalaninen...

  • Page 17: Warranty Coverage

    Please keep the original receipt/invoice in case it is required for a warranty claim. Damage in transit that cannot be attributable to the fault of Audiolab, the authorised distributor or dealer (ie. claims otherwise covered by transit insurance.) This Limited Warranty is non-transferable and is offered exclusively to the original owner.
  • Page 18 Audiolab website: Other than the warranty and services set out in this warranty, to the fullest extent www.audiolab.co.uk permitted by law, Audiolab shall not be liable to you and/or any third party or entity whatsoever for:...

  • Page 19: Specifications

    System Operations Page 19 10.Specifications 7000A Model General Description Integrated Amplifier - 2 x 70W (8 ohms) / 2 x 110W (4 ohms) Class AB - ES9038Q2M 32-bit DAC - 2.8" (480x640mm) Full View IPS LCD - Built in Certified Hardware MQA Full Decoder (PC USB, Coax / Optical) - Bluetooth 5.0 (aptX / aptX LL) Support...
  • Page 20 System Operations Page 20 10.Specifications Max. Sampling Frequency Optical, Coaxial: 192kHz; Ethernet, WiFi: 192kHz; USB A: 48kHz; PC USB: PCM768kHz, DSD512 Signal-to-Noise Ratio (S/N) > 114dB (A-weighted) Power Amplifier Section Gain +29dB Rated Power Output 2 x 70W (8 ohms, THD<1%); 2 x 110W (4 ohms, THD<1%) Frequency Response 20Hz-20kHz (+/-0.3dB) Total Harmonic Distortion (THD)
