Summary of Contents for Audiolab Omnia

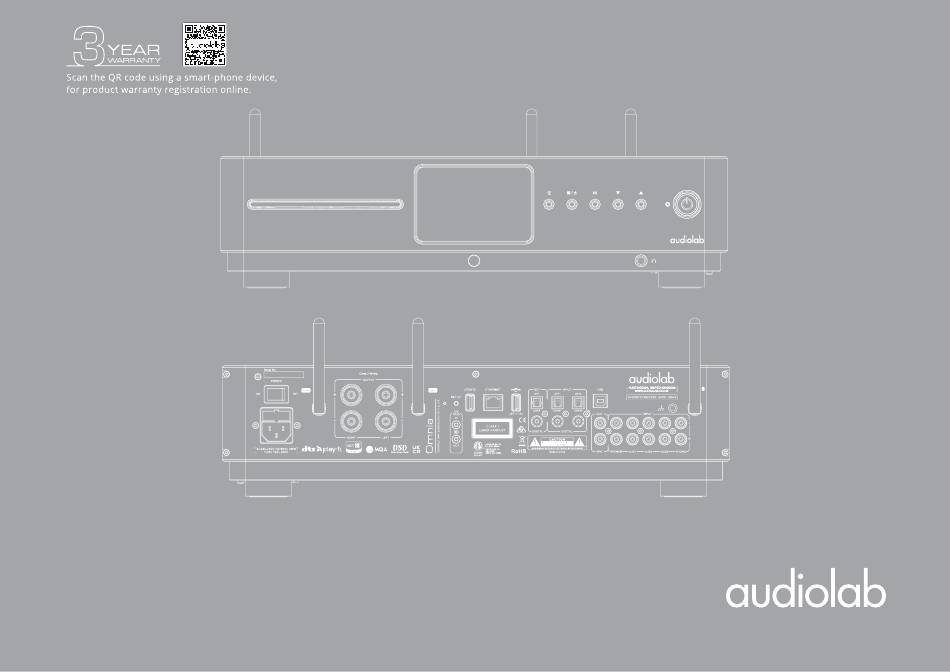

  • Page 1 Omnia User Manual...
  • Page 2 Playing System Operations Operations 1 : Important Safety Information apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
  • Page 3 Bluetooth SIG, Inc. and any use of such marks by IAG Group Ltd is under license. Other trademarks and The audiolab Omnia LED on screen glows green or blue to trade names are those of their respective owners.

  • Page 4: Table Of Contents

    Playing System Operations Operations 2: Contents audiolab Omnia Introduction ......................................... Controls and Functions ....................................6 Remote Handset ........................................ 7 Connections ......................................... 8 Menu Options ........................................System Operations ......................................11 DTS Play-Fi ......................................... 16 ® Wi-Fi Connection Setup ...................................... 18 Playing Operations ......................................
  • Page 5 The unit must be mounted on a solid, level and stable surface. • Inputs Before you connect the Audiolab Omnia to the AC mains power, ensure your AC mains voltage corresponds to the rating on the rear panel of the product. If in Three analogue line-level inputs •...

  • Page 6: Controls And Functions

    Playing System Operations Operations Page 6 4: Controls and Functions STOP & CD TRAY POWER LED OPEN/CLOSE VOLUME +/– WI-FI LED Device States Wi-Fi LED States (red) Power LED States Off Standby Mode Dark red Fast flash Fast flash white Initialization Mode Slow breathe Slow breathe white...

  • Page 7: Remote Handset

    Playing System Operations Operations Page 7 5: Remote Handset 1. STANDBY Press to bring the unit in / out of standby Fit the Batteries 2. STORE Press to store a track in program mode Open the cover, unwrap the supplied AAA batteries and place them in the battery compartment with the 3.

  • Page 8: Connections

    The Omnia features two 12V trigger connections, one output and one input. Use Loudspeaker Terminals the output to control other products. Use the input when the Omnia is to be One set of loudspeaker output terminals. controlled. The trigger connections are made using "3.5 to 3.5mm" jack interconnects (not include).

  • Page 9: Menu Options

    Mode Display Time Out The operational mode can be selected here. Adjust the time at which the Omnia Pre: all signals to and from the power display will revert to your chosen amplifier are disconnected. The Omnia will...
  • Page 10 This will avoid a sudden loud signal at the beginning of a new session. Trigger Reset Activate or deactivate the 12V trigger Reset the Omnia to the factory function of the Omnia. default settings. Language Version There are multiple different languages you...

  • Page 11: System Operations

    Page 11 8: System Operations Understanding the Omnia Playback Display Switch on all source units before switching on power to the Omnia. When switching on, the power LED illuminates. When switching off, switch off the Omnia before the source units.
  • Page 12 Alternative Display Options The Audiolab Omnia has an intelligent and versatile display. You can access the display options via the menu function. Press the MENU on the remote control to enter menu mode, or long-press the SOURCE button on the front panel of the device.
  • Page 13 LED becomes brighter and the display shows the “Omnia” welcome screen while the unit is getting ready for operation. Although the Omnia is an integrated amplifier it can function as a separate pre and power amplifier. Press the MODE key on the remote control to select different operating modes.
  • Page 14 The pre-amplifier section is internally disconnected from the power amplifier. The Omnia can be used as a stand-alone power amplifier (ie. part of an AV setup). This mode can also be used if additional signal processing is required, connecting the pre-out to an external signal processor and then take the output from the processor to the Omnia Power-IN.
  • Page 15 The menu enables you to customise the unit and optimise the interface with other equipment in your system. Omnia has 12 different menu pages. Press the MENU key on the remote to enter menu mode, and then press VOL- or VOL+ to turn to different setting, press to the sub-menu.

  • Page 16: Dts Play-Fi

    Playing System Operations Operations Page 16 ® 9: DTS Play-Fi DTS® Play-Fi® Features With DTS® Play-Fi® technology, stream your favourite music and content with WIRELESS SURROUND SOUND astounding audio quality, from every device that you own. All DTS Play-Fi enabled Surround yourself with sound, not wires.
  • Page 17 Connect the Ethernet port to the LAN port of the router using a suitable cable. Market or Apple App Store. For Windows PC you can download the Play-Fi After switching on the Omnia, the white LED on the front panel and red Wi-Fi LED Windows APP from the official website: https//play-fi.com on the rear panel will fast-flash during the initialise phase of Wi-Fi mode.

  • Page 18: 11 : Wi-Fi Connection Setup

    (1) Download one of the free Play-Fi APPs from the Google Play store, Amazon (3) Open the Play-Fi APP and find the Omnia Device. Select it and enter your App marketplace, or Apple App Store, or download the Play-Fi Windows PC wireless network password.
  • Page 19 (3) Click the Enter key or click the ‘continue’ option in your Internet browser. (4) This will open the Play-Fi configuration. (5) Select the ‘Set Up’ button. (8) You can name your Omnia device then click ‘NEXT’. The Wi-Fi connection will be done.

  • Page 20: Playing Operations

    Playing System Operations Operations Page 20 13: Playing Operations Play the CD Press button to play the programmed track. Press the remote control or panel button to load/exit the disc. Press button to stop playing the programmed track. Press the to play / pause the CD.
  • Page 21 32/44.1/48kHz 16bit .wav Connect your computer to Omnia via USB cable (type-A to type-B), change the 32/44.1/48kHz 32~320kbps .m4a Play mode to USB input using the handset or the button on the front panel.

  • Page 22: App Operations

    Playing System Operations Operations Page 22 14: APP Operations Device Selection Internet Radio The DTS Play-Fi APP allows you to control and direct streaming music to a variety of devices DTS Play-Fi has a built-in Internet Radio service that gives you access to throughout your home that use the DTS Play-Fi system.
  • Page 23 Playing System Operations Operations Page 23 14: APP Operations Media Server SoundMachine Got a hard drive full of music? Avid digital collectors can access and stream Business never sounded so good! Whether it’s in an office of from media servers using DTS Play-Fi. The system automatically discovers restaurant, a retailer or a hotel, background music enhances both and indexes music from DLNA and UPnP servers on your network.
  • Page 24 6000N PLAY, 6000A PLAY or other DTS Play-Fi Speakers, open the DTS Play-Fi APP, find the from your Omnia to other DTS Play-Fi wireless speakers or streamers via the app. Perfect for device or speaker, give it a name and then add it.
  • Page 25 Omnia1# Surround Sound So far, Omnia cannot support Play-Fi Surround. For common problems in utilization and fault diagnosis, you can open the APP settings to find the ‘Fault diagnosis’, then enter the DTS Play-Fi website knowledge base which has the detailed information.

  • Page 26: Warranty

    Playing System Operations Operations Page 26 15: Warranty Coverage...
  • Page 27 Other than the warranty and services set out in this warranty, to the fullest extent worldwide distributors available Audiolab website: list permitted by law, Audiolab shall not be liable to you and/or any third party or www.audiolab.co.uk entity whatsoever for:...

  • Page 28: Specifications

    Playing System Operations Operations Page 28 16: Specifications Omnia Model General Description Integrated Amplifier Total Harmonic Distortion (THD) < 0.0004% (1kHz @ 2V, Volume = 0dB) Frequency Response 20Hz-20kHz (+/-0.1dB) - 2x50W (8ohm) / 2x75W (4ohm) Class AB Design Philosophy and...
  • Page 29 Playing System Operations Operations Page 29 16: Specifications Headphone Amplifier Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW ) Output Impedance 10ohm Load Impedance 20-600ohm General Standby Power Consumption < 0.5W Net Weight 9.1kg Gross Weight 11kg Dimensions (mm) (W x H x D) 440 x156 x 327 Carton Size (mm) (W x H x D) 540 x 412 x 210...
  • Page 30 Corrent disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsible to promote the sustainable reuse of material resources.
  • Page 32 Audiolab IAG House, 13 /14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, Telephone: +44(0)1480 452561 Email: service@audiolab.co.uk http://www.audiolab.co.uk...
