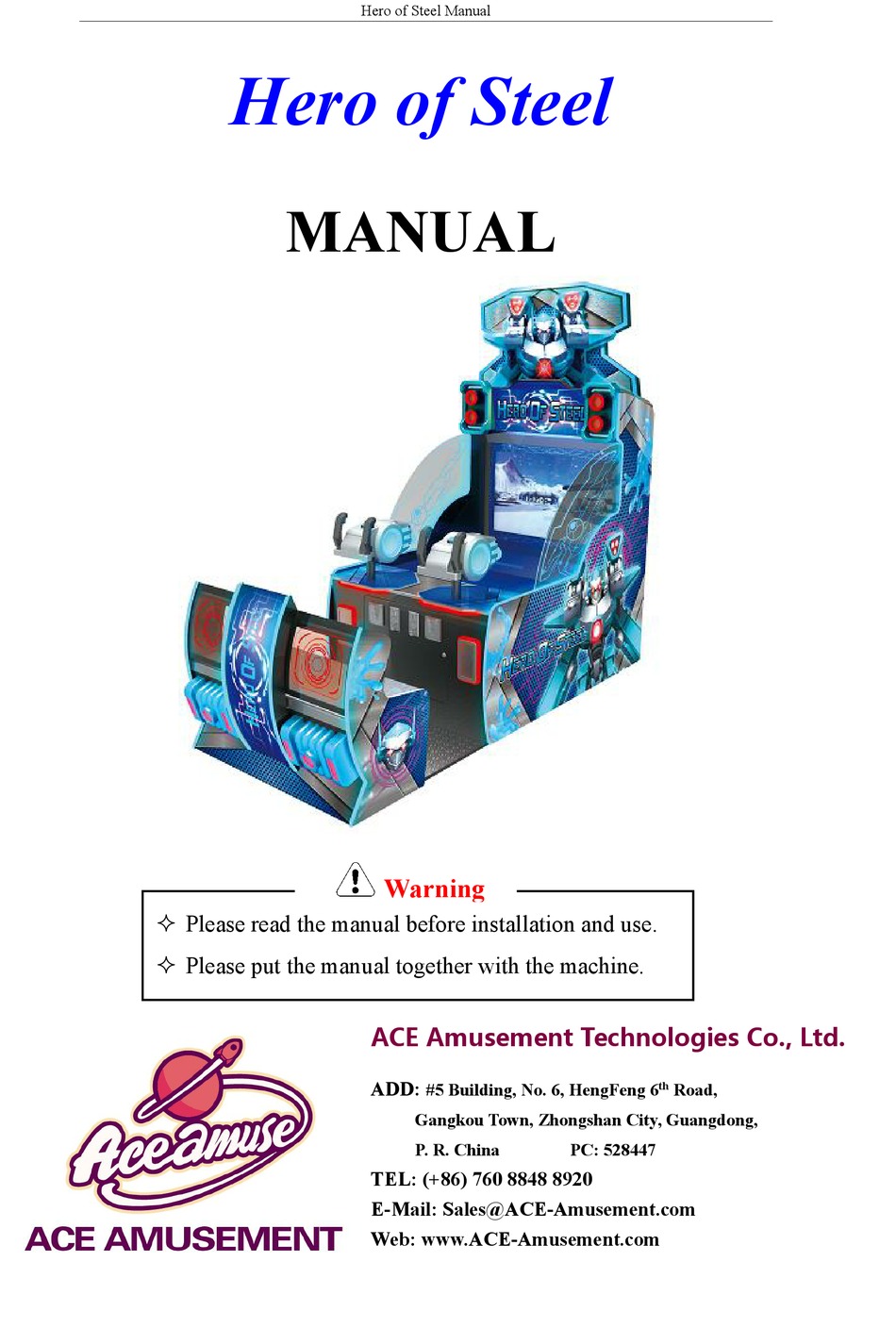

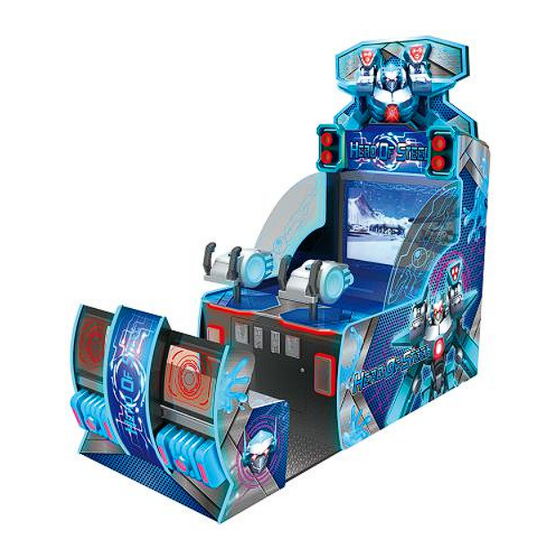

Hero of Steel
MANUAL
 Please read the manual before installation and use.
 Please put the manual together with the machine.
Hero of Steel Manual
Warning
ACE Amusement Technologies Co., Ltd.
ADD:
#5 Building, No. 6, HengFeng 6
Gangkou Town, Zhongshan City, Guangdong,
P. R. China
TEL: (+86) 760 8848 8920
E-Mail: Sales@ACE-Amusement.com
Web: www.ACE-Amusement.com
th
Road,
PC: 528447

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heroof Steel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ace Amusement Heroof Steel

Summary of Contents for Ace Amusement Heroof Steel

  • Page 1 Hero of Steel MANUAL Warning  Please read the manual before installation and use.  Please put the manual together with the machine. ACE Amusement Technologies Co., Ltd. ADD: #5 Building, No. 6, HengFeng 6 Road, Gangkou Town, Zhongshan City, Guangdong, P.

  • Page 2: Table Of Contents

    Hero of Steel Manual CONTENTS Introduction........................2 Specifications and Technical Parameters..............4 Accessory List....................... 5 How to Move and Position the Machine..............6 How to Move the Machine..................6 How to Position the Machine.................. 7 Unsuitable places.....................7 Where to Place......................7 Installation Location Dimension................8 Wiring and Precautions....................

  • Page 3: Introduction

    Hero of Steel Manual Introduction I. Company Profile Thank you for choosing the amusement machine produced by our company. We are a comprehensive enterprise integrating development, production, sales, operation and services. “Quality first, users first, services first” is our solemn promise to customers and our action guide.
  • Page 4 Hero of Steel Manual IV. Note on Safety: Before use, please note the safety warning stickers on the machine; while reading the manual, please pay special attention to some signs. We divide the safety warnings into 3 categories as follows. They mean different levels of danger. Danger It means there will be danger of harm to people due to improper ...

  • Page 5: Specifications And Technical Parameters

    Hero of Steel Manual Specifications and Technical Parameters 1) Operating Voltage: AC 220V - 240V, 50/60 Hz or AC110V±5%, 50/60 Hz 2) Minimum Power: 500W 3) Maximum Power: 1100W 4) Dimensions: W107 × D253 × H228 (cm) 5) Weight: 280Kgs 6) Operating Environment: Temperature (indoors): 0℃～35℃;...

  • Page 6: Accessory List

    Hero of Steel Manual Accessory list For the normal use of the machine, please open the package and carefully check whether the following items are included. The accessory list is below: Name Unit Picture Remark /Specification Cable 10A/250V-3M Φ5×20mm T5A Fuse 250VAC Pin for...

  • Page 7: How To Move And Position The Machine

    Hero of Steel Manual How to Move and Position the Machine How to Move the Machine There are trundles under the machine. When moving the machine for a short distance, you should raise foot to make the trundles touch the ground and push the machine. As there will be danger of overturning when the foot hits obstacle on the ground, you should move the foot up as much as you can and pay attention to obstacles ahead and uneven places when moving the machine along the ground.

  • Page 8: How To Position The Machine

    Hero of Steel Manual How to Position the Machine  Please place it on flat ground where it won’t slide easily;  Please use the following foot to fix the machine (as shown below) Loosen the tightly locked nuts of the foot, tighten the bolts of the foot with a wrench, and keep the trundle approximately 5mm away from the ground.

  • Page 9: Installation Location Dimension

    Hero of Steel Manual Installation Location Dimension The machine should be placed according to the following dimensions for customers’ safety and enough space to run the machine. Game area: 30cm Unit: mm Attention: The machine should not be placed at inclined place, or there may be an accident.

  • Page 10: Wiring And Precautions

    Hero of Steel Manual Wiring and Precautions  Connect one end of the cable to the terminal box of the machine, and connect the other end to the socket.  Connect the power supply according to the voltage on the label, or the machine might be damaged.
  • Page 11 Hero of Steel Manual Attention:  The cable cannot be pressed by heavy objects, or it might be easily damaged and cause short circuit, and even fire disaster.  When unplugging the cable, you should grasp the plug instead of the cable. ...

  • Page 12: Installation And Maintenance

    Hero of Steel Manual Installation and Maintenance Installation and commissioning  Please check the accessory list to assemble components before installation;  The ground must be flat and solid. After placing the machine, adjust the feet to the ground and horizontally fix it; ...
  • Page 13 Hero of Steel Manual Clean the outside of the display with clean and soft Display screen with no water; anything with acid is forbidden to touch the surface of the display.  Exhaust fan The exhaust fan is one of the main tools of dissipating heat inside the machine. It has to be clean and run normally with unobstructed outlet.

  • Page 14: Troubleshooting

    Hero of Steel Manual Troubleshooting Common Failure Phenomenon Main cause Troubleshooting After the machine is Please reconnect the power cable or replace it The screen is not connected to power supply. powered on,(the with new. power supply The signal wire of the screen is not connected or Please reconnect the signal wire or replace it works), but the display damaged...
  • Page 15 Hero of Steel Manual Phenomenon Main cause Troubleshooting No water comes out There is something blocking the small water Please clean the water gun or replace the gun or the solenoid valve controlling the small from the small water solenoid valve water gun is not on or does not work Press the start button, The holder of the start button falls off or goes...
  • Page 16 Hero of Steel Manual Installation and commissioning  Please check the accessory list to assemble components before installation;  After installation, plug the cable and turn on the machine to check whether each part runs well. If no, immediately turn off the machine for troubleshooting. Visual inspection To safely use the machine, please check the following before startup: ...
  • Page 17 Hero of Steel Manual Real Shot Pictures of Cleaning 1. Primary filter device The primary filter The water inlet of the primary components filter is above the sink 2. Secondary filter device 3.Sterilization device Sterilization ultraviolet The Secondary filter device radiation tube The Secondary filter device Sterilization device...
  • Page 18 Hero of Steel Manual Cleaning Steps Step 1: Remove the screws of tank baffle. Step 2: Remove the baffle. Step 3: Unplug the sensor connector. Step 4: Gently pull out tank by 1/3.connector. Step 5: Remove the secondary filter as shown Step 6: Unscrew the top cover after removing in the following two figures.
  • Page 19 Hero of Steel Manual Step 7: Remove the filter element and Step 8: Gradually install the secondary filter rinse with tap water until the dirt is according to the original disassemble steps. flushed. Step 10: gently push the tank back into the tank Step 9: Insert the sensor connector back slot and the tank baffle.

  • Page 20: Errpr Prompt

    Hero of Steel Manual Error Prompt 1. Cause: Disconnection with the IO board 2. Solution: Restart the machine, and press the reset button on the IO board (there is only one button on the board) 1. Cause: The memory of the host is insufficient 2.

  • Page 21: Game Description

    Hero of Steel Manual Game descriptions (I) Introduction to the Game （1）Have 9 levels. Pass two levels and open the new level. （2）The player gets the score and coin by shooting at various targets (small, medium and large targets) in the screen to maintain the player’s life value.
  • Page 22 Hero of Steel Manual (II) How to Play the Game 1. Boss fight: (1) Boss will appear in the last Boss level, every Boss has many forms, and the player needs to beat the Boss to pass the level. 【1】Boss form one in the experimental base 【2】Remote attack in Boss form one in the experimental base * All Boss attack has specific targets for the player to attack.
  • Page 23 Hero of Steel Manual 【7】Boss form one in ice factory 【8】Boss form two in ice factory 【9】Boss form one in the mysterious forest 【10】Boss form two in the mysterious forest 【11】Pas the level 【12】Continue to play *When the player’s life value is decreased to 0, the game will remind if the player continue to play or not. if the player inserts enough coins and presses the button, the game will continue;...

  • Page 24: Adjustment Of Game Program Setting

    Hero of Steel Manual (1) Some gold coins and medical kits may be scattered in levels, and the player can get a great amount of scores when hitting at the gold coin. If the player hits at the medical kit, the player can recover some energy. 4.
  • Page 25 Hero of Steel Manual 【4】I/O Output Test 【5】I/O Input Test 【7】Daily Record 【6】Bookkeeping 【9】Time Setting 【8】 Game Reset Game logo/standby image...

  • Page 26: Installation Figures And Steps

    Hero of Steel Manual Installation Figures and Steps Small light Ghost light connector LCD power Large light Ghost socket light connec signal Seat connection wire 座位连接线...
  • Page 27 Hero of Steel Manual Name Specification Speaker Whole tone, 4 inch, 4Ω, 25W ticket machine TL TL-001 generation 3rd Coin collector TL TW-131 C-012 12VDC 18CPS Counter (including diode) KEY1 Test (choose) KEY2 Confirm (replenish lotteries KEY3 Confirm (modify)
  • Page 28 Name Specification （MT-A5235） Industrial computer (mid tower) A55/5300/ memory 2G*2 hard disk16G Memory DDR3 4G R7350 2.0-A amplifier board Y-218B Stereo audio cable 3.5 double RCA 3M*2 IO main board MB-MINI..PCB V1.2 Zombie Outbreak in Chinese Casing line version USB data cable Type A/B 1m Upper mist power supply 48V 48V400W...
  • Page 29 Potentiometer RP502 Potentiometer RP502 controlling the cursor left and right...

  • Page 30: Hero Of Steeli/O Table

    Hero of Steel Manual Hero of Steel I/O Table V1.0...

  • Page 31: Very Important

    Very Important! When the first time using the machine, it need to make sure has fill enough water inside the Water Pump! Otherwise, the Water Pump couldn’t work properly! At the first time using, if you find out the water gun couldn’t shoot out water properly after you fill water, very possibility, it’s because it hasn’t enough water fill to the Water Pump.

  • Page 32: Instructions On Restoring U Disk

    Please forgive there inconvenience! Attention: The above technical parameters are subject to change without prior notice. ACE Amusement Technologies Co., Ltd. ADD: #5 Building, No. 6, HengFeng 6 Road, Gangkou Town, Zhongshan City, Guangdong, P. R. China...
