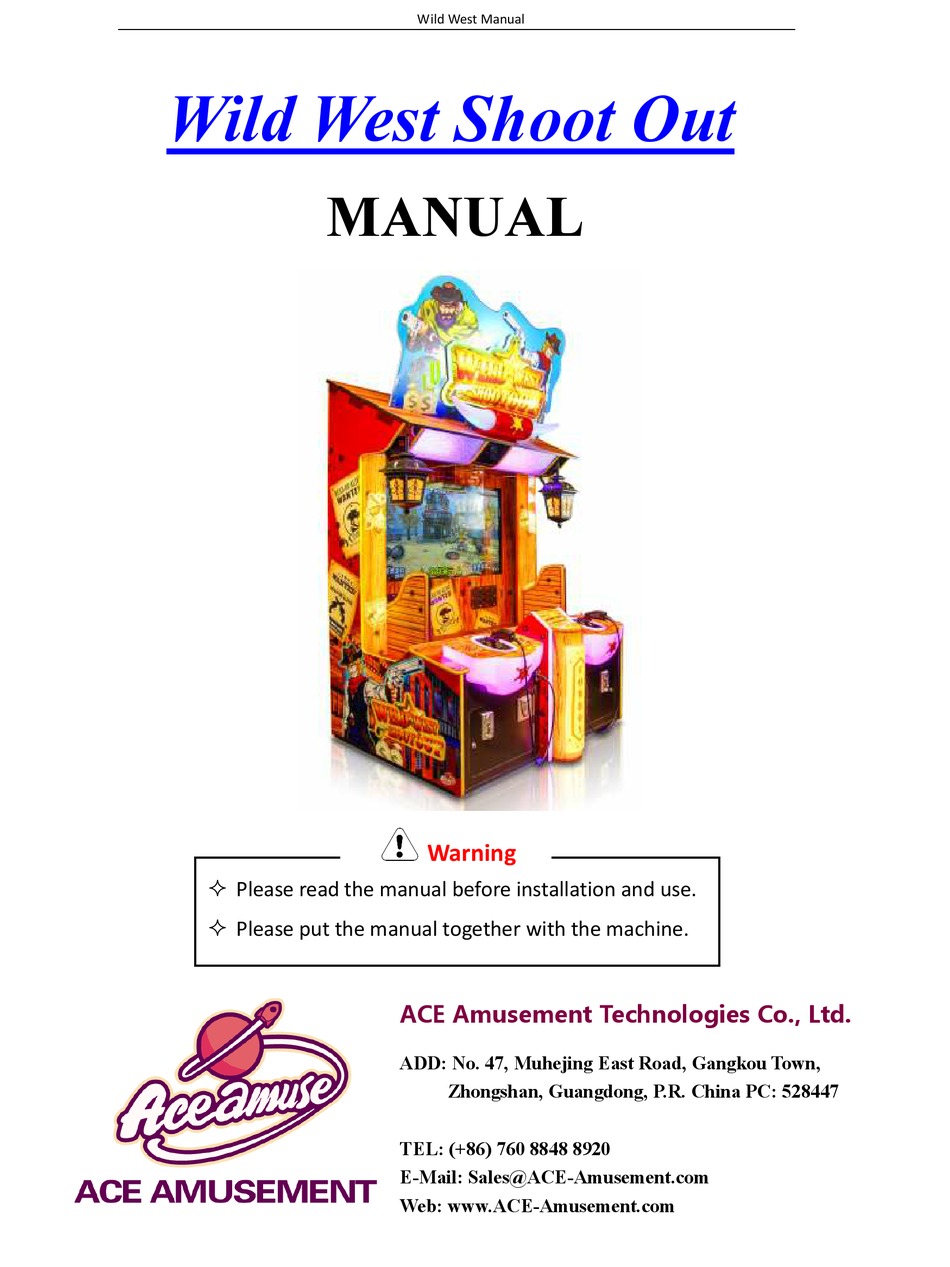

  • Page 1 Wild West Manual Wild West Shoot Out MANUAL Warning  Please read the manual before installation and use.  Please put the manual together with the machine. ACE Amusement Technologies Co., Ltd. ADD: No. 47, Muhejing East Road, Gangkou Town, Zhongshan, Guangdong, P.R.

  • Page 2: Table Of Contents

    Wild West Manual CONTENTS CONTENTS .................... 1 Machine Introduction and Features: ............2 I. Specifications and Technical Parameters ..........2 II. Accessory List ..................3 III. How to Handle and Position the Machine .......... 4 (I) Handling Method ................4 (II) Fixing method ................

  • Page 3: Machine Introduction And Features

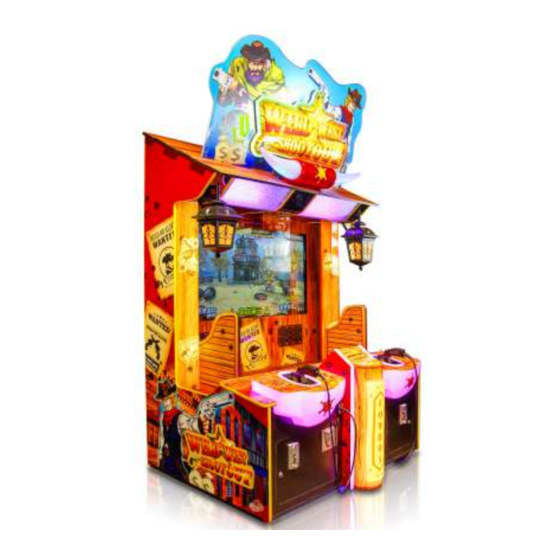

    Wild West Manual Machine Introduction and Features Wild West Shootout is a fun 2 player cowboy shooting arcade video game with redemption tickets for all ages players. Shoot the bad guys and avoid shooting the hostages to score points and win tickets that can be exchanged for tickets.

  • Page 4: Accessory List

    Wild West Manual 1) Operating Voltage: AC220V - 240V 50/60 Hz (or AC 110V±5%, 60Hz. ) For the specific voltage, see the nameplate on the machine. 2) Maximum Power: 270W 3) Overall Dimensions: W1400 * D1070 * H2520 (mm) 4) Weight: About 200 kg 5) Ambient condition: Temperature (indoors): 0 ～35 ;...

  • Page 5: How To Handle And Position The Machine

    Wild West Manual III How to Handle and Position the Machine (I) Handling Method The machine is equipped with caster under the base plate. When moving the machine for a short distance, you should raise foot to make the casters touch the ground and push the machine.

  • Page 6: (Iv) Installation Location Dimension

    Wild West Manual (IV) Installation Location Dimension The machine should be placed according to the following dimensions for customers’ safety and enough space to run the machine. Game area: IV Wiring and Precautions  Connect one end of the cable to the terminal box of the machine, and connect the other end to the socket.

  • Page 7: Game Description

    Wild West Manual V. Game Description 1. Game Play Description： ● Take the gun, aim at the enemies on the screen by front sight, and pull the trigger, within the safe distance of 0.9 meter from the screen. ● Shoot beyond the screen to reload fast, or wait for auto reload. ●...
  • Page 8 Wild West Manual UI Description Boss HP: The Boss is usually big in size, high HP, and has various attack means. Player needs skill to beat the boss. Red Ring: Red Rings show up when the Boss is attacking player, player needs to shoot the red ring to destroy enemies attack.

  • Page 9: Game Setting

    Wild West Manual ● Bonus Level: Player will automatically enter the bonus level after passing 2 levels. Bonus level contains 30 seconds, which rewards points only. ●Merchants can select game modes: Manual Mode: player can selection game levels; If player has no selection within 15 seconds, then the games starts as Beer Town- Wildness- Ancient Manor- Pirate Bay- Gold Mine in order.
  • Page 10 Wild West Manual ●The game difficulty is set at the background. No option for players. Tickets Settings ● Player scores and redeem the tickets. The staff can set up scores on tickets payout, instant tickets payout or tickets payout on clearing. ●...

  • Page 11: Background Setting

    Wild West Manual 3. Background Settings.：...

  • Page 12: Setting Description

    Wild West Manual 4. Setting Description: 1. Game Play Serrings: Set up number of insert-coins, game time etc. and other functions likewise. 2. Revenue data: Check the cost, tickets dispensed and playtime. 3. Hardware test: Check whether the input and output of the hardware are normal. 4.
  • Page 13 Wild West Manual 【Revenue Data】 1. Recent revenue (Confirm): Select the recent report (Daily Sheet,Month Sheet,Year Sheet). 2. Historical Data (Confirm): Enter and select year to review revenue data by month; Select month to review everyday revenue data. 3. Clear Data (for sure): Clear all the data, unrecoverable. 4.
  • Page 14 Wild West Manual 【1P Hardware Test】 1.1P Gun Adjustment：Adjust 1P laser gun 2.1P Ticket test(2)：Ticket payout testing 3.1P Gun Recoil Test：Press “Confirm”key, to test the recoil feedback of 1P gun 4.Back：get back to the main page in the background. 5.1P Coins Test:0 : Test insert-coin feedback 6.1P Shoot Test: When 1P gun fires shot, the font color will change from white to yellow.
  • Page 15 Wild West Manual 3. Save Coins on Power Down (on/off): whether the game cost is saved after shutdown or outage. 4. Company Logo (visible/invisible): whether the Icon of the manufacturing company is visible in standby mode. 5. Date and time: Set up data and time. 6.
  • Page 16 Wild West Manual 2. Appearance Inspection To ensure the safe use of the machine, please check the following before startup:  Whether the warning sign is intact, visible and stuck correctly.  Whether parameters of power supply are consistent with the requirements of the machine. ...

  • Page 17: Fault Analysis And Troubleshooting

    Wild West Manual VI. Fault Analysis and Troubleshooting Common Faults Fault phenomena Main cause Corrective action Please reconnect the power cable or replace it After the machine is The monitor is not energized. with new. powered (the power supply The signal wire of the display is not connected or Please reconnect the signal wire or replace it works), but the display damaged.
  • Page 18 Wild West Manual No shock when gun The Gun Electromagnet or the fuse been damaged Check and replace if damaged. shooting The button holder is broken or replaced, the Pressing start The start button holder is loose, and the switch switch wire is pressed, and the start button cannot start the game.

  • Page 19: Error Code

    Wild West Manual VII. Error Code Description Cause: Disconnection with the IO board Solution: Restart the machine, and press the reset button on the IO board (there is only one button on the board) Cause: No enough tickets, or the ticket machine is damaged Solution: Replenish ticket;...

  • Page 20: How To Upgrade The Game Software

    Wild West Manual VIII. How to Upgrade the Game Software 1. Initiation of the Upgrade USB disk: 1) Unzip the compressed files; 2) Prepare a new USB disk, copy the decompressed files to the USB’s root directory; 3) The Upgrade USB disk is complete. 2.
