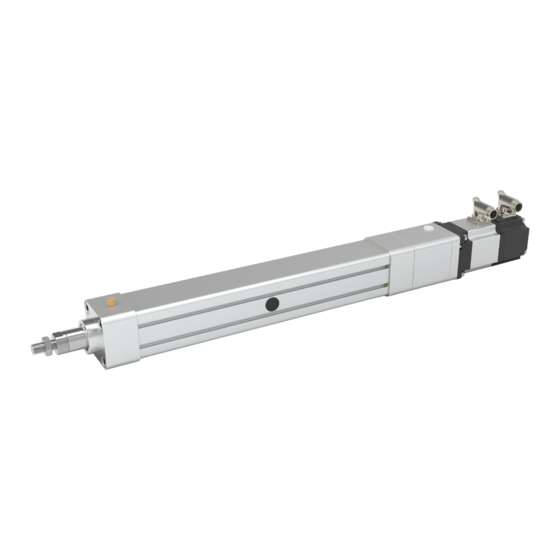

Linear servoactuators

Advertisement

Quick Links

LINEAR SERVOACTUATORS
SA (SA, SA-IL, SA-PD Versions)
Installation, Use and Maintenance Manual
Code: 40.0x.E Rev. 07 Date (M/Y) 11/19
Servomech S.p.A. S.U. Via Monaldo Calari, 1 40011 Anzola Emilia (BO)
ITALY
Ph: + 39 051 6501711 Fax: + 39 051 734574
www.linearmech.com sales@linearmech.com
Servomech S.p.A.
40.0x.E - Rev. 07 Date (M/Y) 11/19
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA and is the answer not in the manual?

Questions and answers

Summary of Contents for Servomech SA

  • Page 1 SA (SA, SA-IL, SA-PD Versions) Installation, Use and Maintenance Manual Code: 40.0x.E Rev. 07 Date (M/Y) 11/19 Servomech S.p.A. S.U. Via Monaldo Calari, 1 40011 Anzola Emilia (BO) ITALY Ph: + 39 051 6501711 Fax: + 39 051 734574 www.linearmech.com sales@linearmech.com Servomech S.p.A.
  • Page 2: Warnings

    This manual should be considered as product element; it includes information for a proper actuator installation, set and maintenance. Servomech S.p.A. does not assume responsibility for actuator misuse, not complying performances and limits indicated on our catalogue. Any operation for actuator installation, use and maintenance done not fulfilling all prescription mentioned on this manual, voids warranty conditions and Servomech S.p.A.
  • Page 3: Table Of Contents

    SA LINEAR SERVOACTUATORS (SA, SA-IL, SA-PD versions) Installation, Use and Maintenance Manual Contents WARNINGS ................................. 2 Contents ................................3 MODELS COVERED BY THIS DOCUMENT ....................5 MANUFACTURER AND PRODUCT IDENTIFICATION ..................5 Manufacturer identification ....................... 5 Product identification ......................... 5 Identification labels positioning ......................
  • Page 4 Servo actuator lubrication ........................28 Lubricant ............................29 Relubrication intervals ........................30 Removal and replacement ........................31 SA IL – Disassembly of the motor .....................31 SA PD – Disassembly of the motor ....................32 SA PD – Belt tensioning ........................34 Servomech S.p.A. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 5: Models Covered By This Document

    Actuators series SA: SA0, SA1, SA2, SA3, SA4, SA5, SA6  Servo-actuators SA IL series: SA 0 IL, SA 1 IL, SA 2 IL, SA 3 IL, SA 4 IL, SA 5 IL, SA 6 IL  Servo-actuators SA PD series: SA 0 PD, SA 1 PD, SA 2 PD, SA 3 PD, SA 4 PD, SA 5 PD, SA 6 PD 2 MANUFACTURER AND PRODUCT IDENTIFICATION 2.1 Manufacturer identification...
  • Page 6 Encoder: motor feedback resolution [ppr];  IP54: motor IP enclosure;  I.CL.F: motor insulation thermal class (F);  : brake power supply [V];  : brake nominal torque [Nm];  : brake power consumption [W]. Servomech S.p.A. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 7: Identification Labels Positioning

    2.3 Identification labels positioning Following pictures show label positioning on servo-actuator, servo-motor and assembled products. 2.3.1 Label positioning – SA Servo-actuator A = servo-actuator label 2.3.2 Label positioning – SA-IL Servo-actuator A = servo-actuator label B = servo-motor label 2.3.3 Label positioning – SA-PD Servo-actuator...
  • Page 8: Transport And Handling

    The ball screw inside the actuator is NOT self-locking. Never lift the linear actuator upright from the push rod as the actuators could be back driven by its own weight. Figure 3.1 – Transport and handling Servomech S.p.A. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 9: Product Use Limits

    Any other use is improper and therefore potentially dangerous for operators safety, as well as it voids the warranty. In event of special needs, please consult our sales office. Any modifications of servo-actuators must be authorized by Servomech S.p.A. by written documents. ANY OTHER DIFFERENT USE IS NOT ADMITTED BY MANUFACTURER. 4.1.2 Use restrictions Servo-actuators can not be used for unforeseen applications.
  • Page 10: Environmental Conditions

    4.1.3 Environmental conditions The servo-actuator must be used with the environmental conditions prescribed by Servomech S.p.A. All works necessary to obtain and maintain such environmental conditions are in charge by the machinery manufacturer and, if occur, by the end user.
  • Page 11: Installation, Wiring And Commissioning

    BRUSHLESS SERVOMOTOR MUST BE CONNECTED TO A SERVO-DRIVE, PROPERLY SELECTED BY QUALIFIED PERSONNEL. SERVOMECH S.P.A. IS AT CUSTOMER’S DISPOSAL TO GIVE THE NEEDED SUPPORT FOR SERVO-DRIVE SELECTION AND PROPER USE. PLEASE READ CAREFULLY THE SERVO-DRIVE INSTRUCTION MANUAL TO COMMISSION, SET AND MAINTAIN THE DRIVES PROPERLY.
  • Page 12: Servo Actuator Limit Switches: Mounting And Positioning

    FCM sensor mounting The FCM sensor is fitted from the top; when in the required position, they can be fixed by turning clockwise the screw until stroke end. FTV Sensor FCM Sensor Servomech S.p.A. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 13 165.6 165.5 81.5 Table 6.2 – Sensors limit positions §: FTV sensor limit position - valid for strokes C≥150mm only *: FTV sensor limit position - valid for strokes C≥100mm only Servomech S.p.A. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 14: Limit Switches Wiring

    PVC black PUR black Cable 3x0.25mm - L = 3m 3x0.14mm - L = 2m BN = brown BK = black Wiring diagram BU = blue Table 6.3 – Sensors technical data Servomech S.p.A. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 15: Brushless Motors Bm

    Mass W/O brake / with brake 0.9 / 1.2 1.25 / 1.90 1.85 / 2.50 m [kg] Table 6.4 – BM series servomotors ) The DC values in table are referred to trapezoidal switching. Servomech S.p.A. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 16 Max radial load on motor shaft Max radial load on motor shaft Mass W/O brake / with brake 3.3 / 5.0 5.2 / 7.4 7.8 / 10.0 m [kg] Table 6.4 – BM series servomotors Servomech S.p.A. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 17: Feedback Devices On Bm Brushless Motors

    Sin Cos 1V Sin/Cos periods per revolution [ppr] 2048 Working temperature [°C] -40 ÷ +120 Max speed [rpm] 10000 (§) not available on BM45 brushless motor Table 6.5 – Feedback devices Servomech S.p.A. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 18: Thermal Protections Available On Brushless Motors

    Rated current Insulation voltage [kV] Table 6.6 – Thermal protection Following picture shows how each thermal protector works. NOTE: THERMAL PROTECTIONS ARE NOT AVAILABLE IN CASE OF MOTOR EQUIPPED WITH BRAKE (B). Servomech S.p.A. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 19: Bm Motor Wirings

    CLOCK Ch B/ Ch B/ CLOCK/ Phase V TP (opt.) TP (opt.) TP (opt.) TP (opt.) Brake +Vdc Brake 0Vdc (§) not available on BM45 Phase W TP = thermal protector Servomech S.p.A. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 20: Bm82 E Bm102 Motor Connectors

    Phase U Ch B/ DATA/ Phase V TP (optional) TP (optional) TP (optional) TP (optional) Brake +Vdc Ch A/ CLOCK/ Ch A CLOCK Brake 0Vdc Phase W TP = thermal protector Servomech S.p.A. S.U. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 21: Cables Wiring

    RED - 0.14mm BLUE - 0.14mm WHITE/BLACK - 0.14mm WHITE/YELLOW - 0.14mm GREY - 0.14mm GREEN/RED - 0.25mm BROWN/GREY - 0.25mm BROWN/RED - 0.5mm BROWN/BLUE - 0.5mm Connector body SHIELD Servomech S.p.A. S.U. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 22: Bm45 And Bm63 With Encoder E01 And Tp Signal Cable

    GREEN - 0.14mm DATA/ BLACK - 0.14mm CLOCK BROWN - 0.14mm CLOCK/ 5, 6, 7, 8, 9 BROWN/YELLOW - 0.25mm GREEN/BLACK - 0.25mm BROWN/RED - 0.5mm BROWN/BLUE - 0.5mm Connector body SHIELD Servomech S.p.A. S.U. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 23: Bm82 And Bm102 Motor Power Cable

    BROWN/YELLOW - 0.25mm GREEN/BLACK - 0.25mm BROWN/RED - 0.5mm BROWN/BLUE - 0.5mm Connector body SHIELD Note (*) – in case HDT Lovato drive is used, please refer to FUNCTION HDT column. Servomech S.p.A. S.U. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 24: Bm82 And Bm102 With Encoder A01 Signal Cable

    GREEN - 0.14mm DATA/ BLACK - 0.14mm CLOCK BROWN - 0.14mm CLOCK/ 3,4,5,13,14,15,16 BROWN/YELLOW - 0.25mm GREEN/BLACK - 0.25mm BROWN/RED - 0.5mm BROWN/BLUE - 0.5mm 6, 7 Connector body SHIELD Servomech S.p.A. S.U. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 25: Push Rod Shifting Direction

    Figure 6.7 – Push rod shifting direction 6.10 Actuator mechanical installation THE BALL SCREW LINEAR ACTUATOR SA SERIES IS NOT SELF-LOCKING. BEFORE TO APPLY ANY AXIAL LOAD ON THE PUSH ROD, LOCK THE INPUT SHAFT OR USE THE MOTOR BRAKE.
  • Page 26 Dimensions “Lc” and “La” are indicated on following picture; custom product execution could have different lengths and are contractually defined. Figure 6.8 – “Lc” and “La” dimensions “S” quote Servo actuator size SA IL SA PD Servomech S.p.A. S.U. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 27: Installation Of Rod End Fitting Elements

    The actuator is equipped with internal anti-rotation device: DO NOT TRANSFER ANY TORQUE TO THE PISTON ROD. WARNING: in case of torque transfer into the actuator, the internal mechanical components can be damaged. Figure 6.10 – Installation of rod end fitting elements Servomech S.p.A. S.U. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
  • Page 28: Start Up

    6.11 Start up  SA servo actuators are supplied already lubricated and ready to be used.  Perform a complete working cycle with reduced speed and current.  Perform some working cycles, increasing by degrees speed and current, up to the values required.
  • Page 29: Lubricant

    A = constant value specific for each size (see following table): Servo actuator sizes -3.5 -5.5 Table 7.2 – Lubrication position 7.3 Lubricant SA servoatuator are supplied already lubricated, with lubricant indicated in the table below. ® LUBCON Thermoplex ALN 1001 - Technical data Characteristics Reference norms Colour...
  • Page 30: Relubrication Intervals

    For a servo actuator use under nominal performances and standard environment conditions, the lubricating time interval is set to 10 ball screw rotations. In case of heavier or particular working conditions, please contact Servomech S.p.a. to evaluate different lubrication interval. Following table gives all lubricating information for all sizes and versions available.
  • Page 31: Removal And Replacement

    8 Removal and replacement Servo actuator components may only be dismantled and replaced by Servomech. The only exception to this rule is the disassembling of the motor. The disassembling procedures are described in following sections. 8.1 SA IL – Disassembly of the motor Power transmission between motor and ball screw is made by a coupling.
  • Page 32: Sa Pd - Disassembly Of The Motor

    Power transmission between motor and ball screw is made with a timing belt. To disassemble the motor see the following work steps. Figure 8.3 – SA PD disassembly of the motor  Remove the plugs (10), the screws (9) and washers (8).
  • Page 33 To remove the motor pulley please see the following work steps. Figure 8.4 – SA PD disassembling of the motor pulley  Loosen the locking screw (16) of the pulley (15). React the torque using a wrench on the motor shaft in the area behind the pulley (14).
  • Page 34: Sa Pd - Belt Tensioning

    8.3 SA PD – Belt tensioning Belt tension is adjustable as described in following. Figure 8.6 – Belt tensioning  Loosen the four special screws (1) by ¼ ÷ ½ turn. WARNING: during belt tensioning the plate (2) must be in contact with the actuator body (3);...
  • Page 35 169 ± 5 191 ± 5 frequency fr of the belt [Hz] Belt tension 10.4 12.8 10.7 23.6 18.9 checking force F Belt deflection f [mm] Table 8.7 – Belt tensioning Servomech S.p.A. S.U. 40.0x.E - Rev. 07 Date (M/Y) 11/19...
