Page 1 X5 3D CEPH/CEPH Ready T e c h n i c a l m a n u a l c o d . 9 7 0 7 1 2 5 1 - r e v . 0 7 / 2 7 . 0 5 . 2 2...
Page 3 9 7 0 7 1 2 5 1 r e v . 0 7 27.05.2022...
Page 5: Table Of Contents
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Contents 1. GENERAL WARNINGS ................................3 1.1 Foreword ....................................3 1.2 Safety instructions ................................3 2. PACKAGING AND HANDLING ..............................7 2.1 Handling and storage ................................7 2.2 Damage during shipment ..............................7 3. PREINSTALLATION ..................................9 4. DEVICE INSTALLATION AND CALIBRATION ........................11 4.1 Assembly instructions .................................
Page 6 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 5. CONTROL PANELS AND DISPLAY SYMBOLS ........................181 5.1 Console onboard the machine ............................181 5.2 Pushbutton panel on CEPH arm ............................182 6. SERVICE MENU ..................................183 7. CIRCUIT BOARDS ..................................185 7.1 Unit block diagram ................................185 7.2 LOGIC board (97661808) ..............................186...
Page 7: General Warnings
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 1. GENERAL WARNINGS 1.1 FOREWORD The device described in this manual is manufactured by CEFLA s.c. - via Selice Provinciale 23/A - 40026 Imola (BO) Italia, which is the manufacturer, in compliance with the applicable European Directives detailed in the declaration of conformity.
Page 8 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL SYMBOL DESCRIPTION ATTENTION: Refer to instruction manual-booklet ATTENTION: Disconnect mains plug from electrical outlet WARNING: See the technical manual WARNING: Failure to observe instructions may result in equipment damage or injury to the user WARNING: High voltage...
Page 9 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL SYMBOL DESCRIPTION WARNING: Combustible and flammable materials DANGER: Tipping over DANGER: Heavy object. Two persons are required WARNING! ALWAYS DISCONNECT power supply before performing any maintenance or cleaning operation. The packed device must be handled using, where possible, suitable mechanical means (forklift, pallet truck, etc.) and following the indications on the package.
Page 10 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL GENERAL WARNINGS...
Page 11: Packaging And Handling
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 2. PACKAGING AND HANDLING 2.1 HANDLING AND STORAGE Indications regarding storage, handling and unpacking are given on the outside of the cardboard packaging. These indications must be strictly observed. 1) The package must be kept upright in the direction indicated by the arrows at all times...
Page 12 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL PACKAGING AND HANDLING...
Page 13: Preinstallation
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 3. PREINSTALLATION Follow instructions described in the INSTALLATION PLAN, available on Extranet. PREINSTALLATION...
Page 14 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL PREINSTALLATION...
Page 15: Device Installation And Calibration
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4. DEVICE INSTALLATION AND CALIBRATION 4.1 ASSEMBLY INSTRUCTIONS Installation of the device unit must be done by qualified technicians in accordance with the mechanical and electrical assembly instructions defined as follows. Check that the voltage indicated on the system info plate corresponds to that of the electrical system. REQUIRED INSTRUMENTS 4.1.1 REMOVAL OF PACKAGING DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 16: Wall Mounting
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.1.2 WALL MOUNTING Standard Optional 10mm For further information, see the supplied INSTALLATION DIAGRAM. DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 17: Freestanding Base
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.1.3 FREESTANDING BASE NO CEPH NO CEPH CEPH CEPH CEPH CEPH NO CEPH NO CEPH ±h further information, supplied INSTALLATION DIAGRAM. DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 18: Wall-Mounted Column
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.1.4 WALL-MOUNTED COLUMN Not included 220kg 220kg 20mm included 30mm Included DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 19 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL ONLY IF CEPH ARM IS PRESENT Put the screws in place before fixing the column to the wall (do not tighten) See “Screw kit”, section “Cinematic group installation” Tighten DEVICE INSTALLATION AND CALIBRATION...
Page 20 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL The stabilisation bushes must be screwed until they stop at the bottom CHECK! The bushes must not protrude beyond the inner column If the bushes are not flush with the column, check the correct tightening of the nuts and the bushes DEVICE INSTALLATION AND CALIBRATION »...
Page 21: Cinematic Group Installation
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.1.5 CINEMATIC GROUP INSTALLATION Screw kit DESCRIPTION Q.TY SCREW TCEI M8x20 12.9 12 / 14 ELAS GROWER WASHER FOR M8 15 / 17 SCREW TE M8X20 INOX SCREW TCEI M8X30 8.8 SCREW TPSEI M6X16 10.9 SCREW TCEI M5X16 8.8...
Page 22 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 20mm DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 23 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL SAFETY SCREWS REMOVAL 3D ONLY DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 24 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 2D ONLY 3D ONLY DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 25 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL x6 / x8 x6 / x8 x2 / x4 x2 / x4 Screw-in and tighten Put the screws in place - DO NOT TIGHTEN Tighten Screw-in and tighten DEVICE INSTALLATION AND CALIBRATION...
Page 26 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL WITHOUT WITH CEPH ARM: CEPH ARM: Screw-in and tighten See page 26 - image 3 DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 27 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Power board (see point 11 “Electrical connections on power board”) Connect: LAN (sensor) LAN (logic) DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 28 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Electrical connections on POWER board Power board 110VOLT INSTALLATIONS ▼ Replace with: 97769300 FUSE 6,35X32 20A 250V COLUMN LOWER ENDPOINT PHOTOCELL COLUMN UPPER ENDPOINT K13/K22 PHOTOCELL / COLUMN ANTI-PINCH SWITCH COLUMN MOTOR THERMAL SENSOR...
Page 29 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL X-Ray button CONNECTOR FUNCTION BROWN X-RAY Emission WHITE Green “Ready” LED BLUE Orange “X-Ray” LED For further information, see the supplied INSTALLATION DIAGRAM. DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 30: Ceph Arm Installation (If Present)
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.1.6 CEPH ARM INSTALLATION (IF PRESENT) Screw-in and tighten Screw-in and tighten 20mm Screw-in and tighten 30mm DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 31 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CLICK! DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 32 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CLICK! Logic board (see point 8 “Electrical connections on logic board”) DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 33 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Electrical connections on LOGIC board Logic board CEPH SYNCHRONIZATION SIGNAL K43/K44 CEPH KEYBOARD CEPH LIMIT SWITCH CEPH MOTOR DEVICE INSTALLATION AND CALIBRATION » Assembly instructions...
Page 34: Check During The Assembling
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.1.7 CHECK DURING THE ASSEMBLING PREINSTALLATION CHECK RESULT OK Intact external package  Check compliance of delivery documents  Check ID label/package labels match  Check place of installation and supplies* ...
Page 35: Cover Installation
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.2 COVER INSTALLATION Screw kit SYMBOL DESCRIPTION SYMBOL DESCRIPTION SCREW TCEI M5X10 8.8 SCREW T/BOMB EI M4X10 10.9 ELAS GROWER WASHER FOR M8 SCREW TCEI M5X16 8.8 SCREW TCEI M8X20 8.8 ELAS GROWER WASHER X M5 SCREW TCEI M4X6 8.8...
Page 36 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Cover installation...
Page 37 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Cover installation...
Page 38 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CLICK! Connect: CLICK! K1 / K11 ► Logic board K12 ► Ear guides potentiometer K13 ► Nasion potentiometer K14 ► Cephalostat drum sensors (see section “Circuit boards”) DEVICE INSTALLATION AND CALIBRATION » Cover installation...
Page 39 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CLICK! CLICK! DEVICE INSTALLATION AND CALIBRATION » Cover installation...
Page 40 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CLICK! DEVICE INSTALLATION AND CALIBRATION » Cover installation...
Page 41: Covers Removal
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.3 COVERS REMOVAL CLICK! DEVICE INSTALLATION AND CALIBRATION / Covers removal...
Page 42 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CLICK! CLICK! DEVICE INSTALLATION AND CALIBRATION / Covers removal...
Page 43: Operating System Configuration
hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL 4.4 OPERATING SYSTEM CONFIGURATION 4.4.1 SYSTEM REQUIREMENTS The device works with 2 Ethernet connections, one for generic communication with the PC (that can be connected to a local area network) and another one (which must absolutely be point-to-point) dedicated to image acquisition from the 3D panel, therefore connecting the device to the INTEL GIGABIT network card of the computer.
Page 44: Power Management Settings
hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL 4.4.3.1 POWER MANAGEMENT SETTINGS DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 45 hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL Disabling “Fast start-up” DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 46: Operating System Optimization Settings
hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL 4.4.3.2 OPERATING SYSTEM OPTIMIZATION SETTINGS DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 47 hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 48: Disabling "Windows Auto-Update Service
hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL 4.4.3.3 DISABLING “WINDOWS AUTO-UPDATE SERVICE” DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 49: Disabling Windows Update Sharing Over The Network (Low Data Traffic)
hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL 4.4.3.4 DISABLING WINDOWS UPDATE SHARING OVER THE NETWORK (LOW DATA TRAFFIC) 4.4.3.5 FIREWALL SETTINGS, PRIVACY AND SECURITY See document 97050743 “SOFTWARE Main Workstation Security Guidelines“ DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 50: Windows Defender" Settings
hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL 4.4.3.6 “WINDOWS DEFENDER” SETTINGS DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 51 hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 52: Device Installation Settings
hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL AFTER SOFTWARE INSTALLATION (see paragraphs “Acquisition Server Plus software installation“, “iRYS software installation and configuration“) 4.4.3.7 DEVICE INSTALLATION SETTINGS DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 53 hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL gpedit.msc DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 54 hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 55: Pc-Device Connection
hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL 4.4.4 PC-DEVICE CONNECTION The device may be connected to a local area network or directly to the main workstation. In both cases, the Ethernet connection for sensors must be point-to-point and is always managed autonomously by the software and the machine. The network card dedicated to the communication with the device must be configured as follows.
Page 56: Case 2 - Device-Pc Connection Over The Network (Setting A Dynamic Ip Address On The Network Card)
hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL 1->254 160 (IP Device) 161 (IP Console) 4.4.4.2 CASE 2 - DEVICE-PC CONNECTION OVER THE NETWORK (SETTING A DYNAMIC IP ADDRESS ON THE NETWORK CARD) Dynamic IP Cat. 6 (min.) It is necessary to set a dynamic IP address for the network card dedicated to PC – device communication. DEVICE INSTALLATION AND CALIBRATION »...
Page 57 hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 58: Configuration Of "Intel®" Network Card For Sensors
hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL 4.4.5 CONFIGURATION OF “INTEL®” NETWORK CARD FOR SENSORS Before carrying out the operations described in See chapter the next paragraph, installation of “Acquisition “Software installation” Server Plus” software is required ONLY FOR: INTEL® Ethernet I210-T1 GbE The dedicated net interface for the communication with sensors must be an Ethernet I210-T1 GbE INTEL® or ...
Page 59 hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL Open Acquisition Server Plus and launch the tool Giga Ethernet Card Configuration. Select the product and afterwards the net interface for the automatic scan of the properties. Click on “Change IP” and “Fix Properties” to apply the correct configuration. DEVICE INSTALLATION AND CALIBRATION »...
Page 60 hyperion X5 2D CEPH/CEPH Ready - TECHNICAL MANUAL All properties status must be green. CHECK! DEVICE INSTALLATION AND CALIBRATION » Operating system configuration...
Page 61: Software Installation
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.5 SOFTWARE INSTALLATION 4.5.1 “ACQUISITION SERVER PLUS” SOFTWARE INSTALLATION THE “ACQUISITION SERVER PLUS” SOFTWARE REQUIRES ADMINISTRATOR RIGHTS TO RUN Software Acquisition Server Plus Acquisition Server Plus DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 62 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Confirm as requested by the installer to complete the installation. WARNING: Drivers for communication with 2D sensors will be installed during this installation. DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 63: Cbct Panel Installation
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.5.2 CBCT PANEL INSTALLATION WARNING: each panel is equipped with a specific installation CD, containing data that are not interchangeable with other units. Carefully keep the CD and make sure that at least one backup copy is available.
Page 64 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL USER MODE: cefla DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 65: Device Search And Connection
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL SERVICE MODE: 4.5.3.1 DEVICE SEARCH AND CONNECTION DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 66 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 67 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL NOTE: should it be necessary to change the device IP address for any need, it is possible to change it from the menu “Settings -> Device Options” A fixed IP can be set in this window in the field “Fall back Ip address”. Removing the tick from “DHCP” will make it impossible for the device to obtain a dynamic address by a router.
Page 68 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL RP162 / DEVICES PRODUCED PHE GW-535 / ISTISAN 20/22 FROM 25/01/2021 COMPLIANT COMPLIANT DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 69: Sensor Search And Connection
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.5.3.2 SENSOR SEARCH AND CONNECTION A firmware update may be required after the sensors’ connection See chapter “Connectivity > Firmware upgrade” DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 70 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL For sensors with REFTYPE: 96600426 - 96602209 CHECK! Verify sensor’s REFTYPE DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 71 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL For sensors with REFTYPE: 96602331 - 96602334 CHECK! Verify sensor’s REFTYPE CHECK! DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 72 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 73: Pleora Driver Installation
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.5.4 PLEORA DRIVER INSTALLATION DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 74 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL cefla CBCT Panel ON 192.168.2.34 DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 75 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 76 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Varex DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 77 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 78 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL The installer will check whether a previous version of Pleora Driver is already present and will uninstall it if necessary. WARNING: this procedure may take a long time, do not interrupt the process. During the procedure the PC will restart and resume installation.
Page 79: Driver Installation Checks
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.5.5 DRIVER INSTALLATION CHECKS WARNING: perform the procedures (1 -> 4) for all the network cards that may be present on the PC, except for the one dedicated to the communication with sensors.
Page 80 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL If items (7 - 8) are missing, this indicates that the driver installation was not successful and it must be repeated (see chapter “Acquisition Server Plus software installation“). DEVICE INSTALLATION AND CALIBRATION...
Page 81: Irys Software Installation And Configuration
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.5.6 IRYS SOFTWARE INSTALLATION AND CONFIGURATION Software iRYS Software iRYS Software DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 82 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 83 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Confirm as requested by the installer to complete the installation. DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 84 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 85 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Enter Service Mode: METHOD 1 DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 86 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL METHOD 2 306090 336699 DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 87 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 12345 DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 88 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 89 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE CONNECTED DEVICE INSTALLATION AND CALIBRATION » Software installation...
Page 90 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Under normal operating conditions, the lower box may be grey: this does NOT indicate a connection problem since PAN/CEPH sensors are usually off. They are on only when they are being used.
Page 91: Calibration
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6 2D CALIBRATION REQUIRED INSTRUMENTS Calibration kit, including: • Support plate • Dentition phantom • Aluminium filter • Laser reference sheet • Allen wrench set • Screwdriver set • Pliers 4.6.1 TUBE HEAD WARM-UP PERFORM THIS OPERATION ONLY IF THE DEVICE REMAINS UNUSED FOR MORE...
Page 92 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 93 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Shot Parameters 1000 Time exposure (ms) Time (ms) Repetitions 1000 1000 1000 1000 1000 1000 5000 5000 Perform Daily Check (see paragraph 4.5.2) DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 94: Preliminary Actions
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.2 PRELIMINARY ACTIONS DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 95 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL cefla DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 96: Machine Configuration
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.3 MACHINE CONFIGURATION DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 97 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CHECK! CHECK! device with CHECK! ONLY: CEPH arm • RP162 • PHE GW-535 • ISTISAN 20/22 COMPLIANT See next page DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 98 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL RP 162 - PHE GW-535 - ISTISAN 20/22 - Devices produced from 25/01/2021 RP162 / DEVICES PRODUCED PHE GW-535 / ISTISAN 20/22 FROM 25/01/2021 COMPLIANT COMPLIANT DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 99: Pan Verify X-Ray Alignement
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.4 PAN VERIFY X-RAY ALIGNEMENT DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 100 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 101 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL If one of these situations occurs, it is necessary manually regulate collimator (See paragraph “Manual regulation of the collimator”). DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 102 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 103 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 104 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL MANUAL REGULATION OF THE COLLIMATOR (To be performed when strictly necessary) • Rotation regulation TARGET DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 105 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 106 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL • Horizontal alignment TARGET DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 107 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL • Vertical alignment DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 108 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL TARGET DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 109: Pan Verify Sensor Calibration
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.5 PAN VERIFY SENSOR CALIBRATION DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 110 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 111: Pan Verify Mechanical Centering
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.6 PAN VERIFY MECHANICAL CENTERING DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 112 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 113 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL TA R G E T RETRY DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 114 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL RETRY DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 115: Laser Calibration
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.7 LASER CALIBRATION DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 116 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL See section “Covers removal” DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 117 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL TA R G E T DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 118 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL If the laser turns off, any of the movement buttons of the column can be pressed to turn it on again. DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 119: Ceph Verify X-Ray Alignment
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.8 CEPH VERIFY X-RAY ALIGNMENT (ONLY IF CEPH ARM IS PRESENT) DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 120 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CHECK! REMOVE (See chapter “Covers removal”) DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 121 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL AP position DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 122 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 123 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 124 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL REASSEMBLE DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 125 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL If one of these situations occurs, it is necessary manually regulate collimator (See paragraph “Manual regulation of the secondary collimator”). DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 126 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 127 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 128: Manual Regulation Of The Secondary Collimator
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.8.1 MANUAL REGULATION OF THE SECONDARY COLLIMATOR (TO BE PERFORMED WHEN STRICTLY NECESSARY) • Rotation regulation TARGET DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 129 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL TARGET DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 130 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL • Horizontal alignment TARGET TARGET DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 131 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL • Vertical alignment TARGET TARGET DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 132 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 133: Ceph Verify Sensor Compliance
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.9 CEPH VERIFY SENSOR COMPLIANCE (ONLY IF CEPH ARM IS PRESENT) DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 134 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Before start procedure remove any object between XRay source and sensor DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 135 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 136: Ceph Verify Sensor Calibration
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.10 CEPH VERIFY SENSOR CALIBRATION (ONLY IF CEPH ARM IS PRESENT) DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 137 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 138: Ceph Verify Mechanical Centering
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 15’ 4.6.11 CEPH VERIFY MECHANICAL CENTERING (ONLY IF CEPH ARM IS PRESENT) DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 139 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 140 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL TA R G E T See section “CEPH arm installation” CHECK! DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 141 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL If the image is not horizontally centred, follow the instructions to manually adjust the settings 1.95 1.95 TARGET DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 142 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 1.75 1.75 TARGET DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 143: Headrest Calibration
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.12 HEADREST CALIBRATION (ONLY IF CEPH ARM IS PRESENT) DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 144 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 145 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 146 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 147: Nasion Calibration
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.13 NASION CALIBRATION (ONLY IF CEPH ARM IS PRESENT) DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 148 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 149: Backup Calibration Data To File
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.14 BACKUP CALIBRATION DATA TO FILE DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 150 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 151: Aligning The Ear Guide Rings
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.6.15 ALIGNING THE EAR GUIDE RINGS To check the correct alignment it is possible to take the image by using a CEPH mechanical positioning window or by launching the virtual keyboard and performing a CEPH LL examination.
Page 152 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 153 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL TARGET • Vertical alignment DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 154 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 2D calibration...
Page 155: Calibration
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.7 3D CALIBRATION Required instruments 3D calibration kit, including: • cylinder with two rows of eight metal spheres (code 97901494) • support plate All covers must be assembled. 4.7.1 BEAM LIMITER TEST DEVICE INSTALLATION AND CALIBRATION...
Page 156 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 157 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 158 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL TA R G E T Left Right Left Right Positioning DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 159 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 160 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 10,5 Left Right DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 161: Blank Acquisition And Daily Check
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL When passing from one FOV to the next, remove the tick from “Enable Manual Tuning” to allow the collimator to reposition itself according to the chosen FOV. 4.7.2 BLANK ACQUISITION AND DAILY CHECK IMPORTANT: If requested by the customer, select menu “Tools-->Force always use dead man button for...
Page 162 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Set up device for CBCT TEST 1 / 3D exam Test Status TEST 2 Detector initialization Running... Test n° 1 Test n° 2 Test n° 3 TEST 3 X-Ray source calibration Test n° 4 Test n°...
Page 163 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Test Status Test n° 1 Completed Test n° 2 Completed Test n° 3 Running... Test n° 4 Test n° 5 Test n° 6 Test Status Test n° 1 Completed Test n° 2 Completed Test n°...
Page 164 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL TARGET DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 165: Cylindrical Test Phantom Acquisition ("Mattarellum")
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.7.3 CYLINDRICAL TEST PHANTOM ACQUISITION (“MATTARELLUM”) DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 166 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 167 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 168 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL The software has a certain tolerance: even if the spheres are not inside the respective positions, the important thing is that the Mattarellum does not generate a software error and that it is therefore possible to proceed with calibration.
Page 169 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL TARGET DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 170 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 171 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CONTACT SERVICE 0.26 1.82 DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 172 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CLOSE TARGET DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 173: Calibration Backup
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.7.4 3D CALIBRATION BACKUP DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 174: Qa Phantom Scan (Optional)
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 4.7.5 QA PHANTOM SCAN (OPTIONAL) Check for evaluation of 3D images quality. [10x10] Best quality Never [10x10] Regular Never DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 175 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 176 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL TARGET DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 177 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Ctrl Ctrl DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 178 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 179 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 180 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 181 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 182 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CONTACT SERVICE 27.20 0.47 DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 183 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CLOSE TARGET DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 184 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL [10x10] Best quality Today [10x10] Regular Never DEVICE INSTALLATION AND CALIBRATION » 3D calibration...
Page 185: Control Panels And Display Symbols
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 5. CONTROL PANELS AND DISPLAY SYMBOLS 5.1 CONSOLE ONBOARD THE MACHINE Canine cusp or condyle Canine cusp or condyle VERTICAL LASER POSITIONING (-) VERTICAL LASER POSITIONING (+) to frame the patient to frame the patient...
Page 186: Pushbutton Panel On Ceph Arm
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 5.2 PUSHBUTTON PANEL ON CEPH ARM COLUMN UPWARD MOVEMENT STANDBY COLUMN DOWNWARD MOVEMENT X-RAY READY INTERLOCK CONTROL PANELS AND DISPLAY SYMBOLS...
Page 187: Service Menu
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 6. SERVICE MENU Method 1 SERVICE MENU...
Page 188 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL Method 2 306090 SERVICE MENU...
Page 189: Circuit Boards
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7. CIRCUIT BOARDS IMPORTANT: Before carrying out any maintenance work on electronic boards or wiring it is necessary to switch off the machine and wait until all the LEDs on the boards go out. Do not disconnect/reconnect wires or leads with the machine on. 7.1 UNIT BLOCK DIAGRAM CIRCUIT BOARDS...
Page 190: Logic Board (97661808)
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.2 LOGIC BOARD (97661808) LOGIC board CIRCUIT BOARDS...
Page 191 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CIRCUIT BOARDS...
Page 192: Connector List
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.2.1 CONNECTOR LIST CONNECTOR DESCRIPTION Power supply input from POWER board Collimator motor Power supply and sync signal PAN/3D sensor CAN towards POWER connection (only if BRUSHDC is present) Collimator photocell Y axis motor...
Page 193 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DL15 Not used HW-Rays emission signal from POWER board, normally off (On DL16 Yellow XRAY during ray emission) DL18 Yellow LAN activity LED. Normally flashing. DL19 Green LINK LAN connection estabilished. Normally on. DL22 Green 3.3V 3.3V CPU tension present, normally on...
Page 194: Power Board (97662307)
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.3 POWER BOARD (97662307) POWER board CIRCUIT BOARDS...
Page 195 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CIRCUIT BOARDS...
Page 196: Connector List
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.3.1 CONNECTOR LIST CONNECTOR DESCRIPTION Column motor power supply Column motor thermal sensor Monoblock High voltage Power switch live wire Power switch neutral wire Gigabit switch power supply Monobloc feedback X-ray button (1/2 = Button, 3 = Ready, 4 = X-Ray)
Page 197 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL DL17 Green 3.3V 3.3V CPU tension present, normally on DL18 Green 24V tension present, normally on DL19 Green SYNC Flashing CBCT during frame acquisition Inverter enabled signal from LOGIC board, normally on. Off during DL20 Green standby or in error condition.
Page 198: Brush Dc (97662306)
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.4 BRUSH DC (97662306) BRUSH DC CIRCUIT BOARDS...
Page 199 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CIRCUIT BOARDS...
Page 200: Connector List
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.4.1 CONNECTOR LIST CONNECTOR DESCRIPTION 24V/48V power supply from LOGIC Revolver motor K5/K6 Revolver limit switch CAN towards POWER CAN towards LOGIC 7.4.2 DIAGNOSTIC LEDS NAME COLOUR SCREEN PRINTING DESCRIPTION DL41 ON in error condition...
Page 201: Ceph Keyboard (97661913)
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.5 CEPH KEYBOARD (97661913) CEPH Keyboard CIRCUIT BOARDS...
Page 202: Connector List
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.5.1 CONNECTOR LIST CONNECTOR DESCRIPTION K1 / K11 LOGIC board connection Ear guides potentiometer Nasion potentiometer Cephalostat drum sensors CIRCUIT BOARDS...
Page 203: Pan Sensor Interface (97661912)
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.6 PAN SENSOR INTERFACE (97661912) 2D ONLY PAN Sensor interface 7.6.1 CONNECTOR LIST CONNECTOR DESCRIPTION Synchronization signals from LOGIC Connector for switch GBIT CIRCUIT BOARDS...
Page 204: Ceph Sensor Interface (97661912)
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.7 CEPH SENSOR INTERFACE (97661912) CEPH Sensor interface 7.7.1 CONNECTOR LIST CONNECTOR DESCRIPTION Synchronization signals from LOGIC Connector for switch GBIT CIRCUIT BOARDS...
Page 205: Panel Interface (97661579)
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.8 3D PANEL INTERFACE (97661579) 3D ONLY 3D panel interface CIRCUIT BOARDS...
Page 206: Connector List
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL LOGIC K3 3D PANEL 3D PANEL 7.8.1 CONNECTOR LIST CONNECTOR DESCRIPTION Synchronization signals from LOGIC Power supply towards panel Synchronization signals towards panel CIRCUIT BOARDS...
Page 207: Keyboard (97661484)
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 7.9 KEYBOARD (97661484) Keyboard 7.9.1 CONNECTOR LIST CONNECTOR DESCRIPTION LOGIC board connection CIRCUIT BOARDS...
Page 208 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CIRCUIT BOARDS...
Page 209: Connectivity
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 8. CONNECTIVITY 8.1 2D SENSORS / 3D PANEL IP ADDRESS AMENDMENT CONTACT SERVICE 8.2 FIRMWARE UPGRADE 8.2.1 DEVICE FIRMWARE UPGRADE UPDATE UPDATE CONNECTIVITY...
Page 210: Sensors Firmware Upgrade
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 8.2.2 SENSORS FIRMWARE UPGRADE cefla CONNECTIVITY...
Page 211 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CONNECTIVITY...
Page 212 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CONNECTIVITY...
Page 213: Remote Support
X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL 8.3 REMOTE SUPPORT SERVICE CONNECTIVITY...
Page 214 X5 3D CEPH/CEPH Ready - TECHNICAL MANUAL CONNECTIVITY...

This manual is also suitable for:

Hyperion x5 3d ceph ready

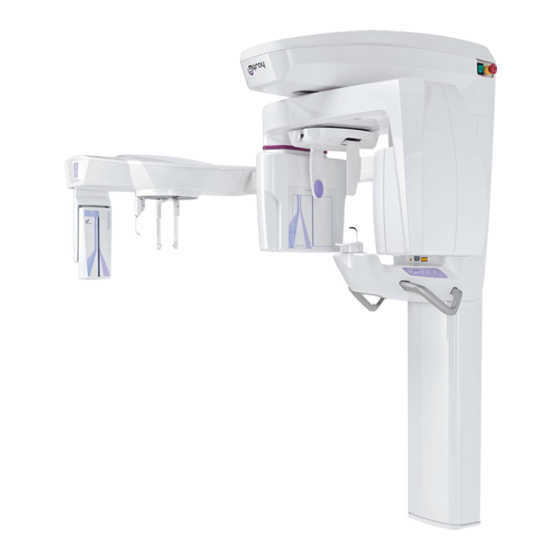

Myray hyperion X5 3D CEPH Technical Manual

Quick Links

Related Manuals for Myray hyperion X5 3D CEPH

Summary of Contents for Myray hyperion X5 3D CEPH

This manual is also suitable for:

Table of Contents
