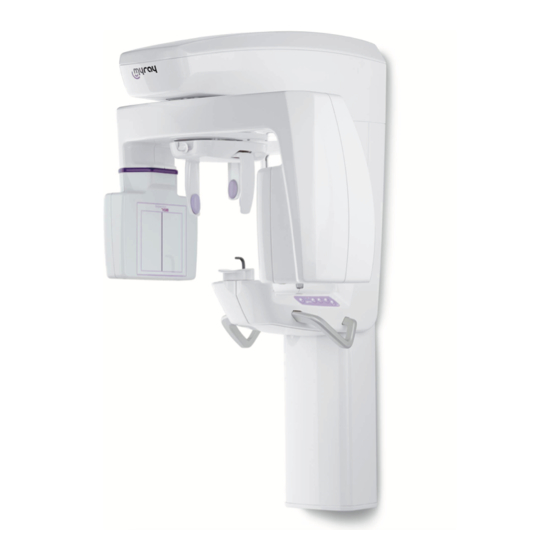

Summary of Contents for Myray hyperion X5 2D

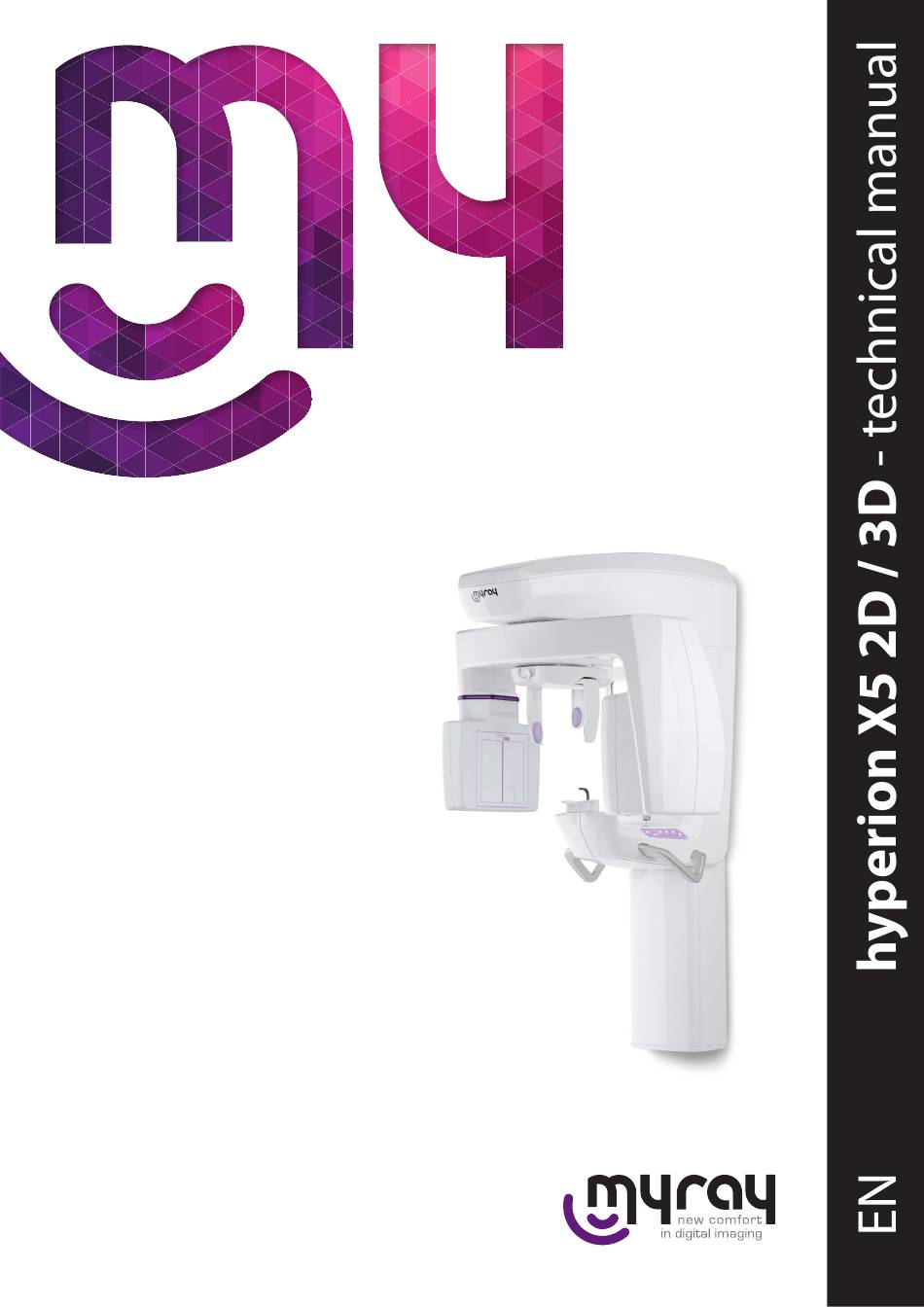

  • Page 1 Cod. 97071218 Rev. 01 01.2017 www.my-ray.com...

  • Page 3: Table Of Contents

    X5 2D/3D - TECHNICAL MANUAL CONTENTS 1. DEVICE INSTALLATION ................................3 1.1 REQUIRED INSTRUMENTS ...............................3 1.2 INTERNAL CONNECTIONS ...............................3 1.3 EXTERNAL CONNECTIONS ...............................4 2. COVER, HANDLES, MIRROR REMOVAL ..........................5 2.1 MONOBLOC COVER ................................5 2.2 PANEL COVER ..................................5 2.3 MIRROR ....................................6 2.4 HANDLES .....................................6...
  • Page 4 X5 2D/3D - TECHNICAL MANUAL CONTENTS...

  • Page 5: Device Installation

    X5 2D/3D - TECHNICAL MANUAL 1. DEVICE INSTALLATION REQUIRED INSTRUMENTS All the device installation procedures are described in the videos uploaded on the extranet. The following instruments are necessary to perform all the procedure properly: Allen wrench set Screwdrivers...

  • Page 6: External Connections

    X5 2D/3D - TECHNICAL MANUAL EXTERNAL CONNECTIONS K17 - Main supply K12 - External emergency stop (Optional, short-circuit cable loop installed as factory configuration) K11 - Door interlock (Optional, short-circuit cable loop installed as factory configuration) K10 - X-ray button, use any 2-wire switch or the optional button 96609090...

  • Page 7: Cover, Handles, Mirror Removal

    X5 2D/3D - TECHNICAL MANUAL 2. COVER, HANDLES, MIRROR REMOVAL MONOBLOC COVER Remove the highlighted screws and pull the (interlo- cking) cover. PANEL COVER Remove the highlighted screws and pull the (interlo- cking) rear cover. Loosen the four highlighted screws to remove the front cover.

  • Page 8: Mirror

    X5 2D/3D - TECHNICAL MANUAL MIRROR Slightly press the mirror against the column, move the mirror upwards and turn it outwards to remove it. HANDLES Remove the accessory drawer and loosen the hi- ghlighted screws to remove the handles.

  • Page 9: Mirror Frame Cover

    X5 2D/3D - TECHNICAL MANUAL MIRROR FRAME COVER Loosen the highlighted screws and remove the cover. SIDE COVERS Loosen the highlighted screws and remove the (interlo- cking) side covers. ARCH COVER NOTE Before removing the arch cover, it is necessary to remove the sensor cover.

  • Page 10: Pc Configuration

    X5 2D/3D - TECHNICAL MANUAL 3. PC CONFIGURATION SYSTEM REQUIREMENTS The device works with 2 Ethernet connections, one for generic communication with the PC (that can be connected to a local area network and works in DHPC) and another one, which must absolutely be point-to-point, dedicated to image acquisition from the 3D panel, therefore connecting the device to the INTEL PRO 1000 network card of the computer.

  • Page 11: Operating System Settings

    X5 2D/3D - TECHNICAL MANUAL OPERATING SYSTEM SETTINGS Open the Control Panel, select “User Account” and then “Change User Account Control Settings”. Select the lowest notification level “Never Notify”. RESTART THE PC. PC CONFIGURATION...
  • Page 12 X5 2D/3D - TECHNICAL MANUAL From the Control Panel select “Power Options”. On the “Balanced” profile select “Change plan settings”. Set “Turn OFF display” and “Put the computer to sleep” to “Never”. Select “Change advanced power settings”. Set “Hard disk → Turn off hard disk after → 0”.

  • Page 13: Disabling Windows Firewall

    X5 2D/3D - TECHNICAL MANUAL Disable also the screensaver, if any. To do this, right click with the mouse on any free area of the desktop (with no icons or windows), and select “Personalize” from the context menu. Press on the “Screen Saver” icon in the bottom right corner, and select “None”...

  • Page 14: Pc-Device Connection

    X5 2D/3D - TECHNICAL MANUAL Scroll down the service list, right click on the “Windows firewall” service and double click. Go to the “Startup type” drop-down menu and select “Disabled”. Then press the “Stop” key to stop the service currently being executed.
  • Page 15 X5 2D/3D - TECHNICAL MANUAL To set a static IP address for a network card, click on the “Start” button, type “ncpa.cpl” in the search field and press enter. The connection management window will open. If a fixed IP address must be set for the network...
  • Page 16 X5 2D/3D - TECHNICAL MANUAL An IP address compatible with the one of the device must be specified. In the “IP address” field, just indicate an address of the 192.168.1.XXX type, where XXX is any number between 1 and 254, except for the device ip address (160 in case of default address).

  • Page 17: Cbct Panel Installation

    X5 2D/3D - TECHNICAL MANUAL CBCT PANEL INSTALLATION WARNING: each panel is equipped with a specific installation CD, containing data that are not interchangeable with other units. Carefully keep the CD and make sure that at least one backup copy is available.

  • Page 18: Pleora Driver Installation And Intel Pro 1000 Network Card Configuration

    X5 2D/3D - TECHNICAL MANUAL PLEORA DRIVER INSTALLATION AND INTEL PRO 1000 NETWORK CARD CONFIGURATION IMPORTANT: disconnect the device from power supply, wait for 10-15 seconds and reconnect to power supply. In iRYS installation folder, open “Varian” folder and run the “Install.exe”...
  • Page 19 X5 2D/3D - TECHNICAL MANUAL When the installation is over, the window on the side will appear: Click on “Close”. Go to C:\Program Files\Common Files\Pleora\eBUS SDK path and run “EBusDriverInstallationTool.exe” file, the screen with the list of network cards available in the...
  • Page 20 X5 2D/3D - TECHNICAL MANUAL Right-click on “Computer”, select “Properties” and select “Device Manager” in the left column. Expand the “Network adapters” branch and right-click on “Intel PRO/1000 GT Desktop Adapters”, select “Properties”. Select “Advanced” and choose the “Jumbo Packet”...

  • Page 21: Acquisition Server Software Installation

    X5 2D/3D - TECHNICAL MANUAL In the “Advanced” section, search for “Receive Buffers” and set the value to 2048 (using the arrows on the side) WARNING: maybe the “Receive Buffers” item is not displayed directly in this window. If it is not displayed, search for the “Performance Options”...
  • Page 22 X5 2D/3D - TECHNICAL MANUAL Select “I accept the agreement”, then click “Next”. Select the installation for 2D and 3D devices and click on “Next”. Click on “Install”. PC CONFIGURATION...

  • Page 23: Intel Pro 1000 Driver Update

    X5 2D/3D - TECHNICAL MANUAL Installed software will be checked, any missing system component will be installed at this stage: Restart the PC. INTEL PRO 1000 DRIVER UPDATE The Intel PRO 1000 ethernet card is automatically recognized from the Operating System.
  • Page 24 X5 2D/3D - TECHNICAL MANUAL Choose “I accept” and click “Next”. Press “Next” and proceed with the default options. Click on “Install”. PC CONFIGURATION...

  • Page 25: Acquisition Server Configuration

    X5 2D/3D - TECHNICAL MANUAL Wait. Click on “Finish”. Reboot the PC. 3.10 ACQUISITION SERVER CONFIGURATION Once the PC IP addresses have been properly set, the Acquisition Server can be configured. Clicking on the Acquisition Server icon, its main window will be displayed in full-screen and “User”...
  • Page 26 X5 2D/3D - TECHNICAL MANUAL The 2 red areas indicate the connection status with the device (the first one from the top, smaller) and the sensor status with the messages concerning machine errors (the second one, bigger). Clicking on the “Settings” icon at top right, the connection and software option panel will open.
  • Page 27 X5 2D/3D - TECHNICAL MANUAL Go back to “Settings”, select “Find Device”. The device will be searched automatically; select it and confirm. Select “Connect Device” and tick off the “Auto Connect Device” option. Click on “Close”. After a few seconds, the software will connect to the device.
  • Page 28 X5 2D/3D - TECHNICAL MANUAL Now set the connection with the 3D panel. Click again on “Settings” and on “Find Sensor”. The device 3D panel will be searched automatically. Select it and confirm. Confirm by “Close”. The acquisition server status is now completely green.

  • Page 29: Irys Software Installation And Configuration

    X5 2D/3D - TECHNICAL MANUAL 3.11 iRYS SOFTWARE INSTALLATION AND CONFIGURATION The software used to receive images from the 3D device is iRYS (version 6.5 or higher), installed in its MAIN WORKSTATION version. iRYS must be installed on the Acquisition Server PC.
  • Page 30 X5 2D/3D - TECHNICAL MANUAL Wait and click on “Install”. At the end, restart the computer. Upon first iRYS launch, the display mode has to be selected (“Oral and Maxillofacial Surgery” is the standard mode) PC CONFIGURATION...
  • Page 31 X5 2D/3D - TECHNICAL MANUAL In the following window, click on “I agree” Access service mode pressing “CTRL+ALT+SHIFT+END” simultaneously (the “Service Level” message under “iRYS” in the main screen confirms proper execution). Press “ALT+F10” and enter the “336699” password: Click on “Browse”...
  • Page 32 X5 2D/3D - TECHNICAL MANUAL In “Service Mode”, press ALT+F10 and enter the “12345” password. The window displayed in the figure will open. Click on “Find”: Select the device and click on “Add selected”. Make sure that the settings are correct as displayed in the figure (tick “MainWS”) and click on “Save”...
  • Page 33 X5 2D/3D - TECHNICAL MANUAL After saving the settings, the following iRYS display will appear. Click on the button in the top right corner and select the virtual keyboard from the menu: Upon first launch, the virtual keyboard will display the following message.

  • Page 34: Calibration See Corresponding "3D Calibration Manual - Opt Entry Level" Code 97071221

    X5 2D/3D - TECHNICAL MANUAL To connect the virtual keyboard to the device, authorise it; go to the “Acquisition Server” software and select “Clients Allowed”. The list of all the clients that have attempted to connect to the virtual keyboard will be displayed. Tick off the necessary one(s) and close.

  • Page 35: Control Boards Description

    X5 2D/3D - TECHNICAL MANUAL 5. CONTROL BOARDS DESCRIPTION UNIT BLOCK DIAGRAM CONTROL BOARDS DESCRIPTION...

  • Page 36: Power Board 97661407

    X5 2D/3D - TECHNICAL MANUAL POWER BOARD 97661407 WARNING: The K17 input terminal board is always powered (live), as marked on the info plate below: Before handling always cut the power via the external circuit breaker. Once the power to the device has been cut wait at least 60 seconds before handling the boards so that the condensers have time to discharge.
  • Page 37 X5 2D/3D - TECHNICAL MANUAL CONTROL BOARDS DESCRIPTION...

  • Page 38: Connectors List

    X5 2D/3D - TECHNICAL MANUAL 5.2.1 CONNECTORS LIST CONNECTOR DESCRIPTION Mains power supply Power switch live wire Power switch neutral wire External emergency button - optional Door interlock - optional X-ray button External signal lamps – Optional- Wires 1,2 ready - Wires 3,4 x-ray emission Power supply for “logic”...
  • Page 39 X5 2D/3D - TECHNICAL MANUAL NAME ON LED ID COLOR DESCRIPTION BOARD On when mains power supply is on. Off during stand by or in case of issues YELLOW with power amplifier on the board. On when 390V are present on power amplifier. Off when in stand-by or in YELLOW case of issues with the power amplifier.
  • Page 40 X5 2D/3D - TECHNICAL MANUAL PIN 4: signal “X-ray ON” CONTROL BOARDS DESCRIPTION...
  • Page 41 X5 2D/3D - TECHNICAL MANUAL CONTROL BOARDS DESCRIPTION...

  • Page 42: Logic Board 97661408

    X5 2D/3D - TECHNICAL MANUAL PIN 5-6: not used LOGIC BOARD 97661408 5.3.1 CONNECTORS LIST CONNECTOR DESCRIPTION Ethernet connection to PC Powe supply and sync signal for sensor interface card. Chinrest microswitch Power supply input from powe board 24V power supply toward engraved logo light...
  • Page 43 X5 2D/3D - TECHNICAL MANUAL LED ID COLOR NAME ON BOARD DESCRIPTION On if R motor is active. If flashing the motor is in error (disconnected, DL10 GREEN MOTR short-circuit, overheating, broken driver) DL11 GREEN PROG FPGA programmed, normally on...

  • Page 44: Sensor Interface Board 97661485

    X5 2D/3D - TECHNICAL MANUAL SENSOR INTERFACE BOARD 97661485 CONTROL BOARDS DESCRIPTION...
  • Page 45 X5 2D/3D - TECHNICAL MANUAL CONTROL BOARDS DESCRIPTION...

  • Page 46: Connectors List

    X5 2D/3D - TECHNICAL MANUAL 5.4.1 CONNECTORS LIST CONNECTOR DESCRIPTION Sensor synchronisation / supply from LOGIC 24V DC Panel supply Sensor synchronisation 5.4.2 LEDS LIST LED ID DESCRIPTION DL1 (VIN) 48V from LOGIC board DL2 (VCC) Analog 5V towards sensor...

  • Page 47: Monobloc Area

    X5 2D/3D - TECHNICAL MANUAL MONOBLOC AREA CONTROL BOARDS DESCRIPTION...

  • Page 48: Keyboard Board 97661484

    X5 2D/3D - TECHNICAL MANUAL KEYBOARD BOARD 97661484 5.6.1 CONNECTORS LIST CONNECTOR DESCRIPTION Keyboard signals from LOGIC LOGO BOARD 97661539 5.7.1 CONNECTORS LIST CONNECTOR DESCRIPTION 24V power supply fron Logic board CONTROL BOARDS DESCRIPTION...

  • Page 49: Troubleshooting

    X5 2D/3D - TECHNICAL MANUAL 6. TROUBLESHOOTING CRANIOSTAT ADJUSTMENT Should the craniostat not be centred with respect to the sagittal laser, perform a mechanical adjustment: Proceed as follows: Check that craniostat is centred Close the 2 side tabs Remove lower cover. There are no screws, just pull the cover downwards.

  • Page 50: Installation Check List (For Usa Only)

    X5 2D/3D - TECHNICAL MANUAL 7. INSTALLATION CHECK LIST (FOR USA ONLY) It is the responsibility of the Assemblers or Installers to report the installation to the manufacturer within 15 days of the date of installation. Upon completion of an installation, please...
