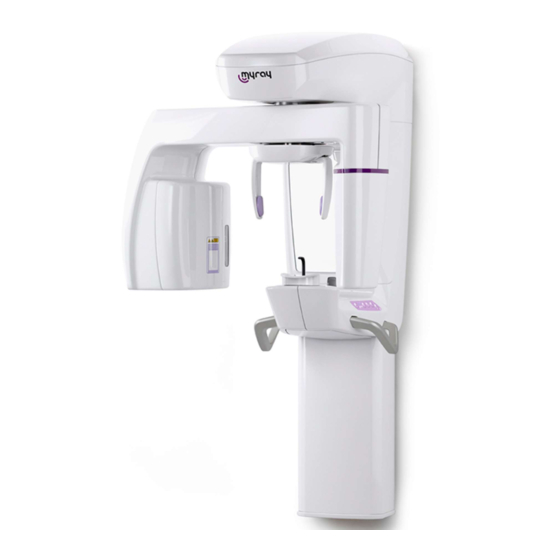

Summary of Contents for Myray hyperion X5

  • Page 1 Cod. 97070183 Rev. 00 05/2015 www.my-ray.com...
  • Page 3 TECHNICAL MANUAL hyperion X5 Code Date 97071183 15.05...

  • Page 5: Table Of Contents

    TECHNICAL MANUAL - hyperion X5 PC CONFIGURATION ........................... 5     1.1. SYSTEM REQUIREMENTS ........................5     1.2. SETTING UP THE DEVICE ........................6     1.2.1. PRELIMINARY OPERATIONS ......................6     1.2.2. OPERATING SYSTEM SETTINGS ....................6  ...
  • Page 6  ...

  • Page 7: Pc Configuration

    1. PC CONFIGURATION 1.1. SYSTEM REQUIREMENTS hyperion X5 needs two ethernet connections, one for generic communication purposes (this supports DHCP and can be set up through the local network) and a second dedicate connection, which must set up as direct point-to-point between the unit and the INTEL PRO 1000 network card on the PC.

  • Page 8: Setting Up The Device

    PC and install the software correctly. The 2 network adapters on the acquisistion server are needed for communication with the hyperion X5. One of these network adapters is used for a direct connection with the image detector on the X5.
  • Page 9 TECHNICAL MANUAL - hyperion X5 Select the lowest notification level “Never Notify”. RESTART THE PC. From the Control Panel select “Power Options”. PC CONFIGURATION...
  • Page 10 TECHNICAL MANUAL - hyperion X5 On the “Balanced”profile select “Change plan settings”. Set“Turn OFF display”and“Put the computer to sleep”to“Never”. Select “Change advanced power settings”. Set“Hard disk Turn OFF hard disk after  0”. Also deactivate any screensaver. To do this right click on the mouse on any icon-free desktop or window area and select “Personalize”...

  • Page 11: Disabling Windows Firewall

    TECHNICAL MANUAL - hyperion X5 Also deactivate any screensaver. To do this right click on the mouse on any icon-free desktop or window area and select “Personalize” from the menu. 1.2.3. DISABLING WINDOWS FIREWALL From the Control Panel select “Administrative Tools”...

  • Page 12: Intel Pro 1000" Network Card Installation

    TECHNICAL MANUAL - hyperion X5 Scroll down the service list, right click on the “Windows firewall” service and double click. Go to the “Startup type” drop-down menu and select “Disabled”. Then press the “Stop” key to stop the service currently being executed.
  • Page 13 TECHNICAL MANUAL - hyperion X5 Expand the “Newtork Adapter” group, right click on the “Intel pro 1000”, and select “Properties”. Select the “Advanced” tab, highlight the “Jumbo Packet”, and set it to “9014 byte PC CONFIGURATION...

  • Page 14: Acquisition Server" Software Installation

    TECHNICAL MANUAL - hyperion X5 From the “Advanced” tab set the “Receive Buffers” parameter to 2048 WARNING: the “Receive Buffers” parameter migh not show on this window. If not visible, please search for the “Performance options” parameter, click on “Properties” and set the “Receive bufffers” value from there.
  • Page 15 TECHNICAL MANUAL - hyperion X5 Select “I accept” , then click “Next” Click on “Install” Wait PC CONFIGURATION...
  • Page 16 TECHNICAL MANUAL - hyperion X5 Installed software will be checked, any missing system component will be installed at this stage. The Pleora driver for the Intel Pro 1000 network adapter will be installed automatically, click “Next” Accept and click “Next”...
  • Page 17 TECHNICAL MANUAL - hyperion X5 Click on “Install” Wait for the driver installation to finish. If the following window is displayed, select “Always Trust” and click “Install” PC CONFIGURATION...
  • Page 18 TECHNICAL MANUAL - hyperion X5 Click “Finish” at the end of the installation. Restart the PC The “Acquisition server” software will start up automatically and will be accessible from the system tray. PC CONFIGURATION...

  • Page 19: Connection And Configuration

    (DHCP) and the connection is managed automatically. It could be necessary to set up a static IP address for the network adapter used for the PC to hyperion X5 system communication. If this network adapter is directly connected to the unit, the IP address for the PC should be set to one in the same subnet as the hyperion X5's default (e.g.192.168.1.150)
  • Page 20 If the unit is connected to a LAN with DHCPC (as in the following diagram) then the noetwork adapter should be set to “Obtain IP address automatically”. The DHCP server will assign correct IP addresses to both the hyperion X5 and the acquisistion server.
  • Page 21 TECHNICAL MANUAL - hyperion X5 Once the IP addresses have been configured correctly you can start setting up the Acquisistion Server software. Click on the Acquisition Server icon in the system tray, the main window will be magnified in “User”...
  • Page 22 TECHNICAL MANUAL - hyperion X5 On program restard you'll be prompted to select the application mode. Select “Service mode”. enter the password “cefla”. Restart the “Acquisition Server” software, now in “Service mode”. Click on “Settings” and select “Find Device”. PC CONFIGURATION...
  • Page 23 TECHNICAL MANUAL - hyperion X5 hyperion X5 X5 will be found, select the line and continue. Select “Connect Device” and activate the “Auto connect device” option. Click on “Close”. In a few seconds the connection to the hyperion X5 will be estabilished.

  • Page 24: Irys Installation And Configuration

    1.3.2. IRYS INSTALLATION AND CONFIGURATION The imaging software used with Hyperion X5 is “iRys” (version 5.5 or later), installed in “Station” version. It is not strictly necessary to install iRys on the Acquisistion Server PC, iRys can be installed on any PC in the network that could communicate with the Acquisition Server PC.
  • Page 25 TECHNICAL MANUAL - hyperion X5 Load the Irys installation CD and follow the instructions on the screen. Select “IRYS Station” installation: Continue by confirming the installation path: PC CONFIGURATION...
  • Page 26 TECHNICAL MANUAL - hyperion X5 Click “Install”: Click ok to confirm. To connect the hyperion X5 to iRYS, start iRYS and press “CTRL + ALT + SHIFT + FINE” simultaneously to access the service level of the program, confirmed by the message in the bottom right-hand corner: Now press “ALT + F10”...
  • Page 27 Configure the remote connection as shown in the image here below. Click “Save” and then “Exit”. The .hyperion X5 connection status icon will appear in the upper right corner of iRys' interface. Click on the icon and select “Virtual keyboard”:...
  • Page 28 TECHNICAL MANUAL - hyperion X5 On first startup the console will prompt with this message: In order to authorize the virtual keyboard to connect to the unit, you need to enter the “Acquisition server” software and select “Clients allowed”: The clients list will appear, select the appropriate one and close the window.
  • Page 29 TECHNICAL MANUAL - hyperion X5 Now the .hyperion X5 virtual keyboard will connect correctly: PC CONFIGURATION...

  • Page 30: Calibration

    TECHNICAL MANUAL - hyperion X5 2. CALIBRATION 2.1. PRELIMINARY OPERATIONS Open the acquisition server software, click on “Settings”, then on “Change Mode” and confirm when prompted. Select “Service mode” and enter the password “cefla”. CALIBRATION...

  • Page 31: Device Configuration

    TECHNICAL MANUAL - hyperion X5 Open the Acquisistion server software and click on “Calibration”. 2.2. DEVICE CONFIGURATION                                              ...

  • Page 32: Xray Alignment

    TECHNICAL MANUAL - hyperion X5 Enter the serial number of the column in the textbox and presso “OK” 2.3. XRAY ALIGNMENT A correct alignment should result in an image like the example shown on the left side of the window (dark rectangle with white background);...
  • Page 33 TECHNICAL MANUAL - hyperion X5 Make sure to remove every object from the scan area (bite support, chin support, aluminum filter, calibration phantom) Press the exposure button when required, hold until asked to release. CALIBRATION...
  • Page 34 TECHNICAL MANUAL - hyperion X5 If the resulting image is not centered (like the one in the following picture), the collimator needs to be manually moved. Remove the screws shown below to in order to remove the front cover of the generator.
  • Page 35 TECHNICAL MANUAL - hyperion X5 Select the “not centered” option in the calibration tool, then presso “OK” to start a new acquisition in order to verify the change made. Repeat the procedure until the x-ray beam is correctly aligned. Centering the collimator vertically Slightly loosen the “A”...

  • Page 36: Verifying The Sensor Calibration

    TECHNICAL MANUAL - hyperion X5 2.4. VERIFYING THE SENSOR CALIBRATION Click on “Start procedure”, make sure to have positioned the aluminum filter on the front cover of the generator and to have removed every object from the scan area (bite support, chin support,...

  • Page 37: Verifying The Mechanical Centering

    TECHNICAL MANUAL - hyperion X5 2.5. VERIFYING THE MECHANICAL CENTERING Remove the bite support, chin support and aluminum filter. Mount the calibration phantom inserting the supporting pins into the holes previously used for the chin support. CALIBRATION...
  • Page 38 TECHNICAL MANUAL - hyperion X5 Click on “Acquire”. Press the exposure button when required, hold until asked to release. The calibration software will download a complete panoramic image and will show it on screen. You'll need to verify that the focal area is centered. Use the dots as reference.

  • Page 39: Test Laser

    TECHNICAL MANUAL - hyperion X5 2.6. TEST LASER Mount the laser guide tool on top of the calibration phantom (as shown below) and press “Start test”. CALIBRATION...
  • Page 40 TECHNICAL MANUAL - hyperion X5 The unit will rotate into position for the laser test. Check the alignment of the beams (sagittal, canine, and frankfurt plane) with the reference marks on the test object. CALIBRATION...
  • Page 41 TECHNICAL MANUAL - hyperion X5 If one or more of the laser beams is not aligned, use pliers to loosen the spring around the projector support and align the beam manually. The frankfurt plane and canine lasers are under the generator cover.

  • Page 42: Calibration Data Backup

    TECHNICAL MANUAL - hyperion X5 2.7. CALIBRATION DATA BACKUP Click on “Export”, select the destination folder and confirm. CALIBRATION...

  • Page 43: Control Boards Description

    TECHNICAL MANUAL - hyperion X5 3. CONTROL BOARDS DESCRIPTION 3.1. UNIT BLOCK DIAGRAM CONTROL BOARDS DESCRIPTION...

  • Page 44: Power Board 97661407

    TECHNICAL MANUAL - hyperion X5 3.2. POWER BOARD 97661407 CONTROL BOARDS DESCRIPTION...
  • Page 45 TECHNICAL MANUAL - hyperion X5 CONTROL BOARDS DESCRIPTION...

  • Page 46: Connectors List

    TECHNICAL MANUAL - hyperion X5 3.2.1. CONNECTORS LIST CONNECTOR DESCRIPTION Mains power supply Power switch live wire Power switch neutral wire External emergency button - optional Door interlock - optional X-ray button External signal lamps – Optional- Wires 1,2 ready - Wires 3,4 x-ray emission Power supply for “logic”...
  • Page 47 TECHNICAL MANUAL - hyperion X5 LED ID COLOR NAME ON BOARD DESCRIPTION On when 390V are present on power amplifier. YELLOW Off when in stand-by or in case of issues with the power amplifier. DL10 GREEN -5VA Analog -5.3V present, normally on...

  • Page 48: Logic Board 97661408

    TECHNICAL MANUAL - hyperion X5 3.3. LOGIC BOARD 97661408 CONTROL BOARDS DESCRIPTION...
  • Page 49 TECHNICAL MANUAL - hyperion X5 CONTROL BOARDS DESCRIPTION...

  • Page 50: Connectors List

    TECHNICAL MANUAL - hyperion X5 3.3.1. CONNECTORS LIST CONNECTOR DESCRIPTION Ethernet connection to PC Powe supply and sync signal for sensor interface card. Not used Power supply input from powe board 24V power supply toward engraved logo light K26 K23...
  • Page 51 TECHNICAL MANUAL - hyperion X5 LED ID COLOR NAME ON BOARD DESCRIPTION DL15 GREEN Acknowledged signal from LOGIC board, always on. DL16 GREEN XRAY X-ray emission signal from Power board. Normally off, on during emission. DL17 GREEN SD_ON Not used.

  • Page 52: Sensor Interface Board 97661485

    TECHNICAL MANUAL - hyperion X5 3.4. SENSOR INTERFACE BOARD 97661485 CONTROL BOARDS DESCRIPTION...
  • Page 53 TECHNICAL MANUAL - hyperion X5 CONTROL BOARDS DESCRIPTION...

  • Page 54: Connectors List

    TECHNICAL MANUAL - hyperion X5 3.4.1. CONNECTORS LIST CONNECTOR DESCRIPTION Sync signal and power supply for sensor, from LOGIC board. Sensor power supply, 2x 5V DC Sensor synchronization 3.4.2. LEDS LIST LED ID DESCRIPTION DL1 (VIN) 48V from LOGIC board...
