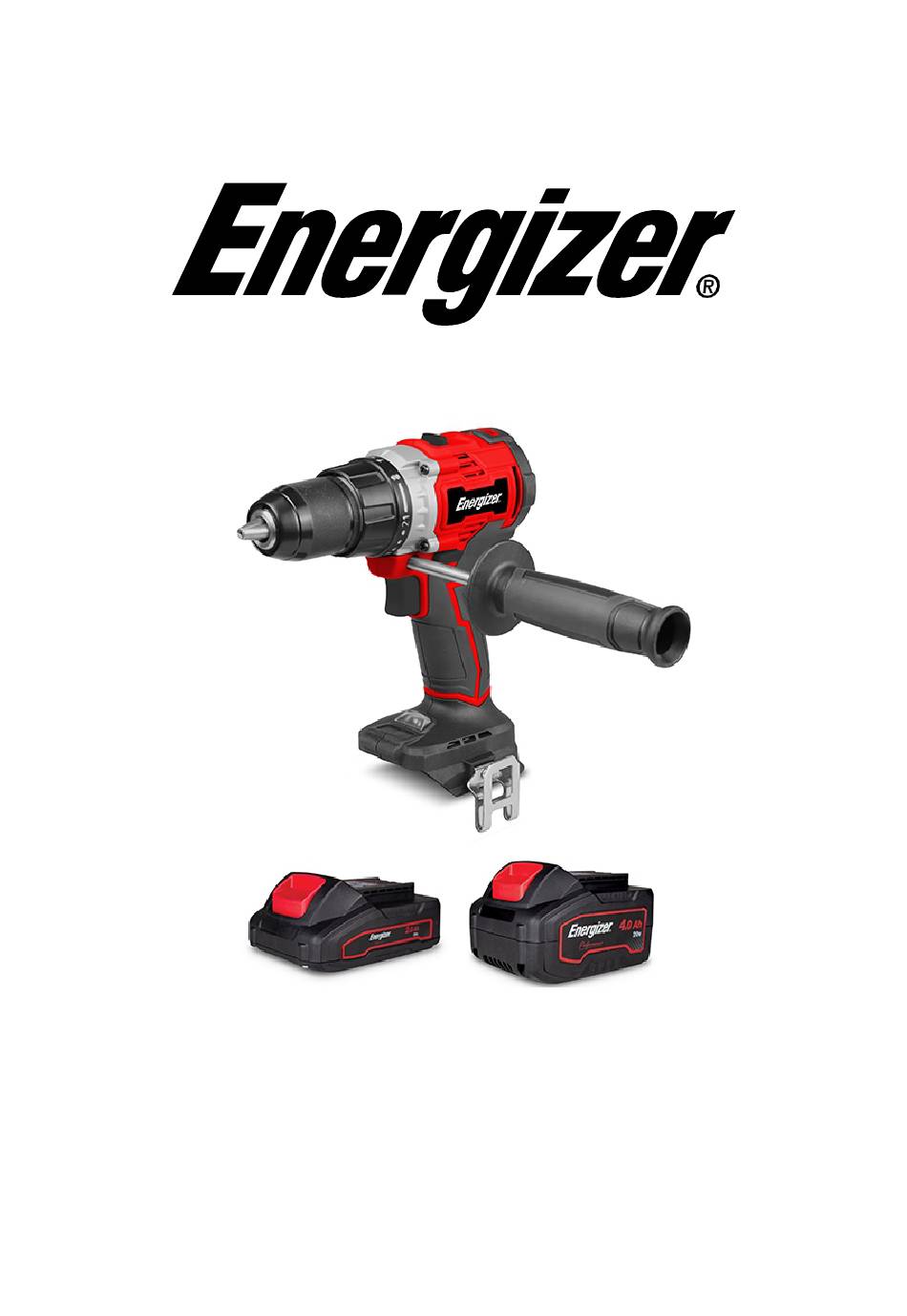

- Page 1 ORIGINAL INSTRUCTIONS >EN CORDLESS IMPACT DRILL EZPPB20V2B USER GUIDE CAUTION: Read this manual before using this machine!
- Page 3 Let’s get started. You’re excited to power up, so we’ll keep this brief!
-
Page 4: Table Of Contents
CONTENTS 1. INTENDED USE 2. SAFETY INSTRUCTIONS 3. YOUR PRODUCT 4. OPERATING AND DISPLAY ELEMENTS 5. OPERATION 6. CLEANING AND MAINTENANCE 7. TECHNICAL DETAILS 8. DISPOSAL 9. DECLARATION OF CONFORMITY 10. WARRANTY 11. PRODUCT FAILURE 12. WARRANTY EXCLUSIONS... -
Page 5: Intended Use
1. INTENDED USE The power tool is intended for driving and drilling through wood, metal, plastics and masonry. Not suitable for professional use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions. - Page 6 c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on.
- Page 7 NOTE The temperature 130 °C can be replaced by the temperature 265 °F. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
- Page 8 Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as follows: Carefully wipe the liquid off using a cloth. Avoid skin contact. In case of skin or eye contact, follow the instructions below: ...
- Page 9 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. CAUTION: Do not recharge non-rechargeable batteries. 2.5 SYMBOLS Conforms to relevant safety standards. To reduce the risk of injury, the user must read and understand this manual before using this product.
-
Page 10: Your Product
3. YOUR PRODUCT 1.Cordless impact drill / driver 9.Switch for direction of rotation 2.Handle 10.LED work light 3.Belt clip 11.On/off switch (with rotation speed adjustment) 4.Storage box 12.Batteries (2Ah, 4Ah) 5.Quick chuck 13.Battery capacity indicator 6.Torque adjusting ring 14.Load 7.Function adjustment ring 15.Load indicator 8.Speed switch... -
Page 11: Operating And Display Elements
4. OPERATING AND DISPLAY ELEMENTS 4.1 QUICK-RELEASE CHUCK The quick-release chuck allows insertion of accessories. 4.2 TORQUE ADJUSTMENT RING The torque adjustment ring adjusts the tightening torque on a scale from 1 to 21. 4.3 FUNCTION SETTING RING The function setting ring is used to select between the functions drill, screwdriver and impact drill. 4.4 SPEED SWITCH The speed switch allows switching between speed 1 and speed 2. - Page 12 6) Frequently monitor the charger and battery pack while connected. 7) Unplug the charger and disconnect it from the battery pack when finished. 8) Allow the battery pack to cool completely before using it. 9) Store the charger and battery pack indoors, out of reach of children. NOTE: If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart.
- Page 13 5.3 INSERT ACCESSORIES 1) Open the quick-release chuck by turning it in the + direction. Open the quick-release chuck just enough so that the accessory can be inserted without forcing. 2) Insert the accessory (drill bit) into the quick-tightening chuck. Make sure the accessory is inserted deep enough to provide sufficient power transmission.
-
Page 14: Cleaning And Maintenance
• Drill 1) Mark the desired location. 2) Insert a drill bit. 3) Put the battery in place. 4) Adjust the function setting ring. 5) Press the direction of rotation switch on the arrow pointing to the quick-release chuck. 6) Place the drill straight on the marking. 7) Lightly press the on/off switch to start the device. -
Page 15: Technical Details
13 mm keyless Chuck 2 Speed Gear train 0-500/0-1800 min No load speed 21+3 Positions Clutch EZPPB20V2B Input 220-240V~ 50-60Hz, 65W Charger type Output 21V d.c.,2.5A EZPPB20V2B 20V d.c. 2.0Ah Lithium-ion Battery type 20V d.c. 4.0Ah Lithium-ion approx. 60 min for 2Ah battery Charging time approx. -
Page 16: Disposal
BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that， Product:Cordless IMPACT Drill Trade mark: ENERGIZER Model: EZPPB20V2B Serial number: 20210356319-20210357318 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. -
Page 17: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 18: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 19: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
