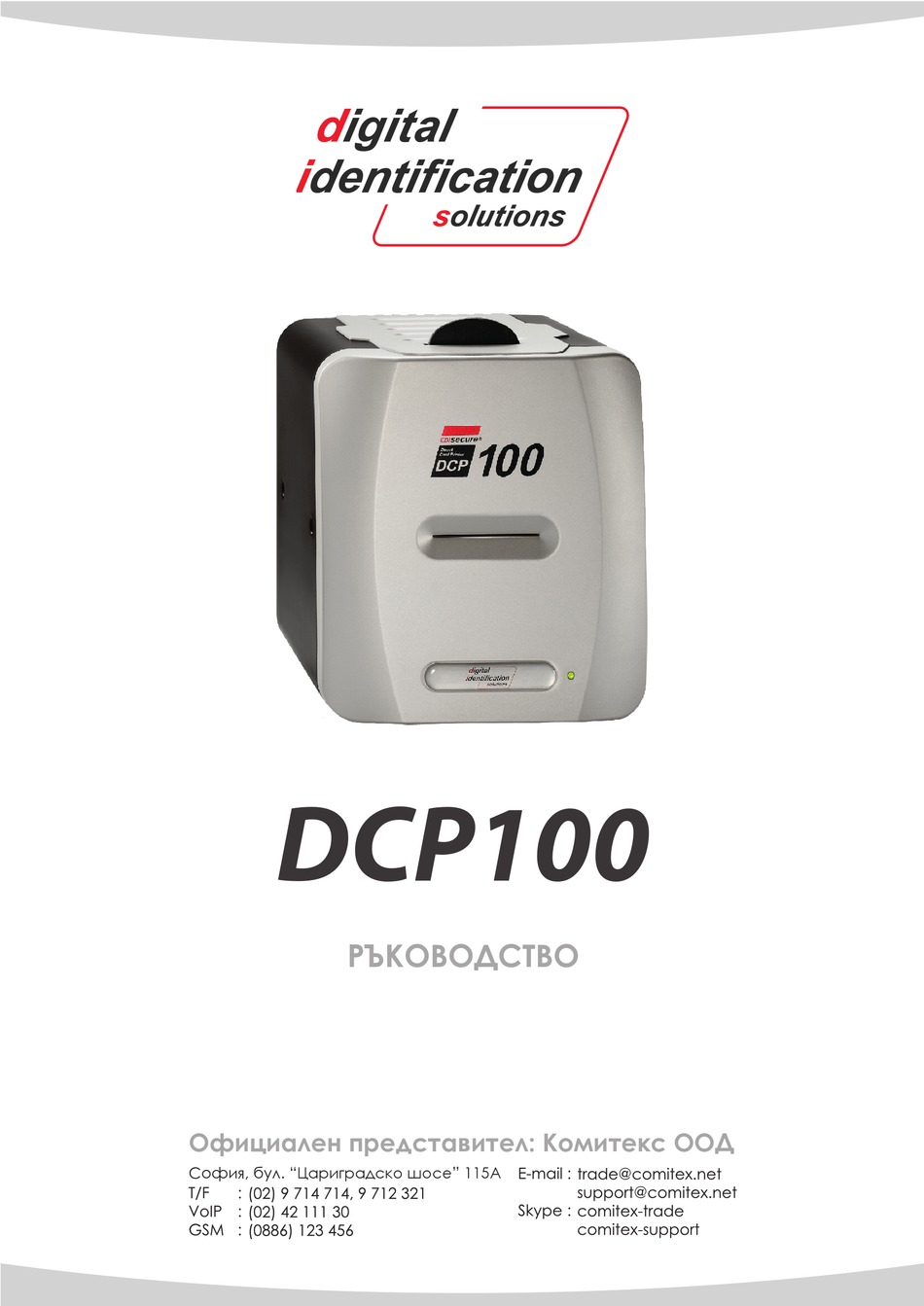

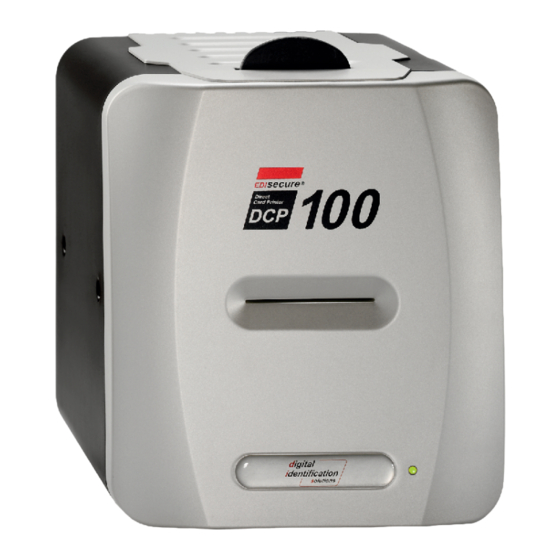

- Page 1 DCP100 ÐÚÊÎÂÎÄÑÒÂÎ Îôèöèàëåí ïðåäñòàâèòåë: Êîìèòåêñ ÎÎÄ Ñîôèÿ, áóë. “Цариградско шосе” 115А...
-
Page 2: Table Of Contents
Digital Identification Solutions GmbH CONTENTS INTRODUCTION AND CONVENTIONS SECTION 1 INTRODUCTION TO THE EDISECURE DCP100 / Section 1-1 The EDIsecure Printing Process Section 1-2 EDIsecure DCP100 Key Features Section 1-3 EDIsecure DCP100 Specification Section 1-4 Description of Operation Section 1-5... -
Page 3: Introduction To The Edisecure Dcp100
INTRODUCTION TO THE EDISECURE DCP100 Section 1.1 The Printing Process The EDIsecure DCP100 printers use Dye Diffusion Thermal Transfer Technology to print high quality colour images and text directly onto CR80 Gloss PVC Cards. This is often also called direct surface printing. -
Page 4: Edisecure Dcp100 Specification
300 dpi (11.8 dots/mm) Card Size ISO standard CR-80 Card Thickness 0.015” to 0.63” (0.38mm to 1.6mm) Card Material EDIsecure PVC or PVC/Polyester sandwich with PVC surface for dye sub-printing Card Capacity Single card Hand fed Print Length Full Bleed 1000 pixels (86.9mm) -
Page 5: Description Of Operation
Description of Operation The print process was explained in Section 1-1 of this manual, this section aims to explain how the DCP100 printers actually carry out the print operation. Preparing to Print When power is applied to the printer it enters a set up and check cycle, this can be split into 4 phases. -
Page 6: Component Location
Digital Identification Solutions GmbH Section 1.5 Component Location Front View card feed slot DC power socket status LED Test button USB port Front View Rear View Internal View Printhead adjust screw Printhead Element Dyefilm Cassette EDIsecure DCP100 Service Manual... - Page 7 Digital Identification Solutions GmbH Section 1.5 Component Location Front View Слот-ръчно подаване на карта Конектор захранване Статус Тест бутон USB конектор Изглед отпред Изглед отзад Вътрешен изглед Печатаща глава Касета с лента EDIsecure DCP100 Service Manual...
-
Page 8: Dye Film Options
YMCKO - five panel film - Yellow, Magenta, Cyan, Resin Black and clear Overcoat. Full colour, 100 images per roll. Generally used to print colour images and black text / barcodes. Note: This film is for DCP100 use only. • K - Monochrome Resin Black, no Overcoat, 500 images per roll. -
Page 9: Card Specification
Completely flat. Printable Area of the Card: The DCP100 printers offer high quality edge to edge (full bleed) printing. Thus the whole upper surface of the card may be utilised by the customer. Maximum Page Size - 1000 pixels (85.6mm) x 624 pixels (54mm) For full bleed printing guillotined cards are recommended, as pressed or stamped PVC cards have edge roll off which can cause a white line around the edge of the card. -
Page 10: Service Requirements
The Thermal Printhead Field Repair: We have taken every precaution in the design and manufacture of the DCP100 range of printers, and user problems should be rare. Nevertheless we have tried to anticipate any possible problems occurring in the field due to misuse, accidental failure or component failure. -
Page 11: Using The Cleaning Card
SECTION 3 CLEANING INSTRUCTIONS For a long life and reliable operation, we recommend that your DCP100 printer be cleaned For a long life and reliable operation, we recommend that your DCP100 printer be cleaned every time you replace the dye film cassette. A cleaning kit can be purchased for this and every time you replace the dye film cassette.
