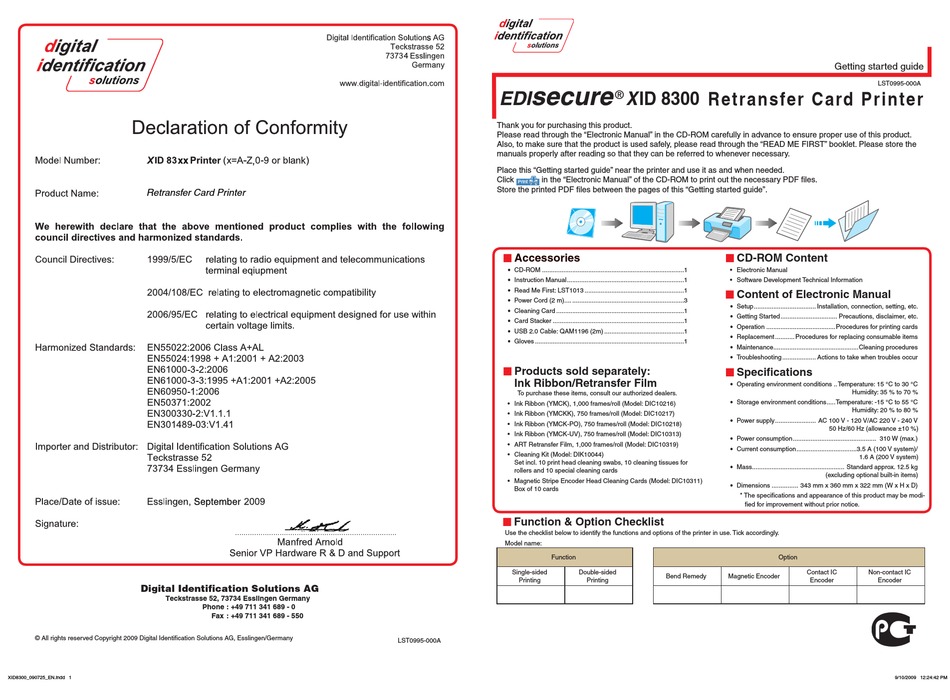

EDISecure XID 8300 Getting Started Manual

Retransfer Card Printer
Digital Identification Solutions AG
Teckstrasse 52, 73734 Esslingen Germany
Phone : +49 711 341 689 - 0
Fax : +49 711 341 689 - 550
© All rights reserved Copyright 2009 Digital Identification Solutions AG, Esslingen/Germany
Thank you for purchasing this product.
Please read through the "Electronic Manual" in the CD-ROM carefully in advance to ensure proper use of this product.
Also, to make sure that the product is used safely, please read through the "READ ME FIRST" booklet. Please store the
manuals properly after reading so that they can be referred to whenever necessary.
Place this "Getting started guide" near the printer and use it as and when needed.
Click in the "Electronic Manual" of the CD-ROM to print out the necessary PDF files.
Print
Store the printed PDF files between the pages of this "Getting started guide".

Accessories

o
CD-ROM ................................................................................1
0
Instruction Manual ..................................................................1
0
0 Read Me First: LST1013 ........................................................1
Power Cord (2 m).... ...............................................................3
0
Cleaning Card ........................................................................1
0
Card Stacker ..........................................................................1
0
0 USB 2.0 Cable: QAM1196 (2m) .............................................1
Gloves ....................................................................................1
0
Products sold separately:
o
Ink Ribbon/Retransfer Film
To purchase these items, consult our authorized dealers.
• Ink Ribbon (YMCK), 1,000 frames/roll (Model: DIC10216)
• Ink Ribbon (YMCKK), 750 frames/roll (Model: DIC10217)
• Ink Ribbon (YMCK-PO), 750 frames/roll (Model: DIC10218)
• Ink Ribbon (YMCK-UV), 750 frames/roll (Model: DIC10313)
• ART Retransfer Film, 1,000 frames/roll (Model: DIC10319)
• Cleaning Kit (Model: DIK10044)
Set incl. 10 print head cleaning swabs, 10 cleaning tissues for
rollers and 10 special cleaning cards
• Magnetic Stripe Encoder Head Cleaning Cards (Model: DIC10311)
Box of 10 cards
Function & Option Checklist
o
Use the checklist below to identify the functions and options of the printer in use. Tick accordingly.
Model name:
Function
Single-sided
Printing
LST0995-000A
XID 8300 Retransfer Card Printer

CD-ROM Content

o
• Electronic Manual
• Software Development Technical Information

Content of Electronic Manual

o
Setup ................................... Installation, connection, setting, etc.
0
Getting Started ................................ Precautions, disclaimer, etc.
0
Operation .......................................Procedures for printing cards
0
Replacement ........... Procedures for replacing consumable items
0
0 Maintenance ................................................Cleaning procedures
Troubleshooting ................... Actions to take when troubles occur
0

Specifications

o
Operating environment conditions ..Temperature: 15 °C to 30 °C
0
0 Storage environment conditions .....Temperature: -15 °C to 55 °C
Power supply ....................... AC 100 V - 120 V/AC 220 V - 240 V
0
Power consumption ............................................... 310 W (max.)
0
Current consumption ..................................3.5 A (100 V system)/
0
0 Mass .................................................... Standard approx. 12.5 kg
Dimensions ............... 343 mm x 360 mm x 322 mm (W x H x D)
0
* The specifications and appearance of this product may be modi-
fied for improvement without prior notice.
Double-sided
Bend Remedy Magnetic Encoder
Printing
Getting started guide
LST0995-000A
Humidity: 35 % to 70 %
Humidity: 20 % to 80 %
50 Hz/60 Hz (allowance ±10 %)
1.6 A (200 V system)
(excluding optional built-in items)
Option
Contact IC Non-contact IC
Encoder Encoder
