CAUTION: Read all instructions carefully before installation.
Save this Installation Manual for future reference.

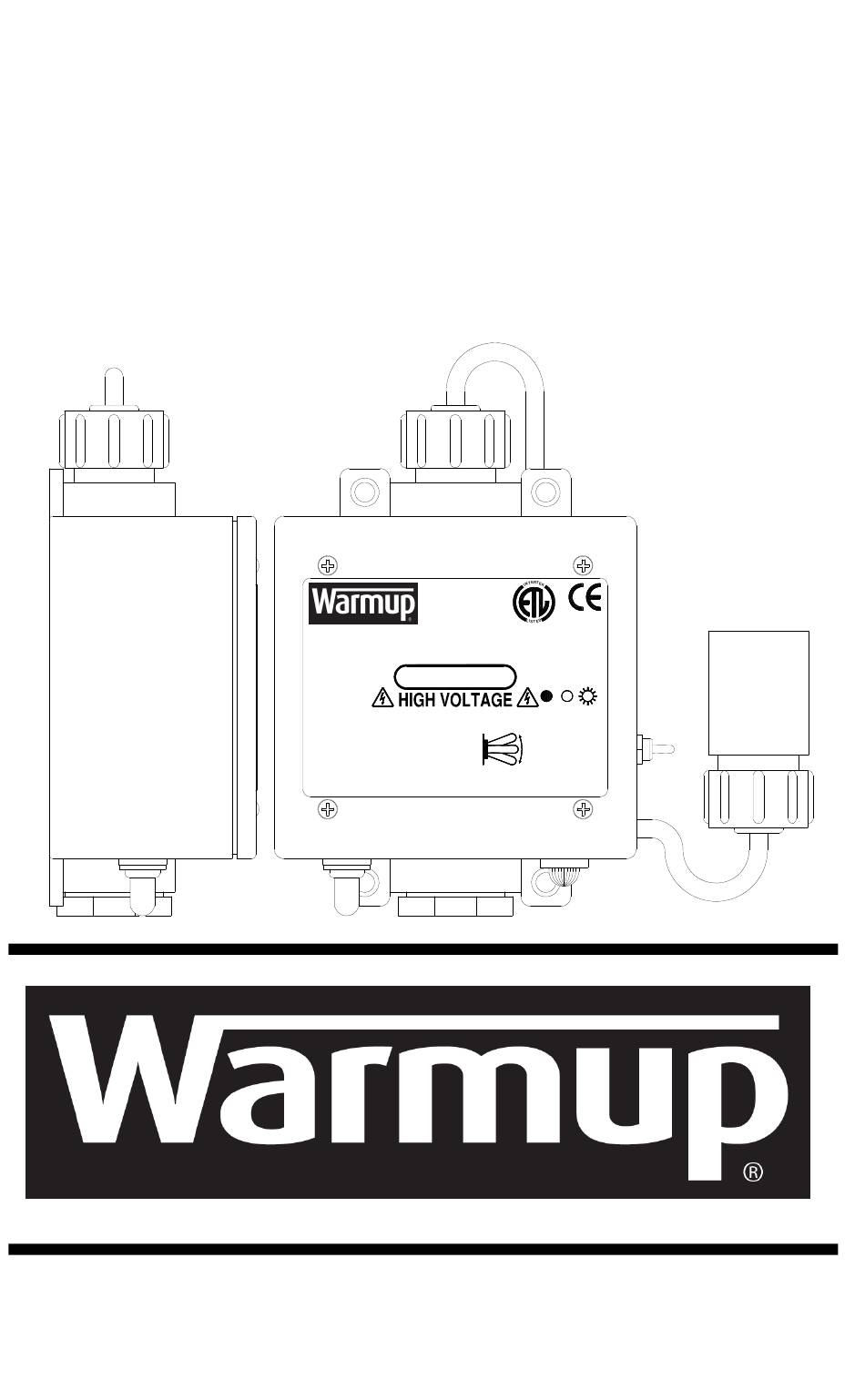

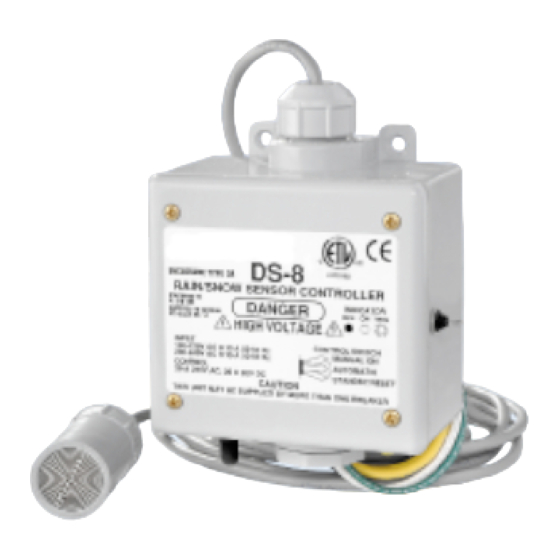

RAIN/SNOW SENSOR CONTROLLER
DS-8
INSTALLATION MANUAL
ENCLOSURE TYPE 3R
RAIN/SNOW SENSOR CONTROLLER
CONFORMS TO
DANGER
UL STD 508
CERTIFIED TO CAN/CSA
STD C22.2 NO. 14
INPUT
100−120V AC 0.15 A 50/60 Hz
200−240V AC 0.15 A 50/60 Hz
CONTROL
30 A 240V AC, 20 A 30V DC
THIS UNIT MAY BE SUPPLIED BY MORE THAN ONE BREAKER
CM
C
US
DS−8
3175102
INDICATOR
OFF
ON
TRIG
CONTROL SWITCH
MANUAL ON
AUTOMATIC
STANDBY/RESET
CAUTION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Warmup DS-8
Summary of Contents for Warmup DS-8
- Page 1 CAUTION: Read all instructions carefully before installation. Save this Installation Manual for future reference. DS-8 RAIN/SNOW SENSOR CONTROLLER INSTALLATION MANUAL DS−8 3175102 ENCLOSURE TYPE 3R RAIN/SNOW SENSOR CONTROLLER CONFORMS TO DANGER INDICATOR UL STD 508 TRIG CERTIFIED TO CAN/CSA STD C22.2 NO. 14...
- Page 2 DELAY ADJUST Setting the Adjustments The DS-8 is specifically designed for snow and freezing rain detection only. This section explains the functions of the adjustments. Trigger temperature is adjustable from 34°F (1.1°C) - 44°F (6.6°C) using the temperature adjust (TEMP) control. When ambient air temperature is below this trigger point precipitation is assumed to be snow or freezing rain.
- Page 3 The DS-8 can be mounted by screwing the conduit hub onto an appropriate size conduit or by using the mounting holes in each corner of the enclosure. DO NOT DRILL HOLES THROUGH THE ENCLOSURE FOR MOUNTING! This can allow water into the enclosure causing a potential shock or fire hazard.
- Page 4 240VAC for heating wire. The following diagrams show some possible wiring schemes for connecting the DS-8 to your load. Your load may be a direct connection to a heater, a contactor, or a control voltage. For clarity the safety GROUND leads are not shown.
- Page 5 240VAC In, Thermostat-Style for Boiler/Pump Control (Strap DS-8 for 240VAC Power) These are just some of the possible wiring schemes that can be used to connect the DS-8 to your load for control. The DS-8 should always be strapped for the voltage that is connected to Line/L1 and Neu/L2.
- Page 6 Power & Activation Indicator A yellow lamp is mounted on the base of the DS-8 to indicate operational status. If this lamp is OFF the DS-8 is not receiving power. If this lamp is steady ON the DS-8 is powered but not triggered. If this lamp is FLASHING the DS-8 is both powered on and has activated the deicing system.
- Page 7 Preseason Testing It is always a good idea to test the operation of the DS-8 prior to the winter season. Procure some clean water and, if the outdoor temperature is above the trigger point, a can of spray component cooler (Radio Shack Part #64-4321 or equivalent.) Clean the moisture grid following the procedure...
- Page 8 Within the limitations of this warranty, inoperative units should be returned, freight prepaid, to Warmup, and we will repair or replace, at our option, at no charge to you with return freight paid by Warmup. It is agreed that such repair or replacement is the exclusive remedy available from Warmup and that Warmup IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGE.
