PRODUCT CODE
USETO3
PRODUCT DESCRIPTION
The USETO3 is a controller designed for high weather resistance, IP66 / NEMA
4X. It is simple to set up and even simpler to use. It is for wall mounting, and
can be placed outdoors
TERMINAL CONNECTIONS
1- Power Supply
North America: 3~ 120/208 VAC, 3~277/480 VAC, ~ 120/240 VAC ±10%, 60 Hz
2- Load/heating cable
North America
3 x 8310W at 3~ 277/480 VAC, 3 x 30A
3 x 3600W at 3~ 120/208 VAC, 3 x 30A
3600W at ~ 120 VAC, 30A
7200W at ~ 240 VAC, 30A
Sensor Connections
3-
Terminal Connections USETOG, USETOP-R, USETF
WARMUP INC.
USA: us@warmup.com
Tel.: 1-888-927-6333
www.warmup.com

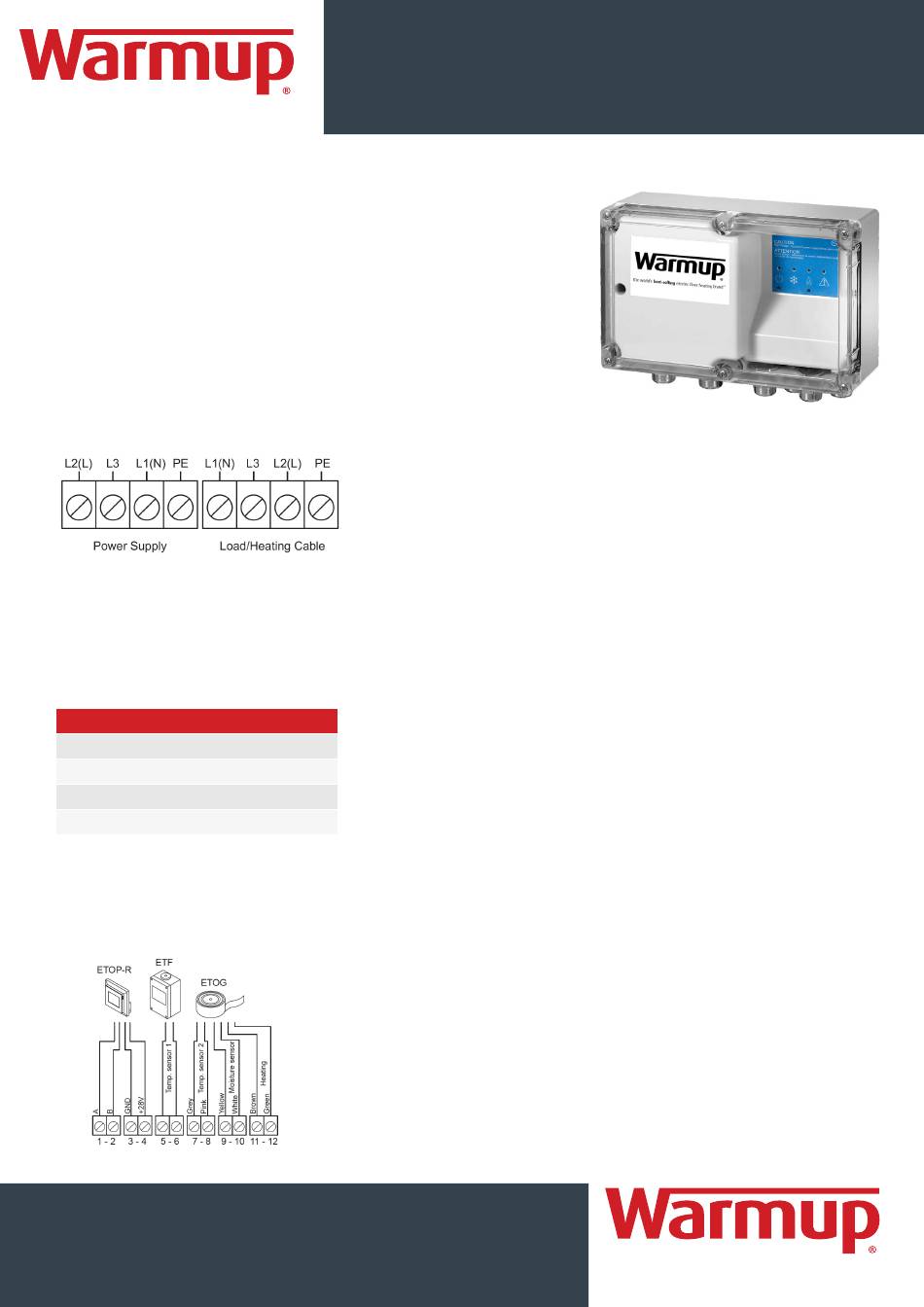

USETO3 - WEATHER RESISTANT SMART CONTROLLER
FOR SNOW & ICE MELT - INSTALLATION MANUAL
™
Connect the power supply and load wires to the terminals
depending on the type of net you have present, eg. three-
wire or phase to neutral system.
Connect the wires for the sensors and the remote control panel to the
terminals, depending on the type of sensors required in the system.
CANADA: ca@warmup.com
Tel.: 1-888-592-7687
www.warmup.ca
